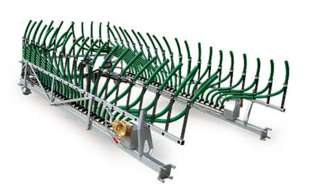

Garant Dribble Bar System
Sitting at the middle to upper end of the efficiency scale, Fliegl's Garant dribble bar system combines their patented 'screw' auger within a boom of a chosen width and hoses hung to a near ground level to strip feed slurry onto the soil surface.
A simple folding design eliminates kinking and twisting of hoses during use with other standard features including slope compensation, overpressure protection and mechanical trap boxes.
Slope compensation of up to 7° for optimal ground compensation | ||
Integrated overload protection at boom ends | ||

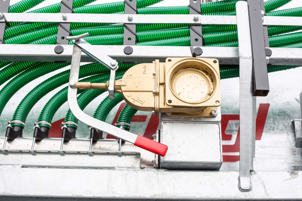

Mechanically opening trap boxes | ||
A special folding mechanism and layout to enable short hose lengths, preventing kinks and reducing cracking + maintenance costs | ||

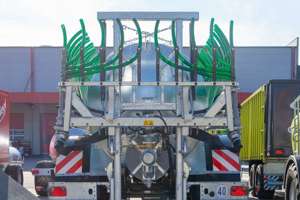

Compact transport width of 2.3m at the top and 2.6m at the bottom |
Technical Data:
|
Garant 60 |
Garant 75 |
Garant 90 |
Garant 120 |
SKATE 150 |
Garant 180 |
Working Width |
6m |
7.5m |
9m |
12m |
15m |
18m |
Number of Outlets |
24 |
30 |
36 |
48 |
60 |
72 |
Net Weight |
660kg |
790kg |
1100kg |
1300kg |
1550kg |
1850kg |
Transport Width (Top/Bottom) |
2300/ 2600 |
2300/ 2600 |
2300/ 2600 |
2300/ 2600 |
2300/ 2600 |
2300/ 2600 |
Booms Ends Hyd. Folding |
- |
- |
- |
- |
15m mechanically folding to 12m optional |
18m mechanically folding to 15m optional |
