ASW 271 - Gigant

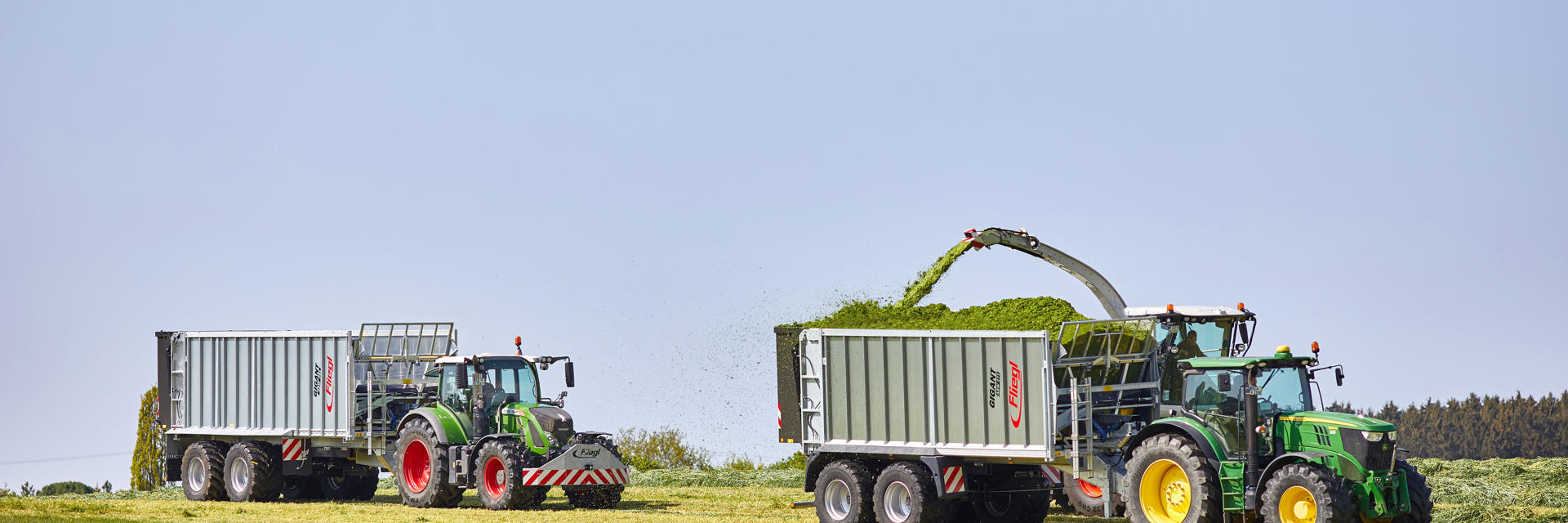

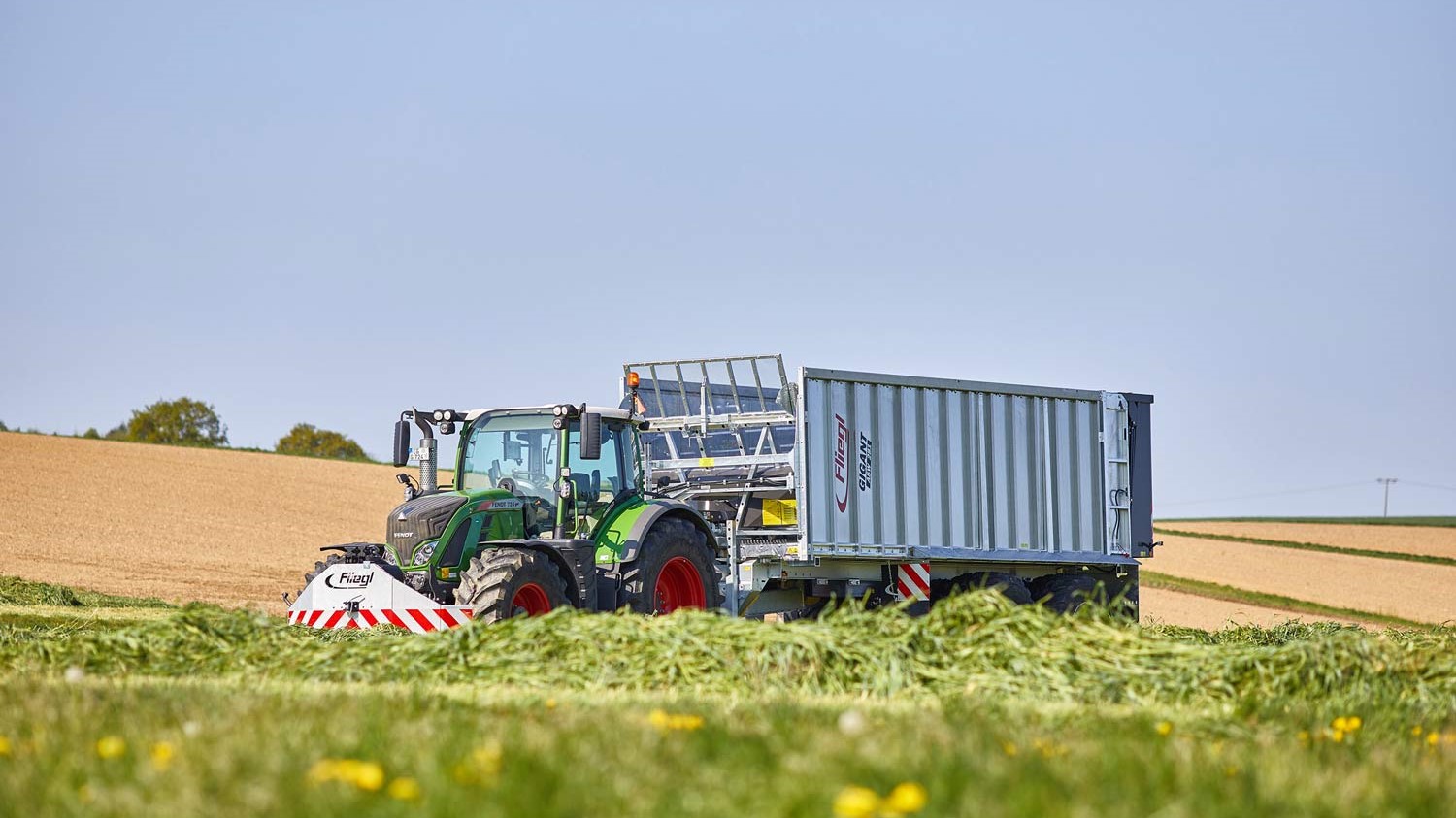

The Gigant Push-Off trailer is the universal workhorse of Fliegl's Push-Off range, capable of being mounted with many attachments for year-round use and versatility. Pre-configured with heavy-duty upgrades for the NZ market, this trailer is a safe, stable and a flexible transport option for silage, root crops, grain, gravel, manure, soil and woodchips.
The double acting two-stage hydraulic system has a very low oil requirement with no telescopic cylinders being used. With minimal moving parts, the Push-Off system is extremely robust in comparison to chain and walking-floor systems.
Key Features
- Tandem chassis
- Permitted total weight capacity of 20,000kg, equivalent to 18,000kg axle load & 2,000kg drawbar load
- Hydraulic drawbar suspension, bottom hitch
- 50mm Ø pivoting tow eye
- Mechanical support foot
- Hydraulic single-line brake without load adjustment valve
- Trailed steering: front axle rigid, rear axle trailed & hydraulically lockable. Max. speed of 60km/h
- Axle type: BPW 410 x 120 brake drums
- Tyres 560/60 R22.5 max. load per wheel 6300kg at 40km/h
- Gigant Plus parabolic suspension assembly
- 40 km/h version for export
- Floor 6300mm x 2380mm
- Hydraulic 800mm depth tail door with 420mm x 250mm grain slider (total length 7100mm)
- Tail door and side walls 2000mm high, with front wall extension
- Hydraulic sliding floor with all-round polyurethane strips, optimal sealing & hose guide
- Fixed underride guard
- Mudguards and side marker lights

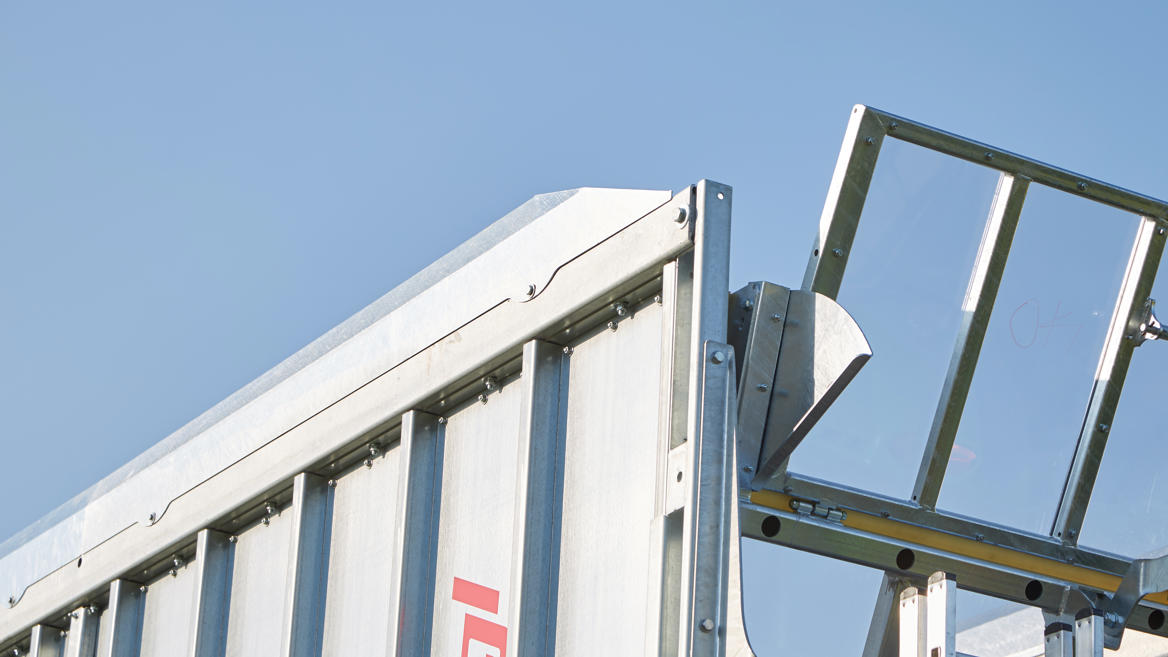

- 300mm aluminum side wall extensions
- LED lighting 12V with 7-pin connector
-
Standard
- Galvanised tandem chassis
- Drawbar with hydraulic suspension, bottom hitch
- Hydraulic single-line brake, without load adjustment valve
- 2 brake axles BPW 410 X 120
- Trailing axle: front axle rigid, rear axle hydraulically lockable max. speed of 60km/h
- Mechanical support foot
- Gigant Plus parabolic suspension
- Mechanically shifting axle assembly
- 50mm Ø pivoting tow eye
Optional
- K80 ball hitch
Optional For Indent Orders
- 2-circuit compressed air system with ALB
- 2-circuit compressed air system with ALB and hydraulic brake as well as flat-sealing sleeve
- Hydraulic support foot
- Axle assembly, hydraulically adjustable
- Forced steering: front rigid, rear steered via hydraulic control and K50 attachment
- 2 brake axles BPW 410 X 180 brake drums
- Air suspension
- Lubrication block on 2 lubrication points for tandem chassis
- PTO through drive with ratchet clutch and hydraulic lines for rear attachment
-
Standard
- Floor 6300 mm x 2380 mm
- Hydraulic high-capacity 800mm tail door with grain slider (420 x 250mm)
- Total body length 7100mm
- Rear panel and side panels 2000mm high, with front wall extension

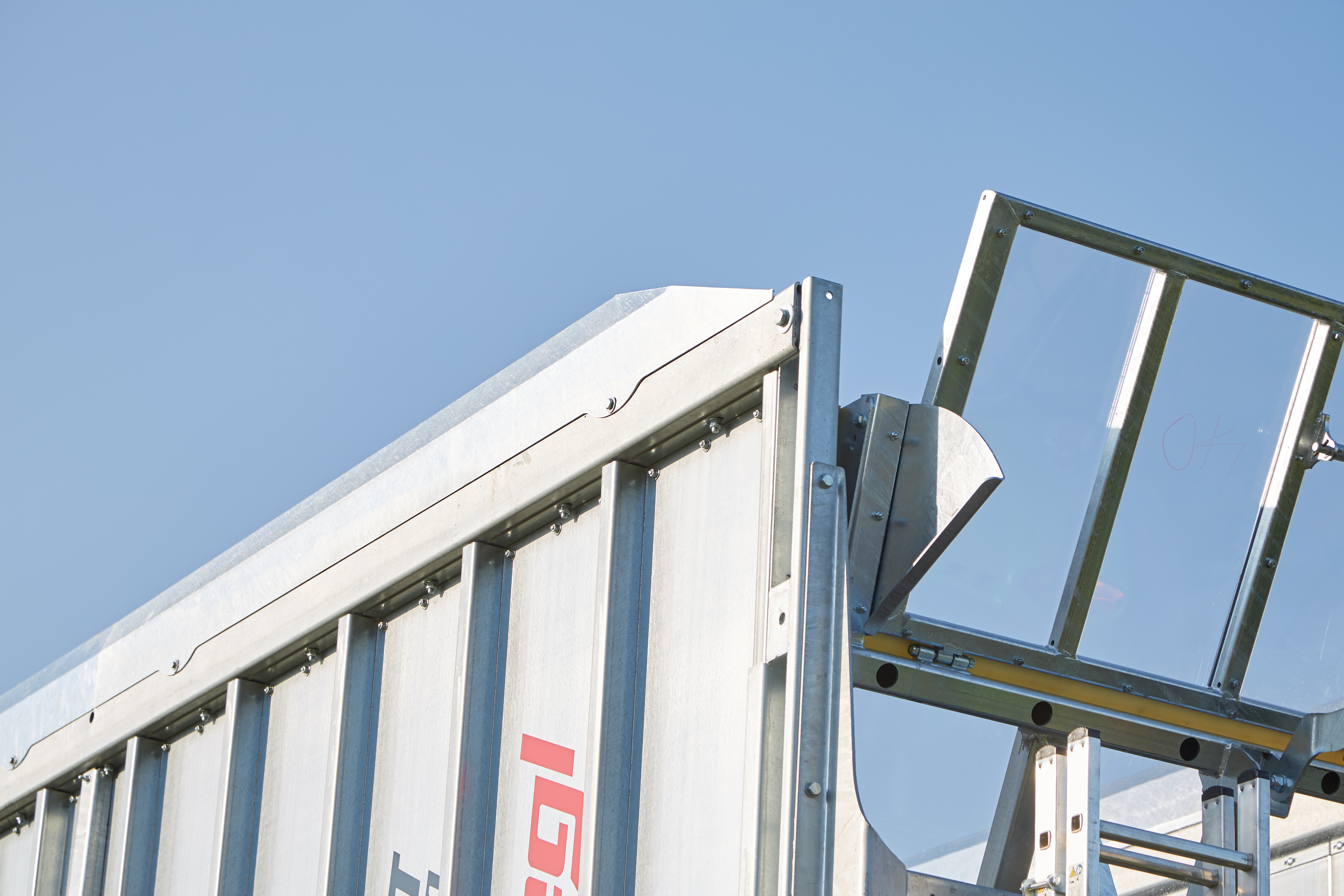

- Side wall panels galvanised & interlocked
- 300mm aluminum side wall extensions
- Hydraulic sliding floor with circumferential polyurethane strips, optimal sealing, hose guide
Optional for Indent Orders
- Left or right side mechanically folding 500mm (not possible with sliding tarps, rolling net or folding roof)
- Extendable ladder mounted on front
- Pressure valve for improved compression
- Side panels and tailgate 2300mm high, with front grate extension
-
Standard
- Tyres 560/60 R22.5 max. load per wheel 6300kg at 40km/h
Optional For Indent Orders
- Tyres 650/50 R22.5 max. load per wheel 7070kg at 40km/h
- Tyres 650/55 R26.5 max. load per wheel 7900kg at 40km/h
- Tyres 710/45 R22.5 max. load per wheel 6300kg at 40km/h
- Tyres 710/50 R26.5 max. load per wheel 6000kg at 60km/h
-
Standard
- LED lighting 12V 7-pin connector
- Mudguards
- Side marker lights
- Fixed underride guard
Optional For Indent Orders
- Mechanical folding underride guard
- Hydraulically folding underride guard
- Reversing camera
- Monitoring camera
- Side marking lights
- Clearance lights
- Spot lights
- Beacon light
- LED working lights
