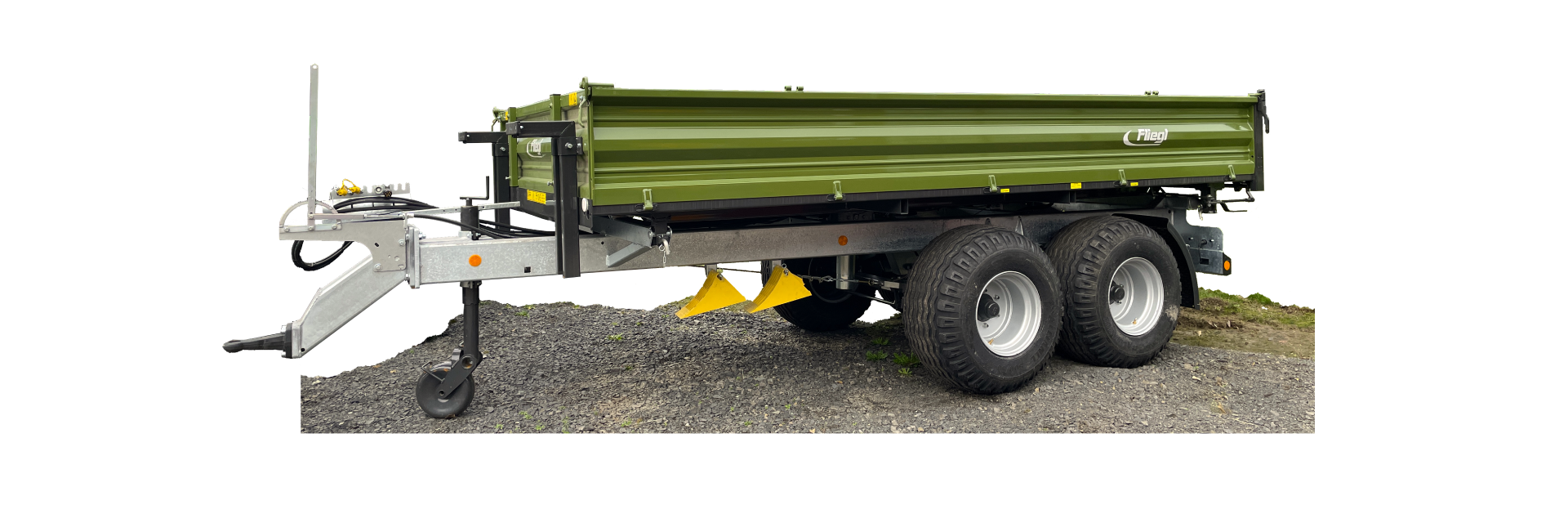

TDK 100
Fliegl tandem-axle three-way tippers are an excellent choice when it comes to a handy and robust trailer for tackling a range of jobs around the farm.
The TDK100 in particular has been designed with extra features unique to the New Zealand market, including a hydraulic tail door release and side panel support arms for transporting bales.

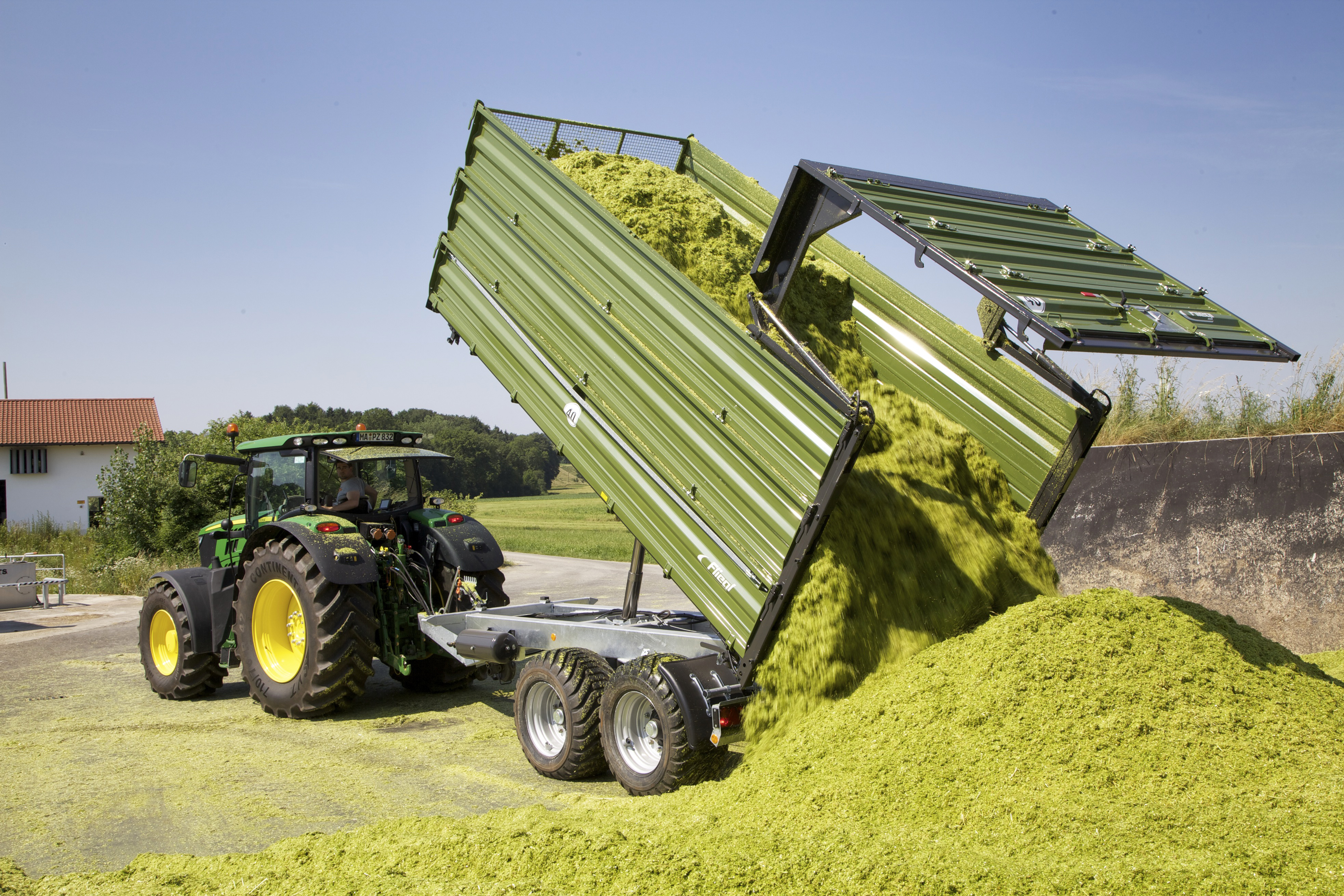

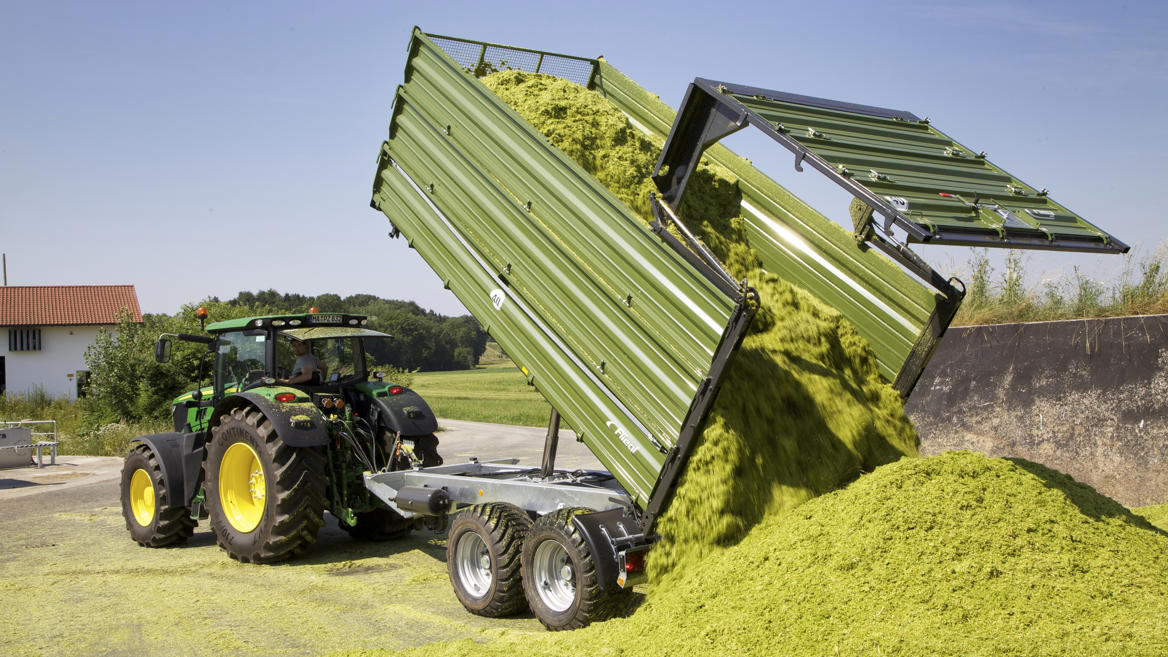

Tandem three-way tippers boast outstanding stability during transport of many loads type due to their large axle track, low platform height and tandem chassis. A tipping angle of up to 55° allows for clean and complete emptying of all bulk materials. The galvanised hollow section frame ensures torsional rigidity.
Key Features
- Tandem-axle chassis
- Permitted total weight 10,000kg, drawbar load 2000kg
- 40mm DIN tow eye
- Galvanised V-framed chassis
- 1 hydraulic brake axle & 1 running axle, track width 1750mm
- Parabolic titan suspension assembly
- 500/50-17 Tyres, max. load per wheel 3250kg at 40km/h
- 4500mm x 2200mm steel bridge, coated dark grey
- Plug-in corner stanchions at the rear
- 4500mm x 2200mm x 500mm base side body panels, dark green
- Rear central locking system with hydraulic release
- Heavy-duty support jockey wheel, folding
- 25km/h export version
- 4-stage tipping cylinder 1700mm lift with limit switch
- Lighting 12V with impact-resistant glass
- Stop valve
- Extendible support arms left & right sides
-
Standard
- Tandem V-frame chassis, galvanised
- Permitted total weight 10,000 kg
- Titan parabolic suspension
- 1 hydraulic brake axle & 1 running axle, track width 1750mm
- 4-stage tipping cylinder 1700mm lift with limit switch
- Stop valve
Optional For Indent Orders:
- 2-circuit compressed air brake system with ALB
- Support jack, hydraulic
-
Standard
- 4500mm x 2200mm steel bridge, coated dark grey
- Plug in stanchions at the rear
- 500mm height base side panels, coated dark green
- Rear central locking system with hydraulic release
- Extendible side support arms left & right sides
Optional
- First body extension 500mm, dark green
Optional For Indent Orders:
- 2-circuit compressed air brake system with ALB
- Support jack, hydraulic

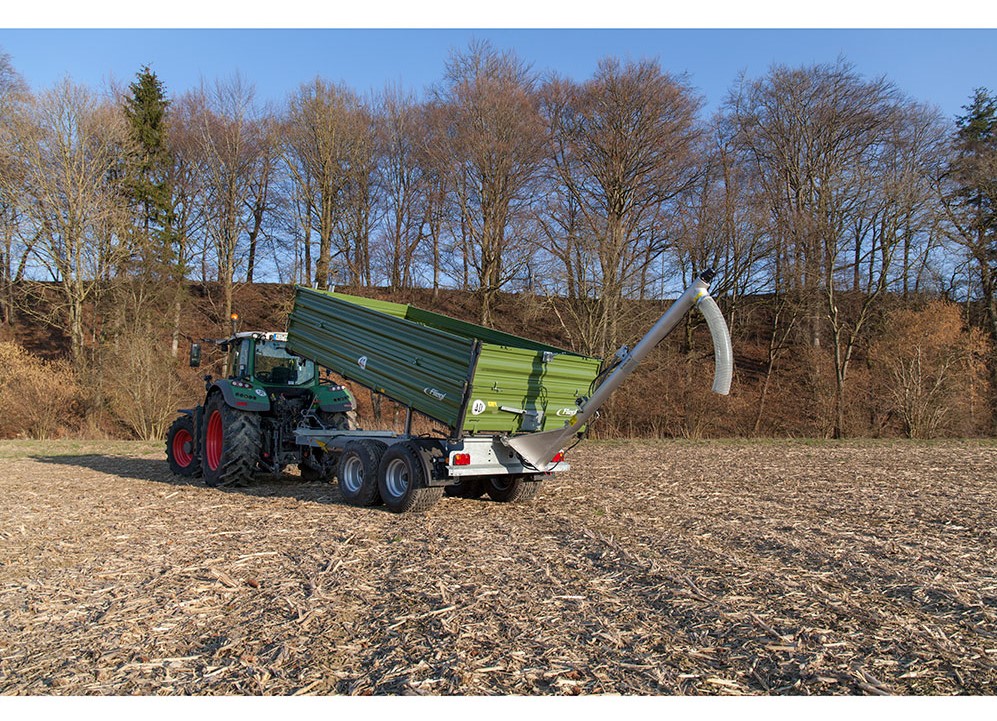

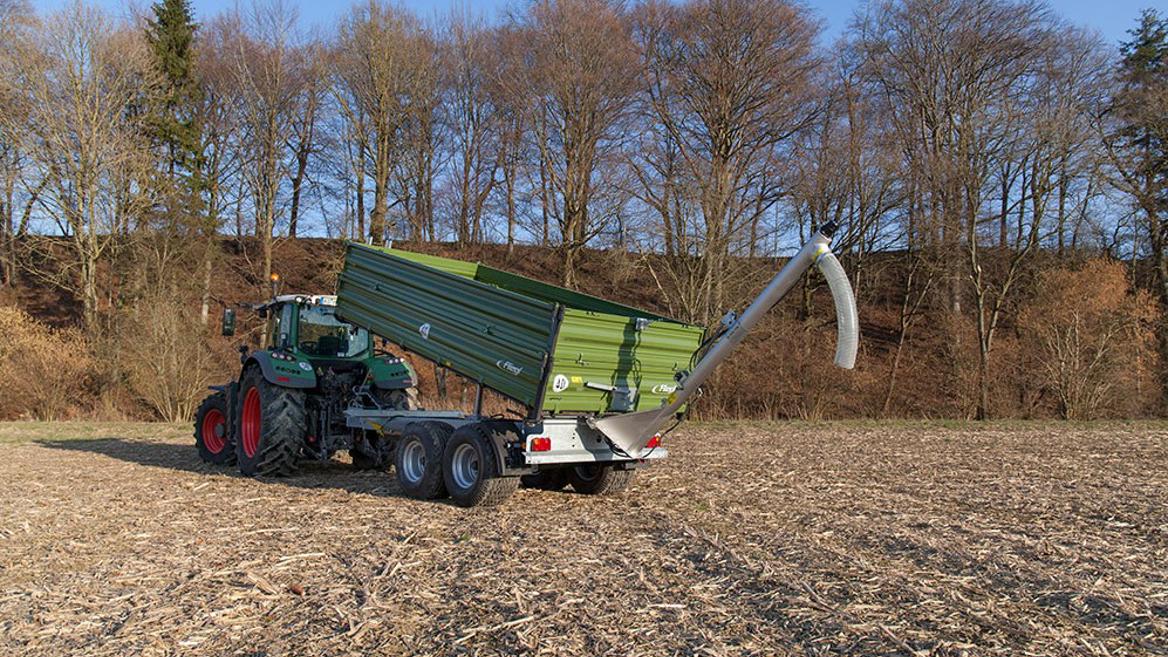

- Grain outlet 400x230mm
- Second body extension 500mm, for light goods only
- Hydraulic tailgate (only possible for 3 x 500mm extensions)
- Rolling tarp cover with landing
-
Standard
- 2 five-chamber lights 12V with 7-pin connector and impact-resistant glass
Optional For Indent Orders:
- Bridge support (secures the bridge during maintenance work)
-
Standard
- 500/50-17 Tyres, max. load per wheel 3250kg at 40km/h
Optional For Indent Orders
- Tyres 15/70-18 16 PR, max. load 3450kg at 40km/h
- Tyres 355/60 R18, max. load 3250kg at 40km/h
