• Fully galvanised steel tank of chosen volume
• Ball head K80 (Ø 80mm)
• Drawbar suspension incl. tank tipping cylinder and mechanical drop support jack
• Hydraulic single-line brake or compressed air brake system with ALB
• Unsprung, rigid single axle models
• Hydraulic suspension from tandem axle models onwards
• Trailing axle as standard from tandem axle models onwards
• Axle type: BPW 410 x 180 brake drums
• Tyres 750/60 R30.5, max. load per wheel 6740 kg at 40 km/h, spring centre: 900 mm
• 40 km/h version incl. mudguards, underride guard and side marker lights
• Wheel arch (less volume with wheel arch)
• 12,000 litre Hertell compressor max. 540 or 1000 rpm, heat-resistant
• 8" flange front center under the tank
• Blind flange 8" rear
• 6" suction slider with quick coupler, left
• Prepared for top-fill opening Ø=600 mm (in the front)
• Fill level indicator
• Siphon
• Foam separator
• Silencer with oil separator for compressor
• Hydraulic tapered rotary valve
• Hose holder (not possible in combination with drag shoe or dribble bar distributor)
• Continuous and robust angular frame
• 12V LED lighting with 7-pin connector
• 2-4 internal baffle plates (model dependent)
• 600mm rear access hatch
• PTO drive shaft, wide angle one side
• Brackets in preparation for distribution attachment (drag shoe, dribble bar or disc injection)

Equipment Upgrades

• Piton-Fix (Ø 50 mm)
• Pivoting drawbar eye (Ø 50 mm)
• Drawbar with swivelling eye (Ø 51 mm)
• Forced steering: rear or front + rear axles steered via K50 arms, dependent on tandem or triaxle model
• Electronic forced steering: rear or front + rear axles steered, only possible with bottom hitch (ISOBUS display and load sensing required)
• 13,500l Battioni vacuum compressor, max. 540 or 1000 rpm
• 14,000l Hertell vacuum compressor, max. 1000 rpm
• 16,000l Battioni vacuum compressor, max.1000 rpm
• 8" suction slider with quick coupler, left
• Hydraulic top-fill opening Ø=600mm with ladder on left/right
• Internal agitator (with air), including drain tap and hose on siphon
• Internal hydraulic agitator
• Hydraulic turbo-filler under the tank
• Lubrication block on 2 lubrication points for tandem chassis
• Four-point hydraulics: lifting force 4500 kg Cat. 3
• 8" suction nozzle, incl. compressor changeover and docking station, left/right in direction of travel

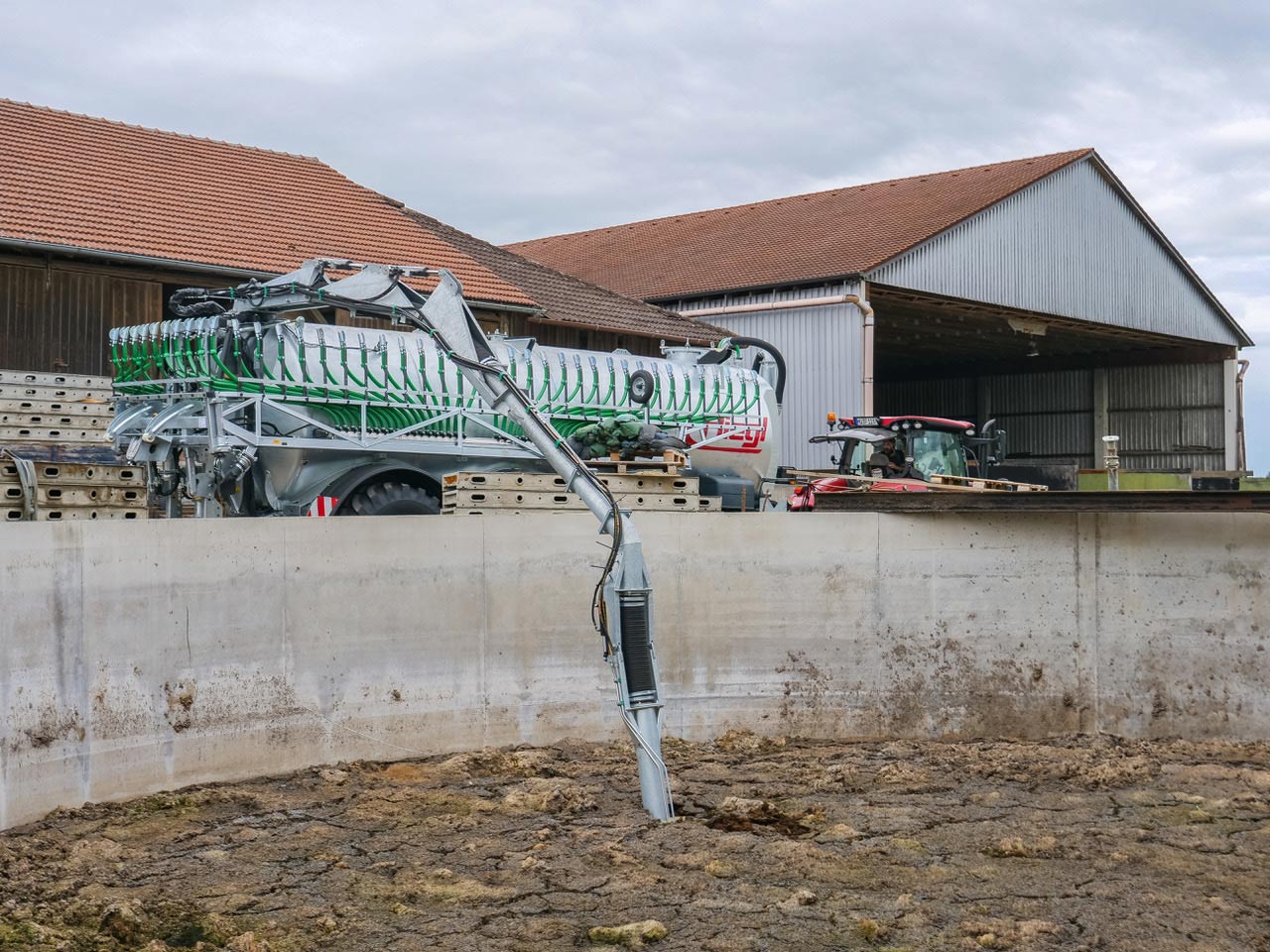

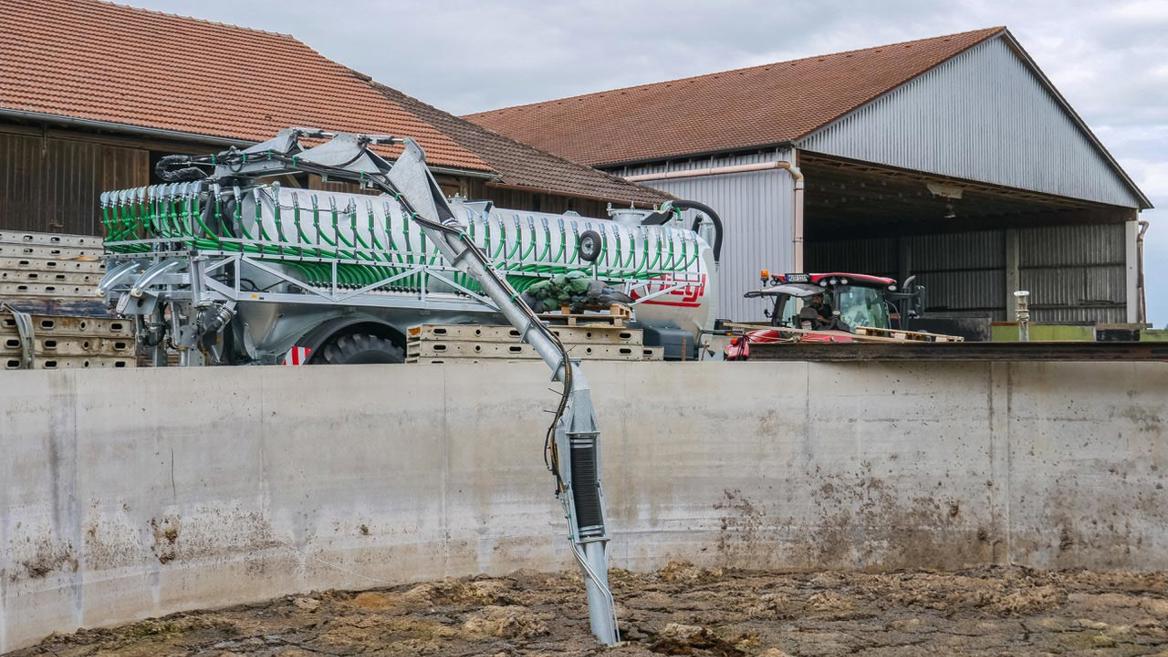

• Elephant suction arm on right in direction of travel Ø 200mm, length 5000mm, with 4-way control block, suction depth up to approx. 3m, incl. control panel with joystick control
• Hydraulic discharge accelerator fitted behind tank for slurry
• Hydraulic discharge accelerator with shredding cutter fitted behind tank for slurry
• Various pipe and hose length options
• 5-way or 6-way control block options with load sensing
• Tyre pressure control system

• Fully galvanised steel tank of chosen volume
• Ball head K80 (Ø 80mm)
• Drawbar suspension incl. tank tipping cylinder and mechanical drop support jack
• Hydraulic single-line brake or compressed air brake system with ALB
• Unsprung, rigid single axle models
• Hydraulic suspension from tandem axle models onwards
• Trailing axle as standard from tandem axle models onwards
• Axle type: BPW 410 x 180 brake drums
• Tyres 750/60 R30.5, max. load per wheel 6740 kg at 40 km/h, spring centre: 900 mm
• 40 km/h version incl. mudguards, underride guard and side marker lights
• Wheel arch (less volume with wheel arch)
• Armatec eccentric screw pump 4000l with stone trap
• 6" suction slider with quick coupler, left
• Fill level indicator
• Rear-mounted hydraulic slider
• Hydraulic tapered rotary valve
• Hose holder (not possible in combination with drag shoe or dribble bar distributor)
• Continuous and robust angular frame
• Pre-fitted for approx. 600 x 600mm sliding cover
• 12V LED lighting with 7-pin connector
• 2-4 internal baffle plates (model dependent)
• 600mm rear access hatch
• PTO drive shaft, wide angle one side
• Brackets in preparation for distribution attachment (drag shoe, dribble bar or disc injection)

Equipment Upgrades

• Piton-Fix (Ø 50 mm)
• Pivoting drawbar eye (Ø 50 mm)
• Drawbar with swivelling eye (Ø 51 mm)
• Forced steering: rear or front + rear axles steered via K50 arms, dependent on tandem or triaxle model
• Electronic forced steering: rear or front + rear axles steered, only possible with bottom hitch (ISOBUS display and load sensing required)
• Armatec eccentric screw pump 6000 l with stone trap
• Wangen eccentric screw pump 4000 l with stone trap, 6" quick coupler left
• Wangen eccentric screw pump 4000 l with stone trap, 6" quick coupler left
• Vogelsang VX186-260Q rotary piston pump 6000 litre, left in direction of travel, powered via angular gear, max. 750rpm (suction arm only possible on right), incl. stone trap (pump case required)
• 8" suction slider with quick coupler, left
• Sliding cover approx. 600 x 600mm hydraulic front incl. ladder and position display
• Lubrication block on 2 lubrication points for tandem chassis
• Shredding cutter, hydraulic, during suction (screw pump and pump case required)
• Pump case incl. stone trap and sight glass, for eccentric screw or rotary piston pumps
• Four-point hydraulics: lifting force 4500kg Cat. 3
• 8" suction nozzle with docking station, right/left in direction of travel, incl. pump case
• Suction arm, top front, Ø 200 mm, length 5000 mm, right and left swivel function (3 double-action control units and pump case required, possible only for steel tanks, not in combination with pneumatic pump changeover and Plexiglas fill level indicator)
• Various pipe and hose length options
• 5-way or 6-way control block options with load sensing
• Tyre pressure control system

• Digital flow meter ISOBUS. Shows m³/ha and m³/min. and the suggested driving speed to reach the specified m³/ha (tractor with ISOBUS and TECU as per AEF required)
• Preparation for MCS EVO NIR sensor incl. bracket (only in combination with ISOBUS digital flow meter or DMR flow rate control), without NIR sensor and without MCS controller
