ADS 100

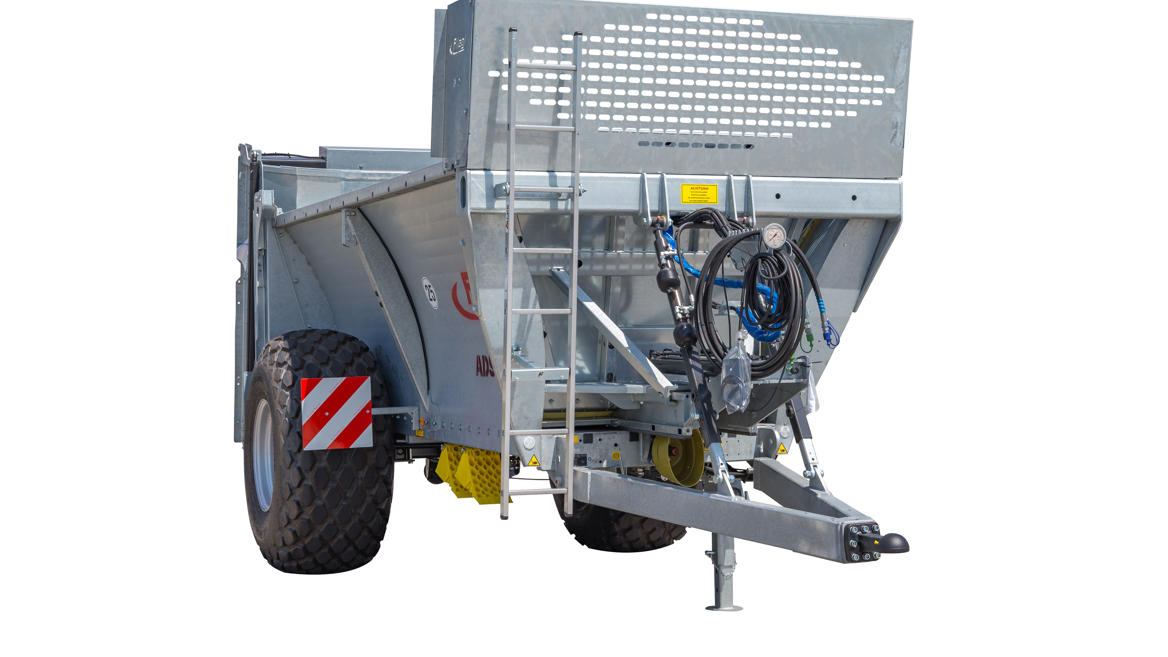

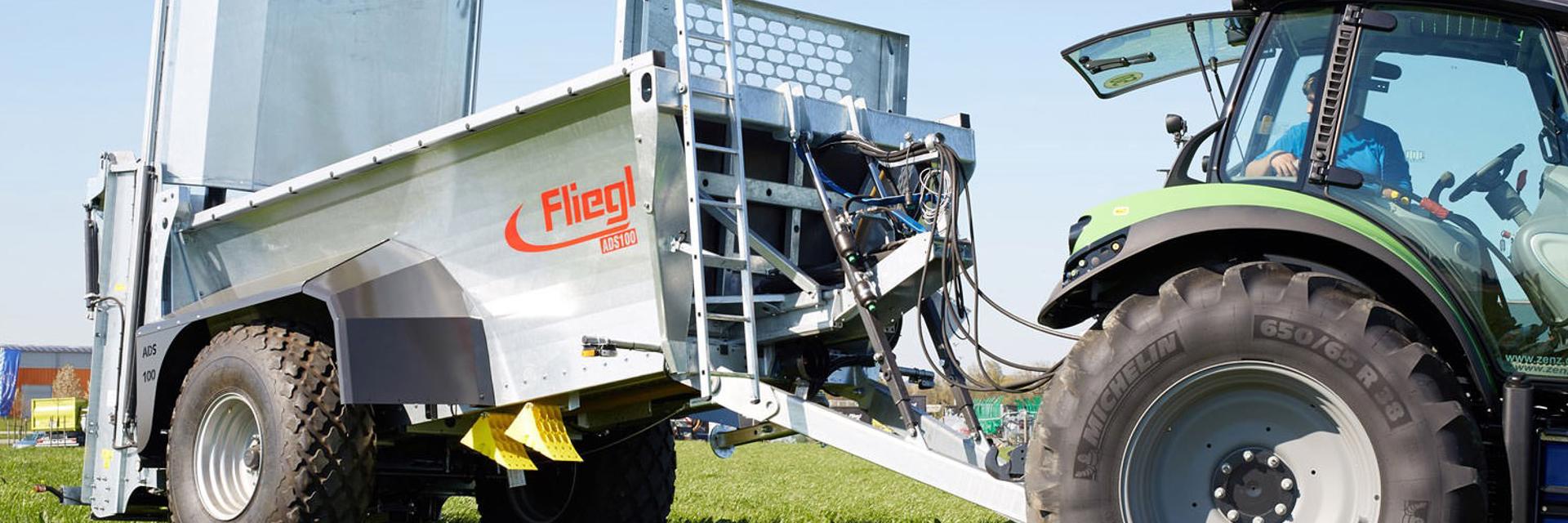

Fliegl's push-off system unloads cleanly every time and when combined with a rear-discharge spreading mechanism, results in a low-maintenance yet powerful muck spreader.

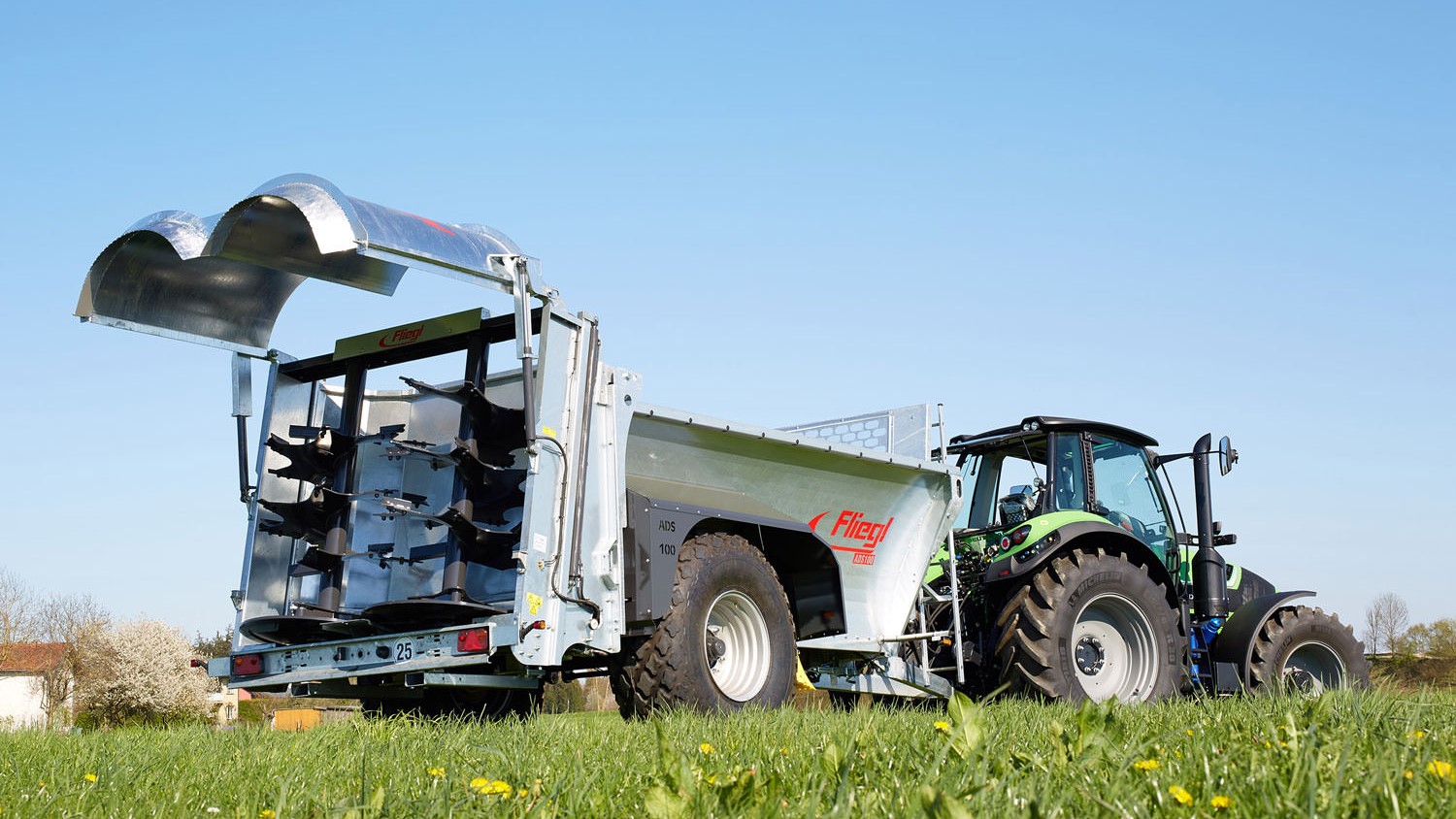

Spreading widths of up to approx. 12m are achievable, and the hydraulic drawbar suspension can be adjusted to control the spread pattern. The Profi V2n spreading mechanism features left, right and straight steel blades to shred and evenly distribute manure.  Pendulum slingers at the base of the vertical beaters also assist in maximizing the spread width.

1 / 6

Key Features

  • One-axle chassis
  • Permitted total weight 10,000kg, drawbar load 2,000kg
  • Hydraulically sprung drawbar, bottom hitch, easily adjustable to suit spreading requirements by approx. 400-600mm
  • 40mm Ø DIN tow eye
  • Hydraulic single-line brake without load adjustment valve
  • 25km/h version for export
  • Tyres 23.1 - 26 16 PR / load per wheel 5,000 kg at 25km/h, 4,375kg at 40km/h
  • Spreading trough 4500mm x 1300/2100mm x 1350mm
  • Spreader mechanism: Rollers 2K painted, housing and slider galvanised, 2 vertical rollers, slinger
  • Mechanical potentiometer
  • Hydraulic sliding floor with circumferential polyurethane strips, hose guide
  • Lighting 12V 7-pin connector
  • Wide-angle drive shaft with cam coupling

  • Standard

    • One-axle chassis
    • Permitted total weight 10,000kg, drawbar load 2,000kg
    • Hydraulically sprung drawbar, bottom hitch, easily adjustable by approx. 400-600mm to suit spreading requirements and adjust spread pattern
    • 40mm Ø DIN tow eye
    • Hydraulic single-line brake without load adjustment valve
    • 25km/h version for export
    • Spreading trough 4500mm length x 1300/2100mm trough width x 1350mm height, galvanised
    • Galvanised spreader trough and drawbar
    • Hydraulic sliding floor with circumferential polyurethane strips, hose guide
    • Lighting 12V with 7-pin connector
    • Front protective grate

    Optional

    • Ball head K80 (Ø 80 mm)



    Optional For Indent Orders

    • 2-circuit compressed air brake with ALB
    • Hydraulic high-capacity tail door 800mm with grain slider 400mm x 230mm and 12 Volt lighting
    • Front-mounted ladder
    • Plastic mudguards

  • Standard

    • Profi V2n spreader mechanism including galvanised frame & guillotine gate and 2 vertical beaters with slingers (painted), attachment height 1500mm
    • Mechanical potentiometer for control of push-off speed
    • Polyurethane sealing strips for guillotine gate
    • Wide-angle PTO with ratchet clutch

    Optional For Indent Orders

    • Electric potentiometer with in-cab control dial
    • I-SENS automatic torque monitoring
    • Wide-spreading rear panel hydraulic for V2n spreader mechanism
    • Edge spreading system left side (only in connection with wide-spreading tailgate)
    • Edge spreading system right side (only in connection with wide-spreading tailgate)

  • Standard

    • Tyres 23.1 - 26 16 PR / load per wheel 5,000 kg at 25km/h, 4,375kg at 40km/h

    Optional For Indent Orders

    • Tyres 650/55 R26.5 max. load per wheel approx. 7470kg at 40km/h
    • Tyres 710/50 R26.5 max. load per wheel approx. 6000kg at 65km/h
    • Tyres 750/45 R26.5 max. load per wheel approx. 6000kg at 65km/h
    • Tyres 650/65-R30.5 – load capacity per wheel approx. 7100kg at 40km/h
