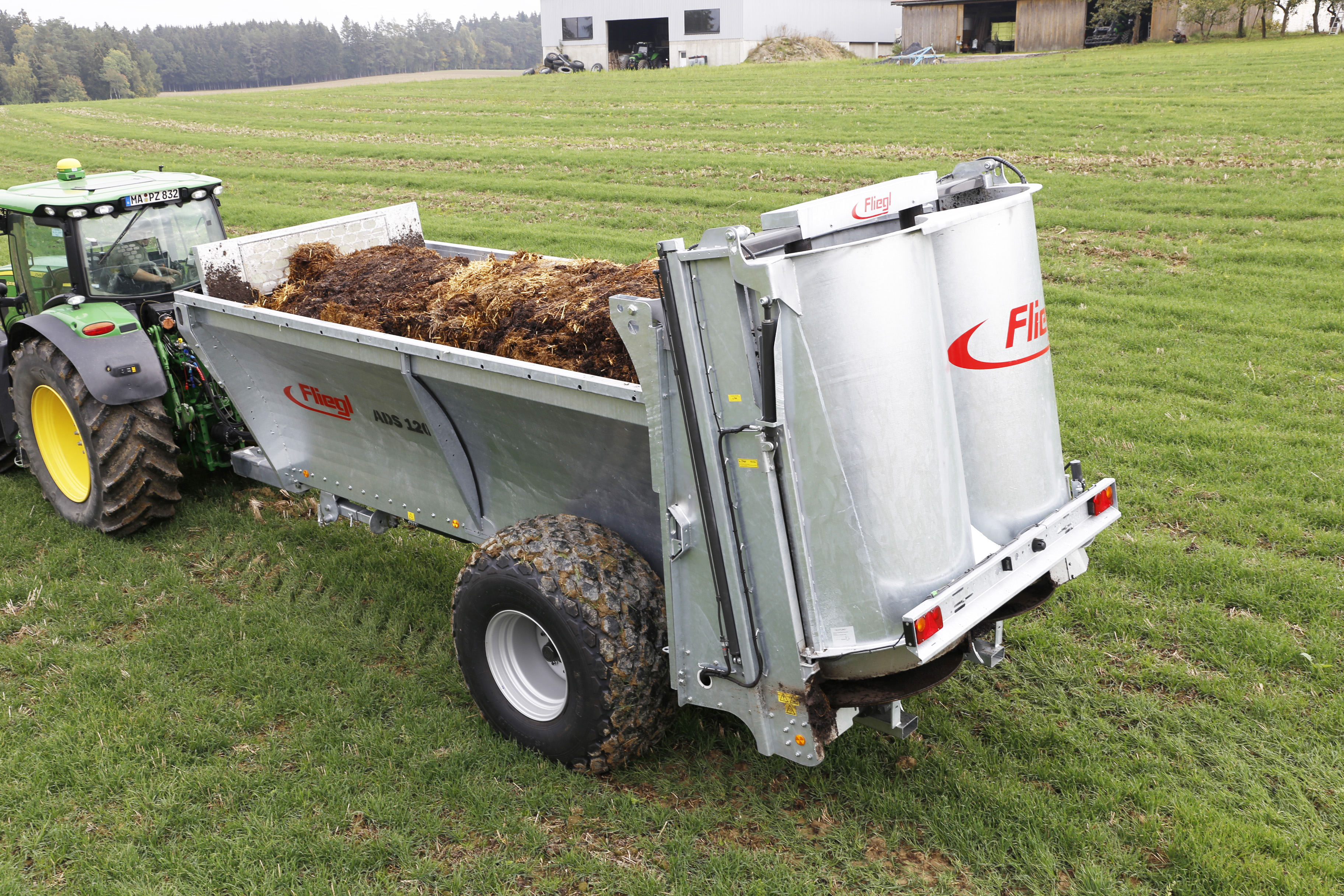

ADS 120

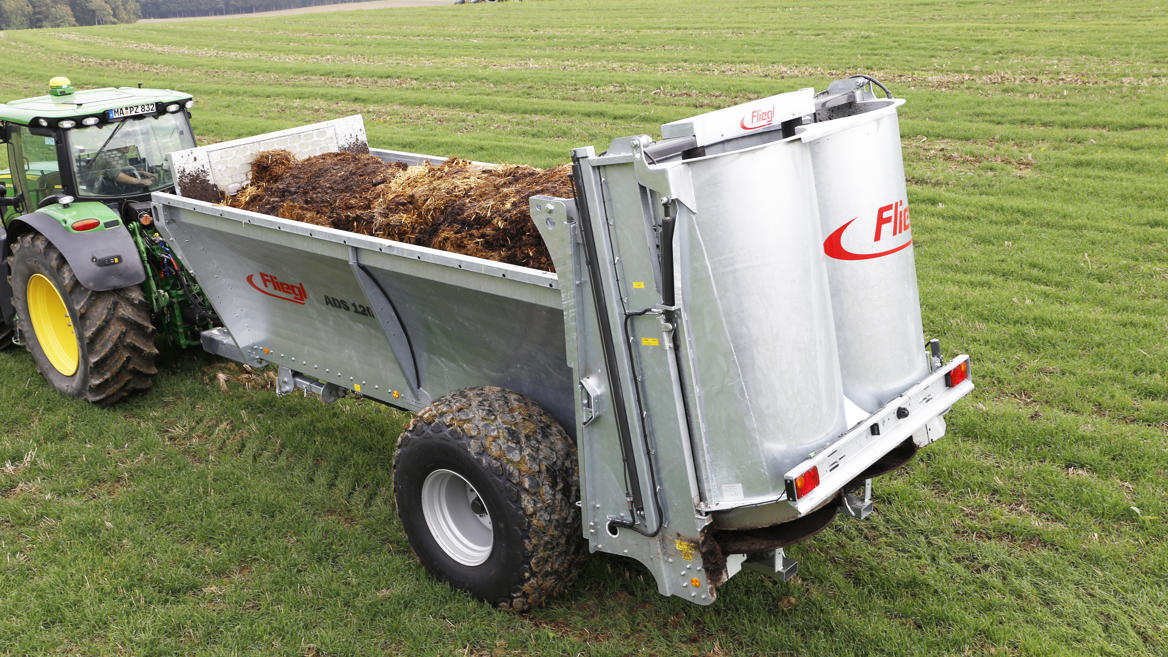

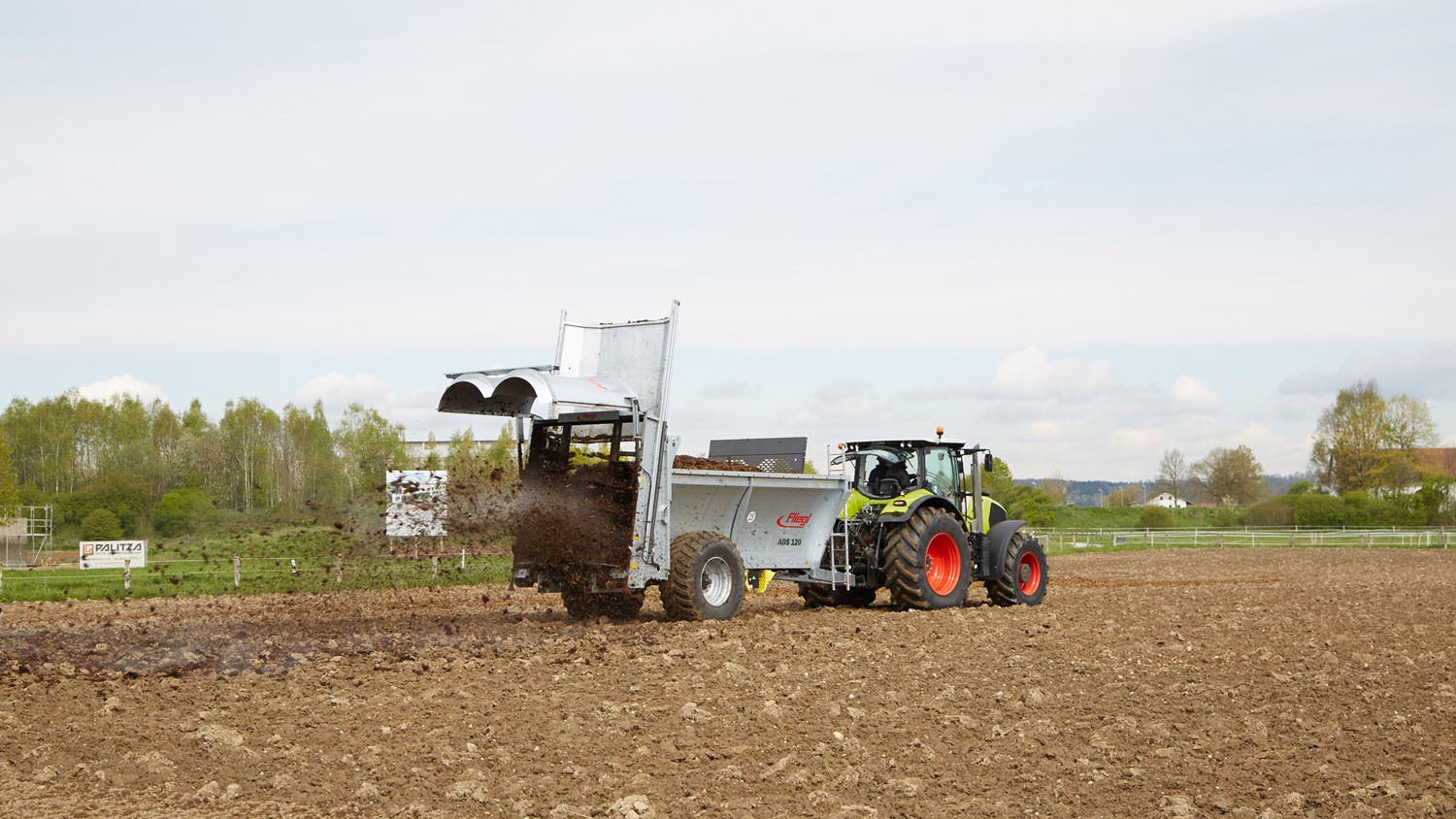

Like all spreaders in Fliegl's ADS range, the ADS 120 features an integrated axle, drawbar and trough design for a low center of gravity and high stability when spreading on hilly terrain.

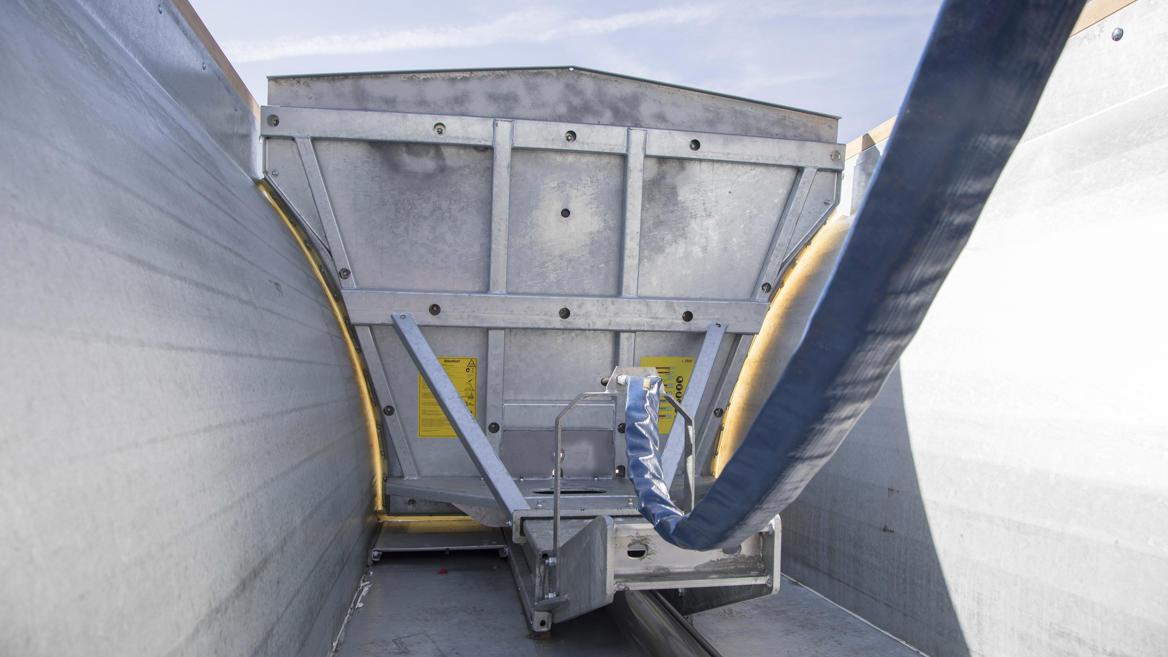

The hydraulic push-off system has no sensitive wear-parts in comparison to chain and scraper floor systems. The ADS 120 also carries the highly regarded DLG test-mark for its stable manure distribution.
Scroll down to find out more on the specs of this spreader.
Key Features
- One-axle chassis
- Permitted total weight 13,000kg, drawbar load 3,000kg
- Hydraulically sprung drawbar, bottom hitch, easily adjustable to suit spreading requirements by approx. 400-600mm
- 40mm Ø DIN tow eye
- Hydraulic single-line brake without load adjustment valve
- 25km/h version for export
- Tyres 750/60 R30.5 max. load capacity per wheel 6740kg at 40km/h
- Spreading trough 5000mm x 1300/2100mm x 1600mm
- Profi V2 spreader mechanism: Rollers 2K painted, housing and slider galvanised, 2 vertical rollers, slinger
- Mechanical potentiometer

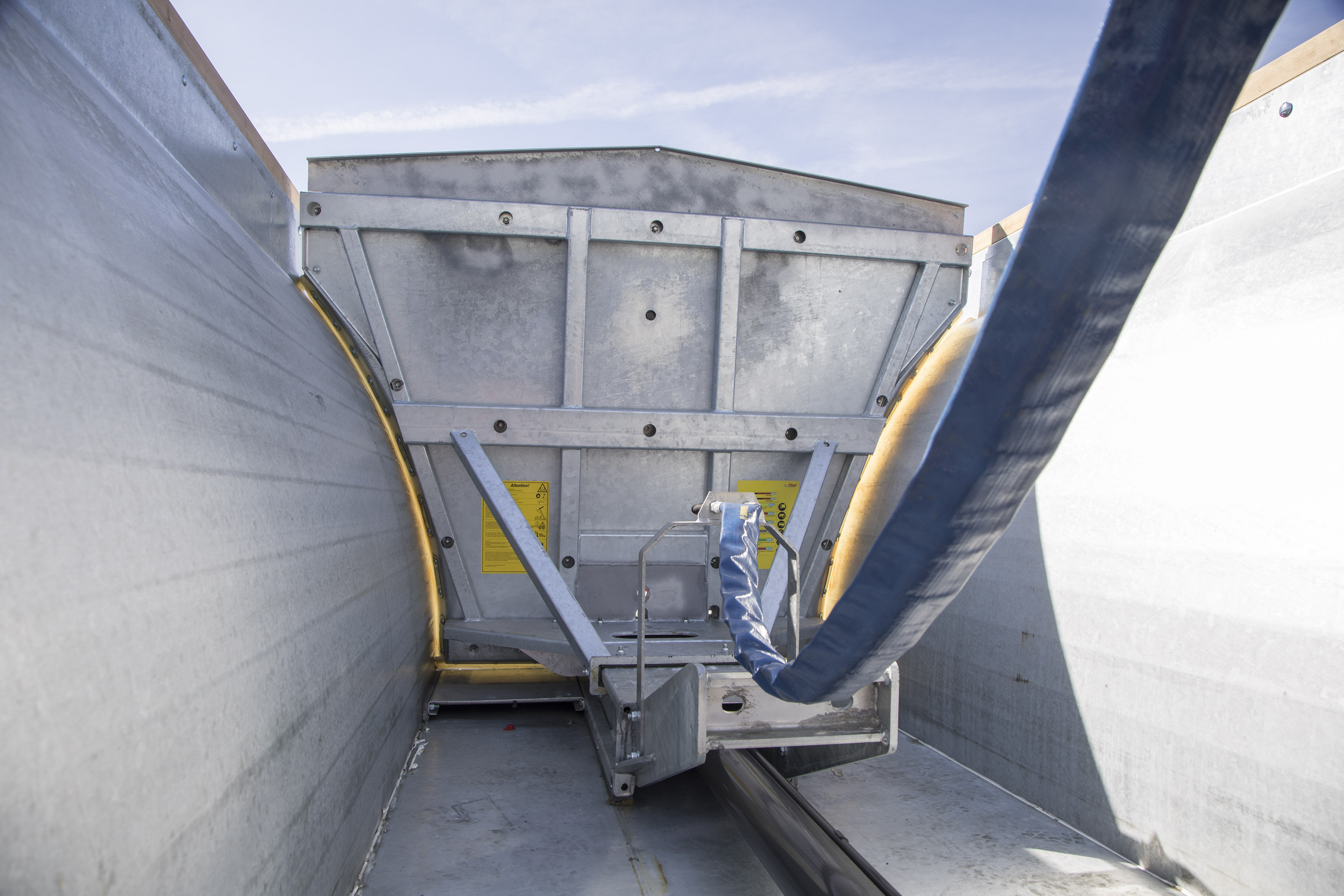

- Hydraulic sliding floor with circumferential polyurethane strips, hose guide
- Lighting 12V 7-pin connector
- Wide-angle drive shaft with cam coupling
-
Standard
- One-axle chassis
- Permitted total weight 13,000kg, drawbar load 3,000kg
- Hydraulically sprung drawbar, bottom hitch, easily adjustable by approx. 400-600mm to suit spreading requirements and adjust spread pattern
- 40mm Ø DIN tow eye
- Hydraulic single-line brake without load adjustment valve
- 25km/h version for export

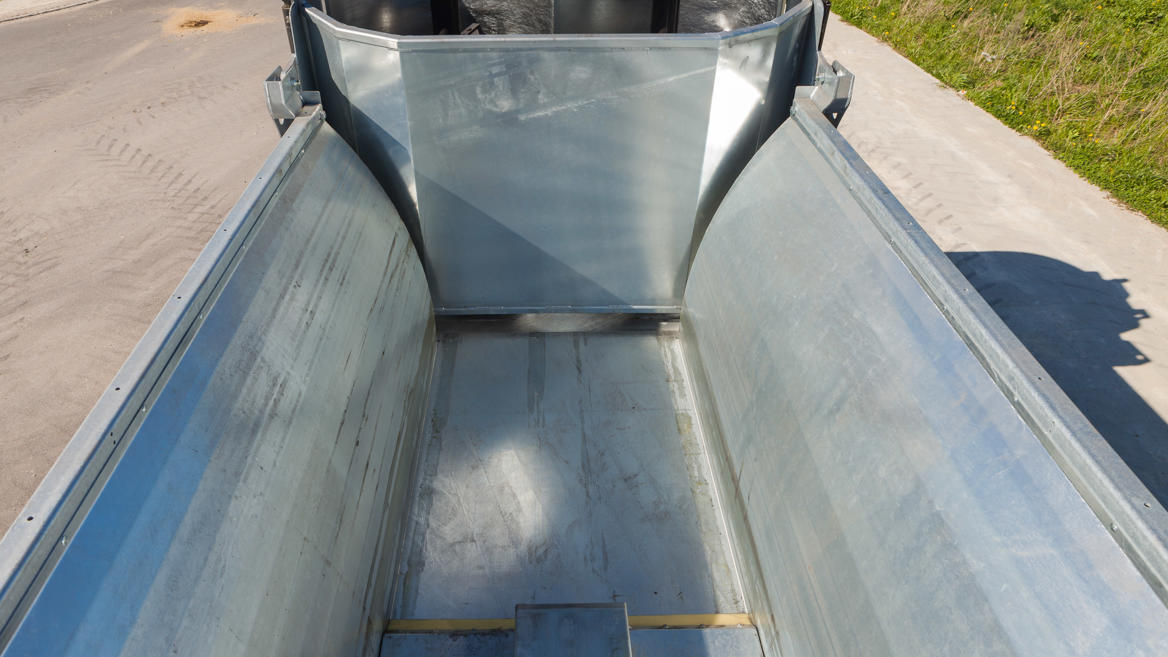

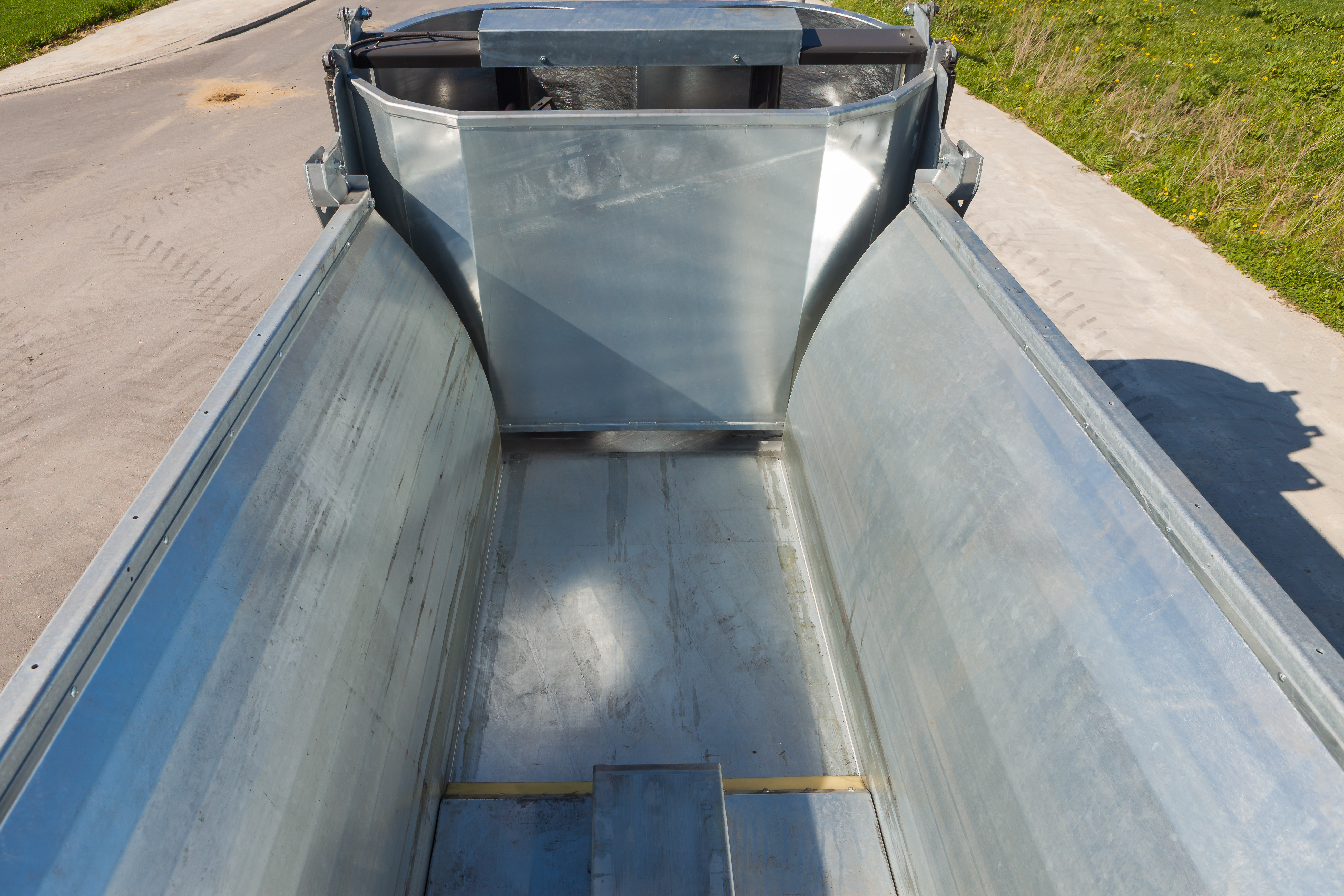

- Spreading trough 5000mm length x 1300/2100mm trough width x 1600mm height
- Galvanised spreader trough and drawbar
- Hydraulic sliding floor with circumferential polyurethane strips, hose guide
- Lighting 12V with 7-pin connector

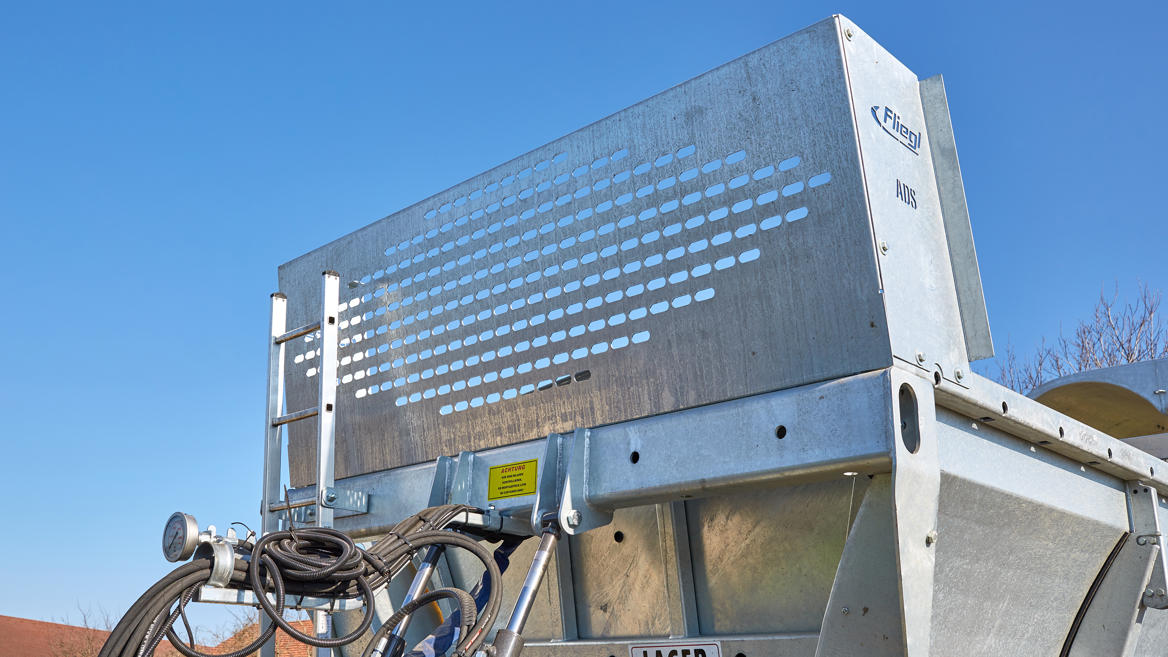

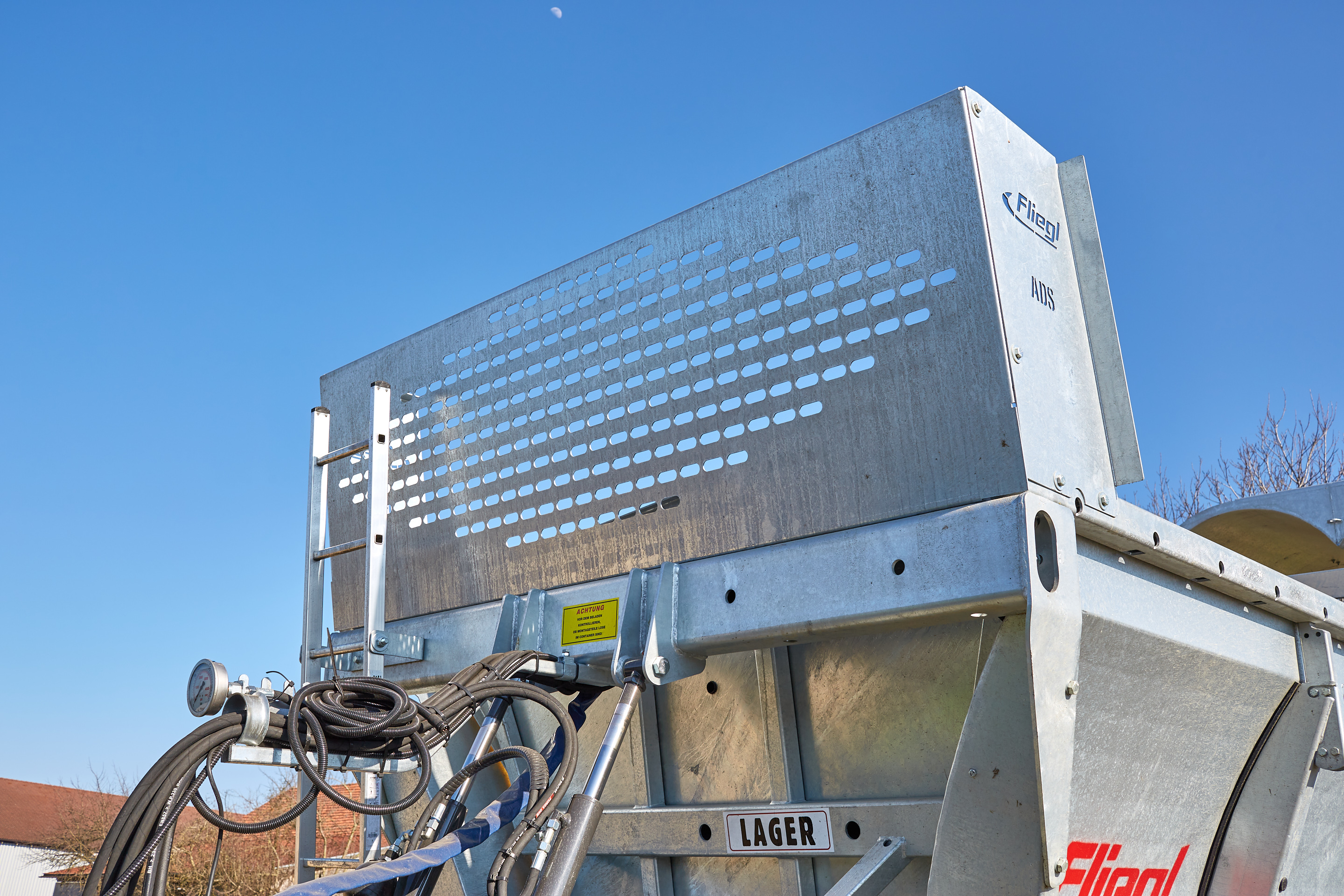

- Front protective grate
Optional
- Ball head K80 (Ø 80 mm)
Optional For Indent Orders
- 2-circuit compressed air brake with ALB
- Hydraulic high-capacity tail door 800mm with grain slider 400mm x 230mm and 12 Volt lighting
- Front-mounted ladder
- Plastic mudguards
-
Standard

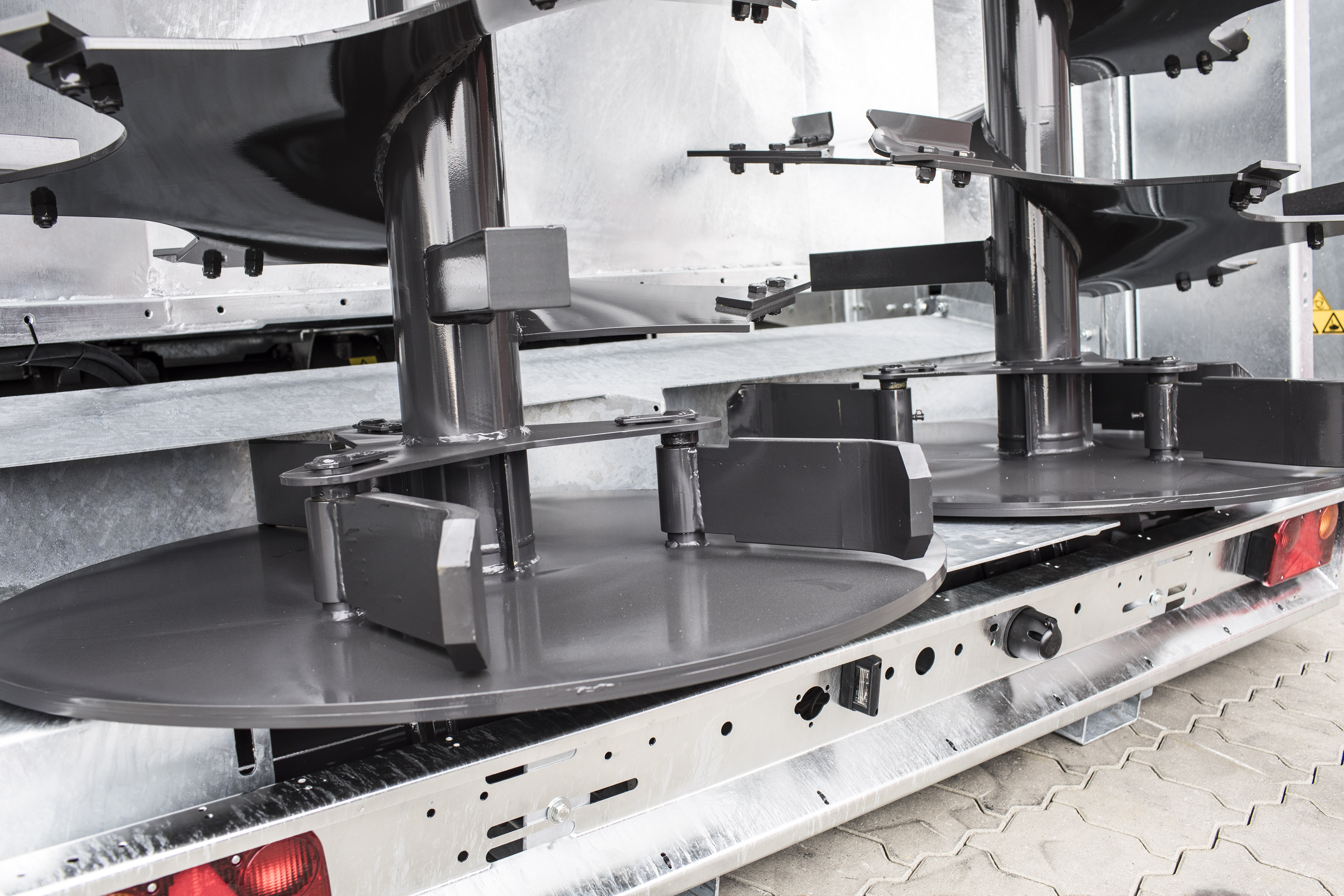

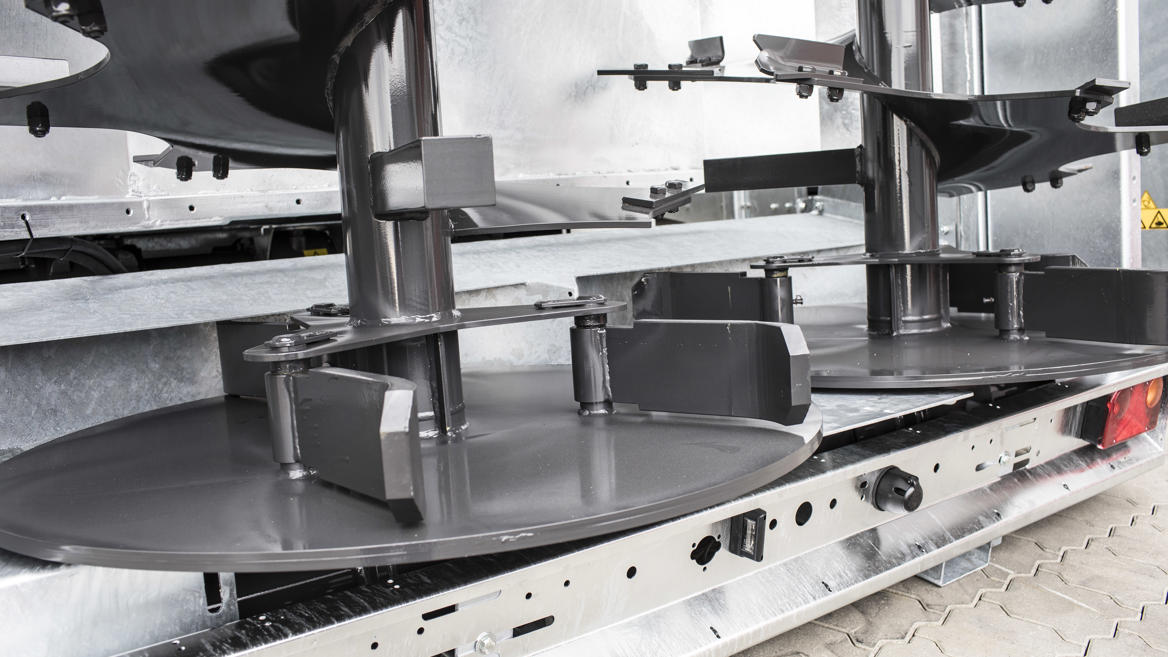

- Profi V2 spreader mechanism including galvanised frame & guillotine gate and 2 vertical beaters with slingers (painted), attachment height 2000mm
- Mechanical potentiometer for control of push-off speed
- Polyurethane sealing strips for guillotine gate
- Wide-angle PTO with ratchet clutch
Optional For Indent Orders
- Electric potentiometer with in-cab feed rate control dial
- I-SENS automatic torque monitoring
- Wide-spreading rear panel hydraulic for V2 spreader mechanism
- Edge spreading system left side (only in connection with wide-spreading tailgate)
- Edge spreading system right side (only in connection with wide-spreading tailgate)
-
Standard
- Tyres 750/60 R30.5 max. load capacity per wheel 6740kg at 40km/h
Optional For Indent Orders
- Tyres 650/75 R32 max. load per wheel 6000kg at 40km/h
