ASW 271 - Fox

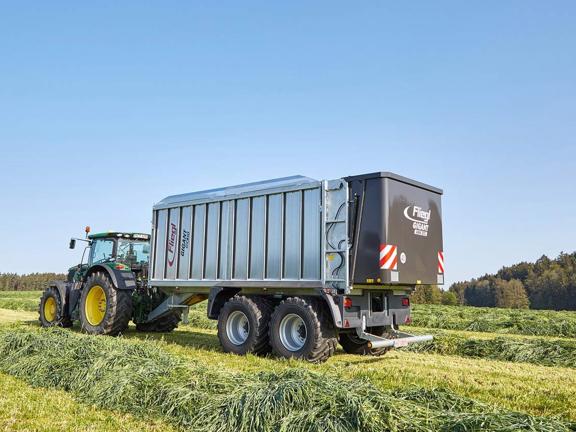

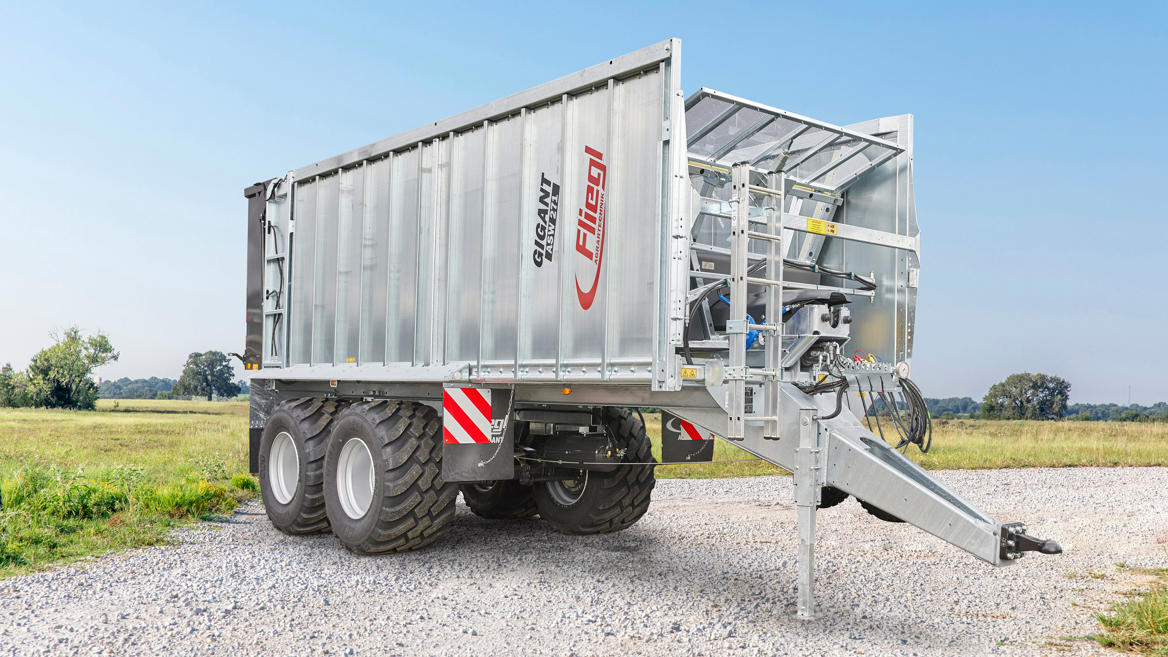

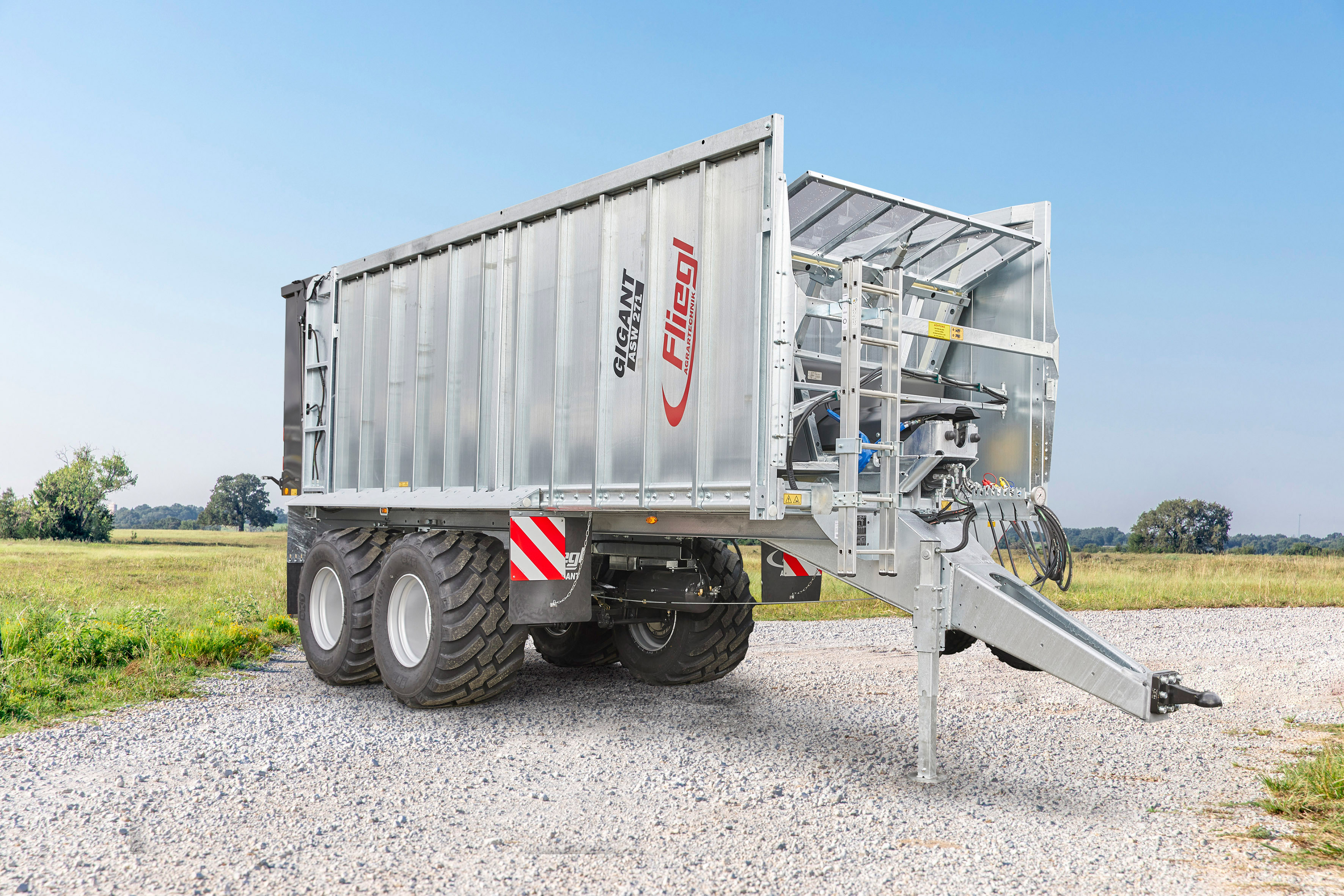

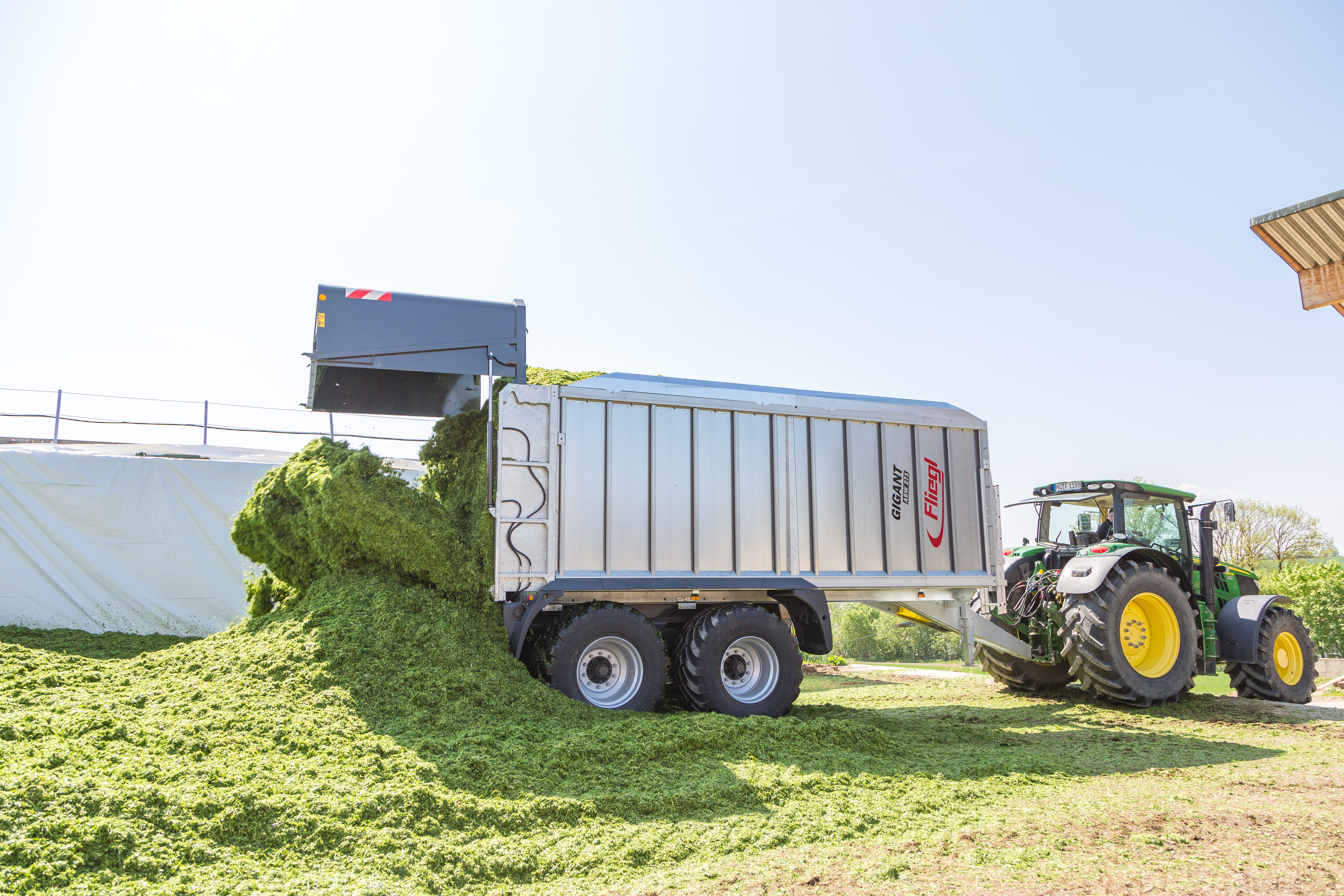

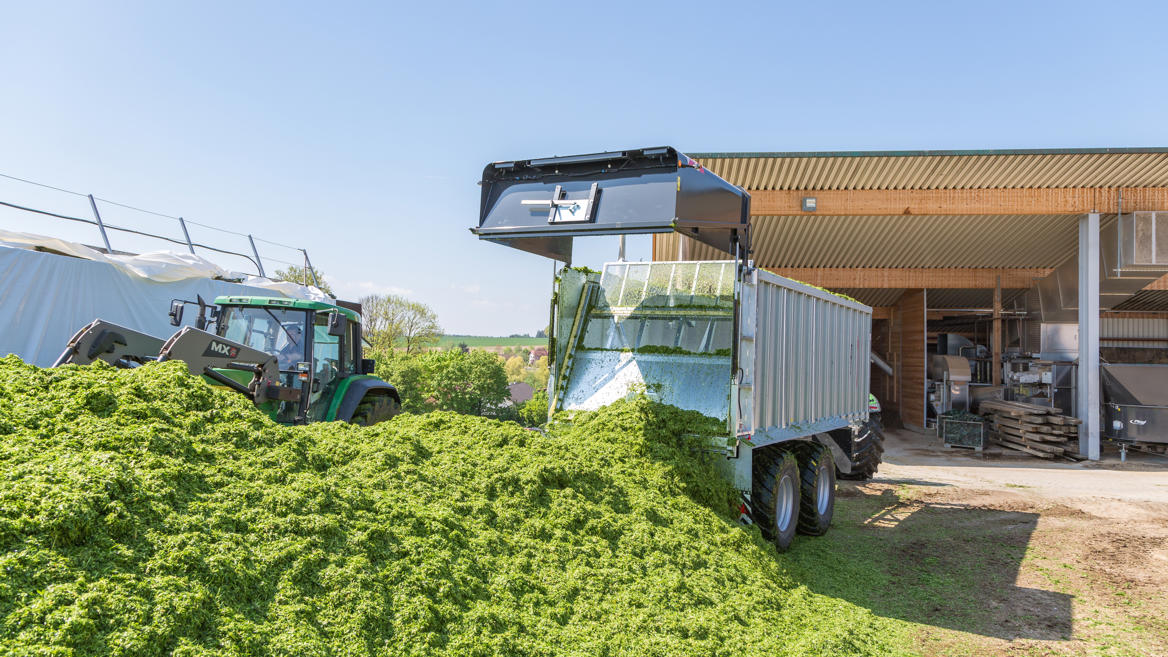

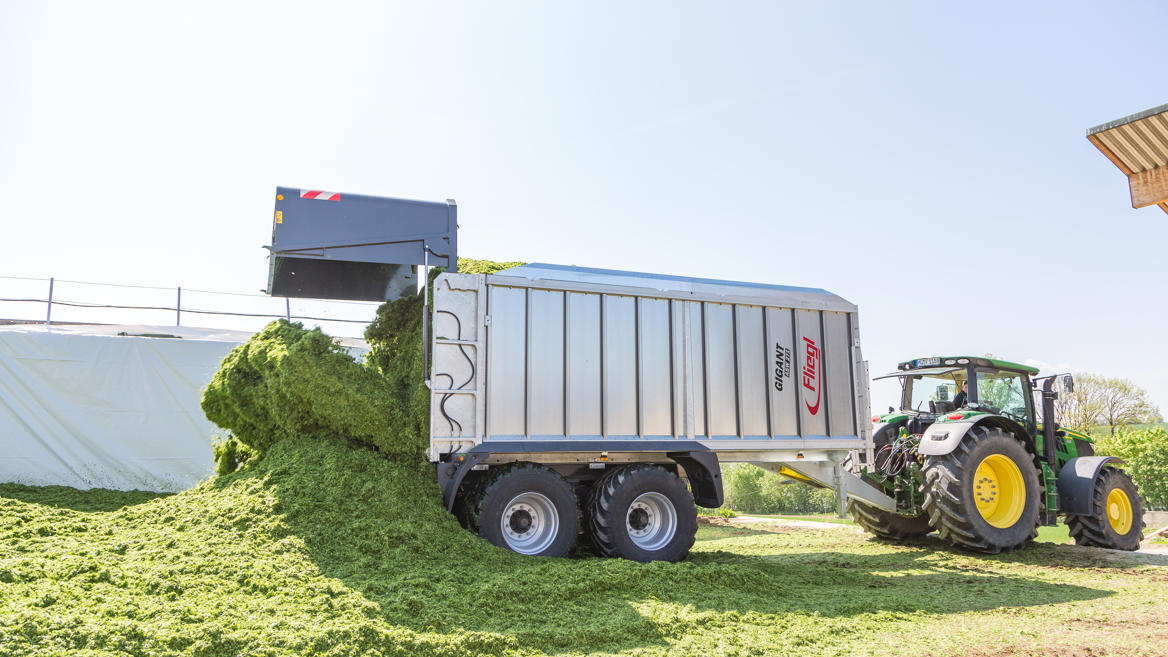

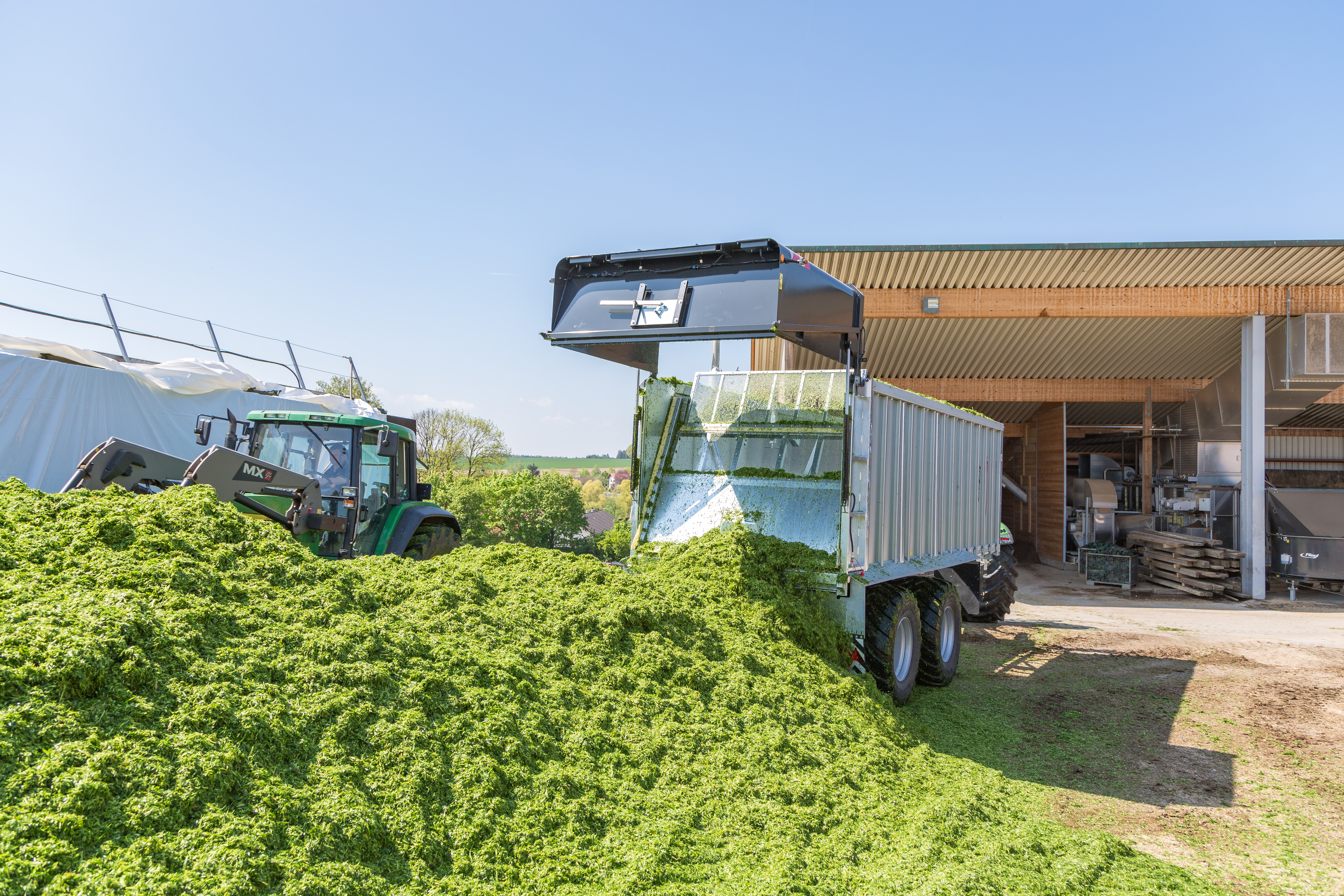

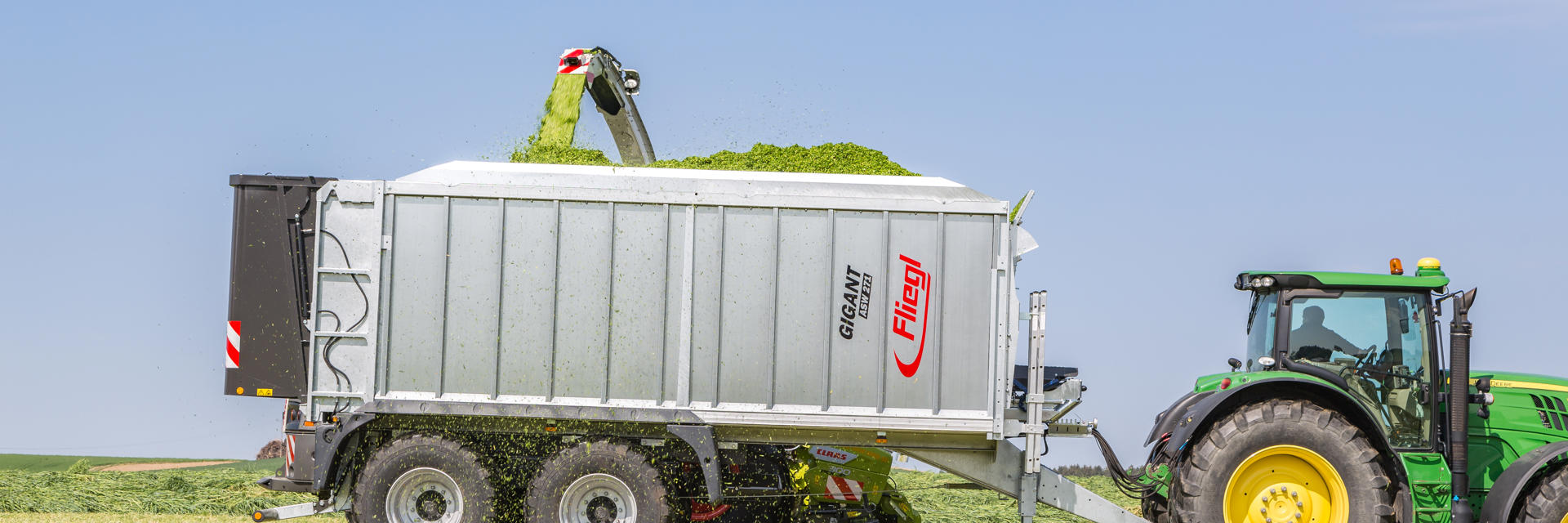

The ASW271 Fox is a tandem axle silage wagon powerhouse, boasting a 34m3 capacity with the ability to compress loads by 1/3 thanks to its push-off system. Productivity is significantly improved along with safety when unloading on a stack.

Standard features of this model include a galvansied chassis and box with a hydraulic support foot, tandem hydraulic brake axles, parabolic suspension, LED lights, mudguards and an underride guard.

1 / 6

Key Features

  • Tandem chassis
  • Permitted total weight capacity of 20,000kg, equivalent to 18,000kg axle load & 2,000kg drawbar load

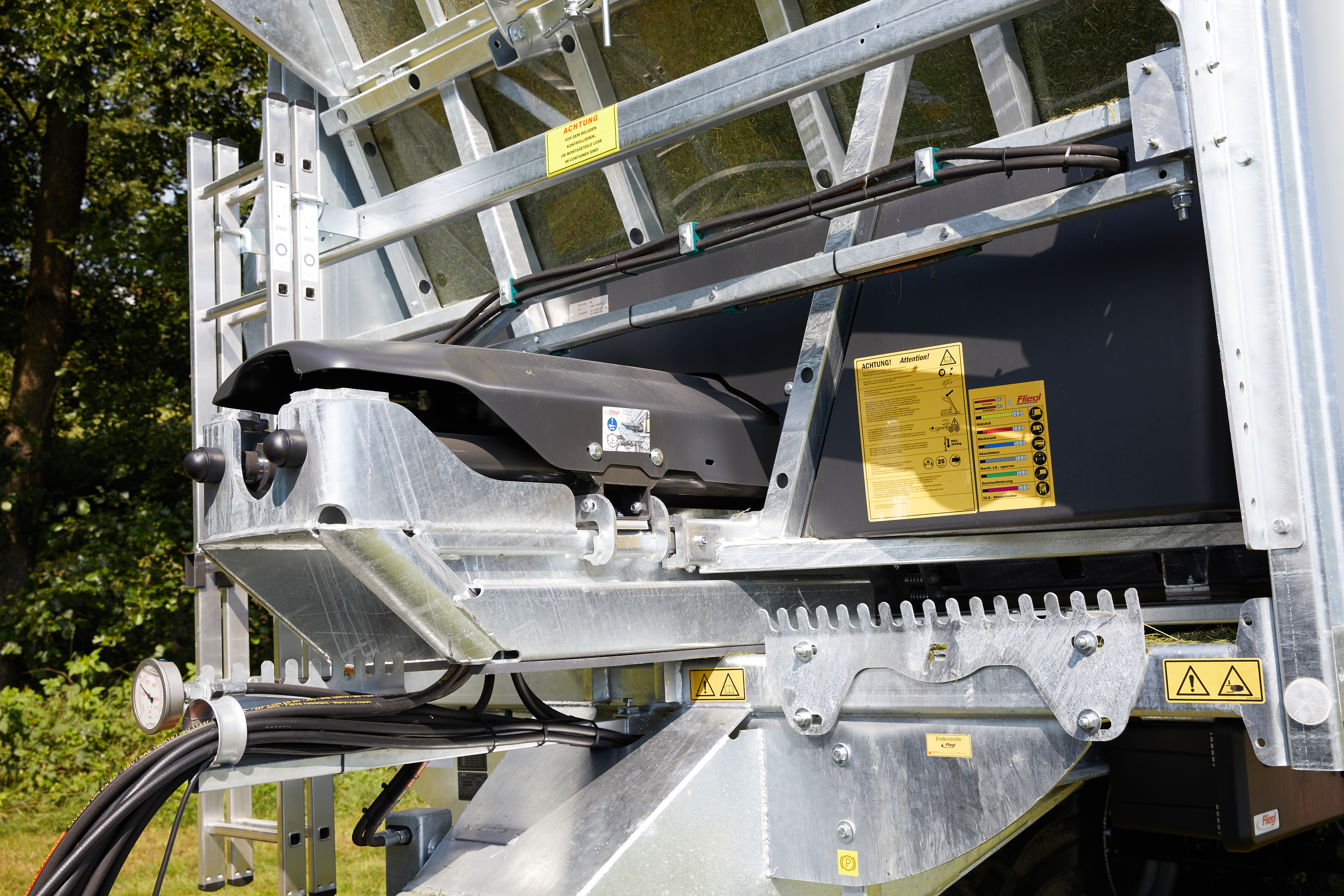

  • Fixed drawbar, bottom hitch
  • 50mm Ø pivoting tow eye
  • Hydraulic support foot
  • Hydraulic single-line brake without load adjustment valve
  • 2 brake axles, both rigid
  • Axle type: BPW 410 x 120 brake drums
  • Tyres 560/60 R22.5 max. load per wheel 6300kg at 40km/h
  • Titan parabolic suspension assembly
  • 40 km/h version for export
  • Floor 6300mm x 2380mm

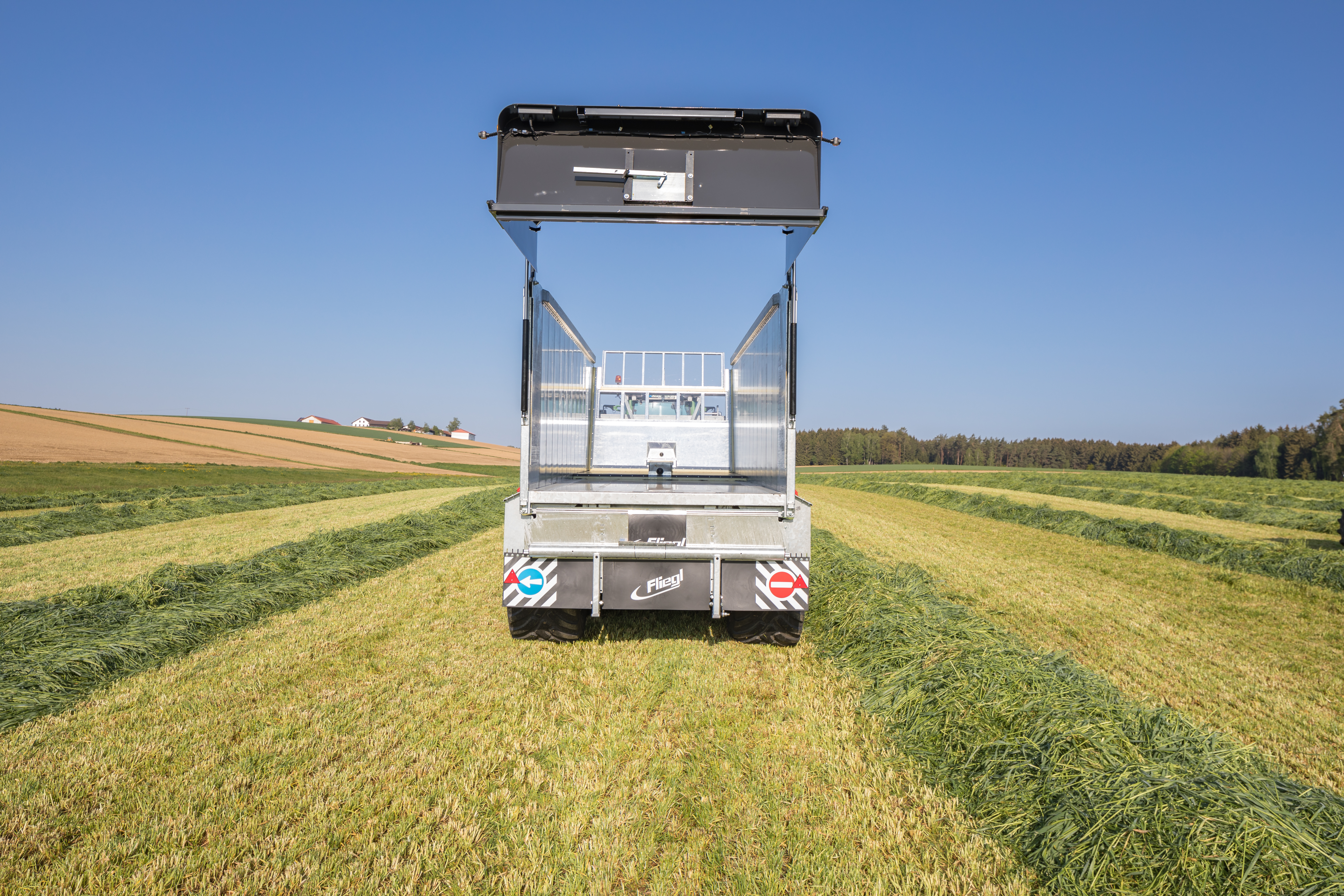

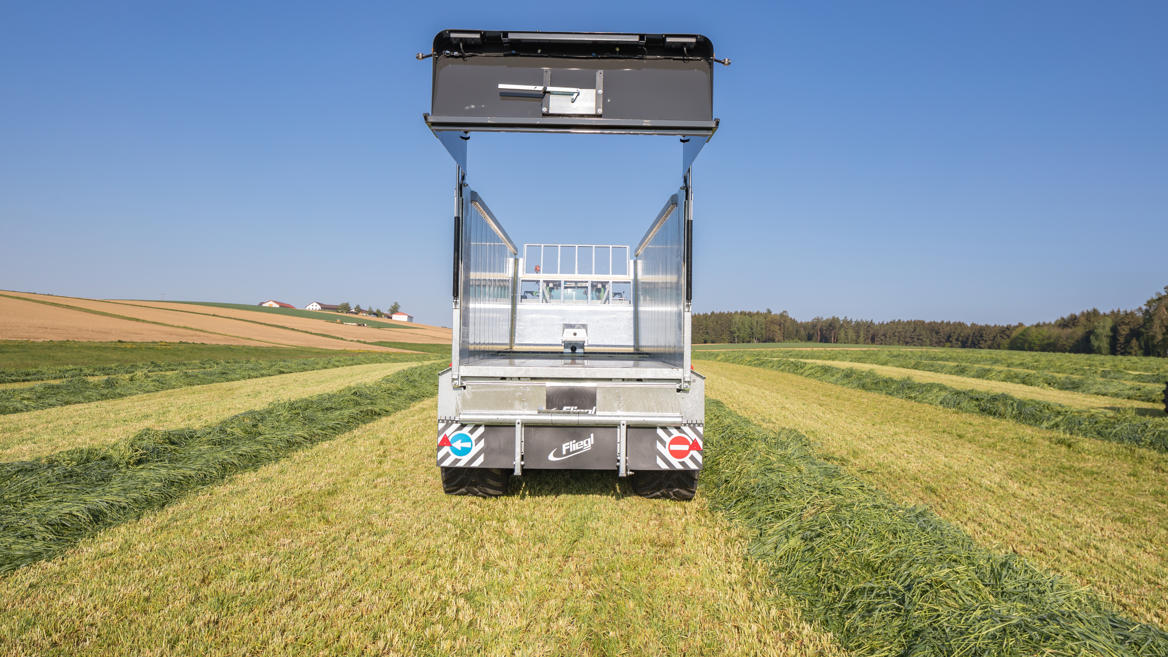

  • Hydraulic 800mm depth tail door with 420mm x 250mm grain slider (total length 7100mm)
  • Tail door and side walls 2000mm high, with front wall extension
  • Hydraulic sliding floor with all-round polyurethane strips, optimal sealing & hose guide
  • Fixed underride guard
  • Mudguards and side marker lights
  • LED lighting 12V with 7-pin connector

  • Standard

    • Galvanised tandem chassis
    • Fixed drawbar, bottom hitch
    • Hydraulic single-line brake, without load adjustment valve
    • 2 brake axles BPW 410 X 120, both rigid
    • Hydraulic support foot
    • Titan parabolic suspension
    • Mechanically shifting axle assembly
    • 50mm Ø pivoting tow eye

    Optional

    • K80 ball hitch



    Optional For Indent Orders

    • 2-circuit compressed air system with ALB
    • 2-circuit compressed air system with ALB and hydraulic brake as well as flat-sealing sleeve
    • 2 brake axles, front rigid, rear trailed, hydraulic locking (1 single-action control unit required)
    • Gigant parabolic suspension assembly
    • Gigant Plus parabolic suspension assembly

  • Standard

    • Floor 6300 mm x 2380 mm
    • Hydraulic high-capacity 800mm tail door with grain slider (420 x 250mm)
    • Total body length 7100mm
    • Rear panel and side panels 2000mm high, with front wall extension
    • Side wall panels galvanised & interlocked
    • Hydraulic sliding floor with circumferential polyurethane strips, optimal sealing, hose guide

    Optional for Indent Orders

    • Left or right side mechanically folding 500mm (not possible with sliding tarps, rolling net or folding roof)
    • Extendable ladder mounted on front
    • Pressure valve for improved compression
    • Side panels and tailgate 2300mm high, with front grate extension

  • Standard

    • Tyres 560/60 R22.5 max. load per wheel 6300kg at 40km/h

    Optional For Indent Orders

    • Tyres 650/50 R22.5 max. load per wheel 7070kg at 40km/h
    • Tyres 650/55 R26.5 max. load per wheel 7900kg at 40km/h
    • Tyres 710/45 R22.5 max. load per wheel 6300kg at 40km/h
    • Tyres 710/50 R26.5 max. load per wheel 6000kg at 60km/h

  • Standard

    • LED lighting 12V 7-pin connector
    • Mudguards
    • Side marker lights
    • Fixed underride guard

    Optional For Indent Orders

    • Mechanical folding underride guard
    • Hydraulically folding underride guard
    • Reversing camera
    • Monitoring camera
    • Side marking lights
    • Clearance lights
    • Spot lights
    • Beacon light
    • LED working lights
