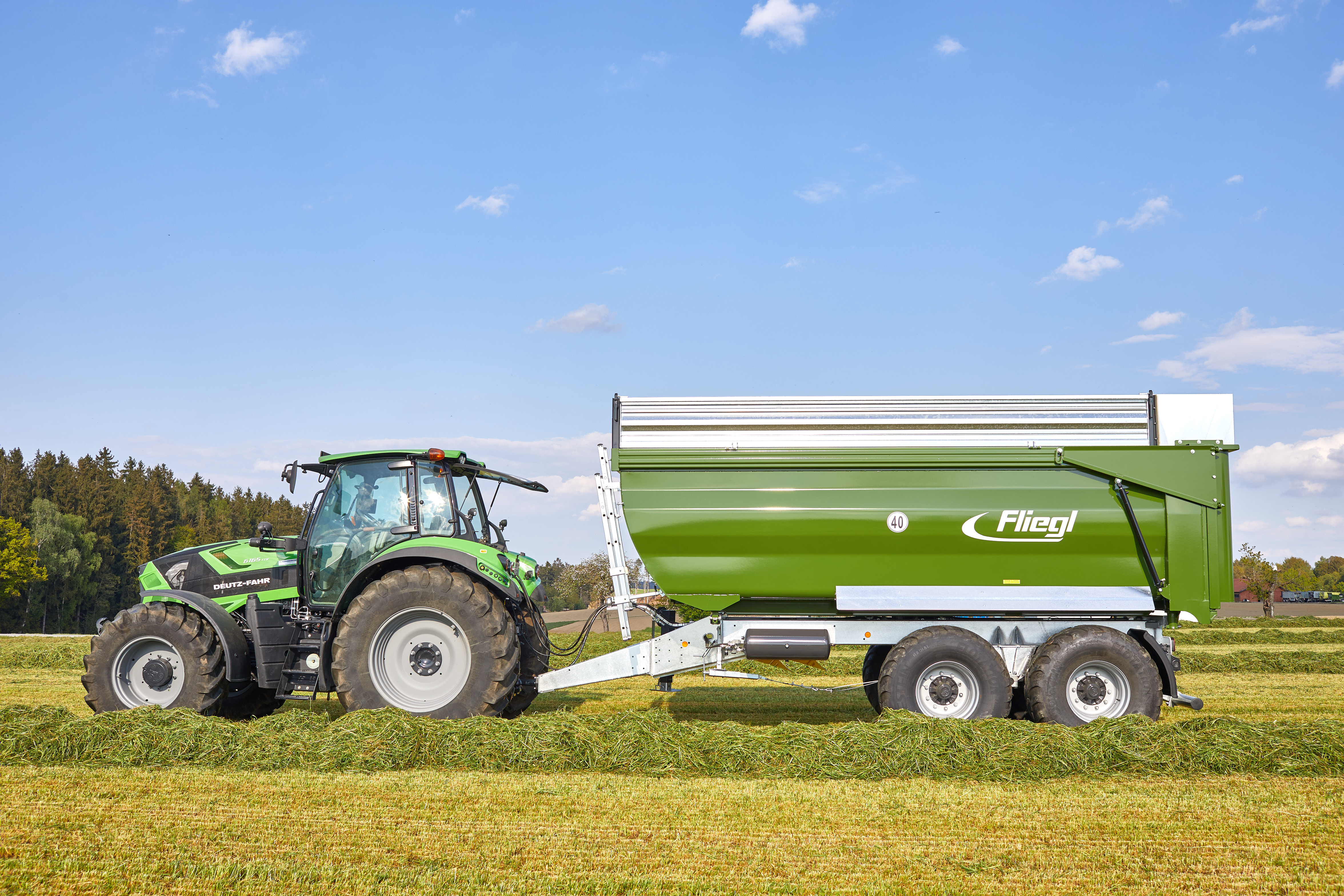

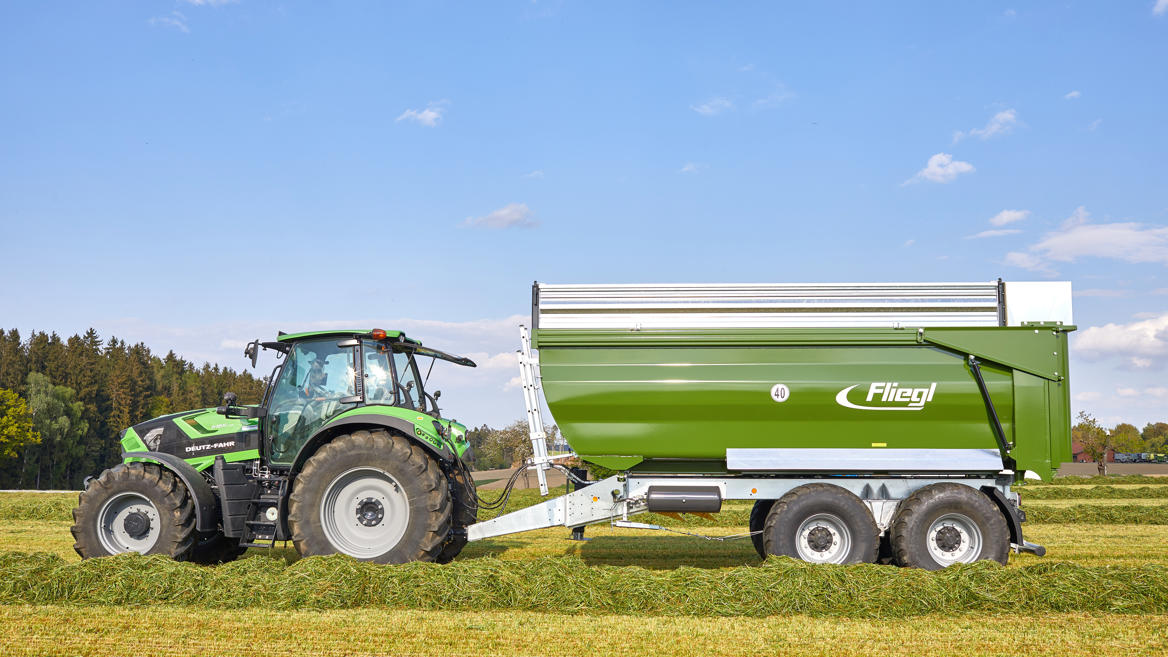

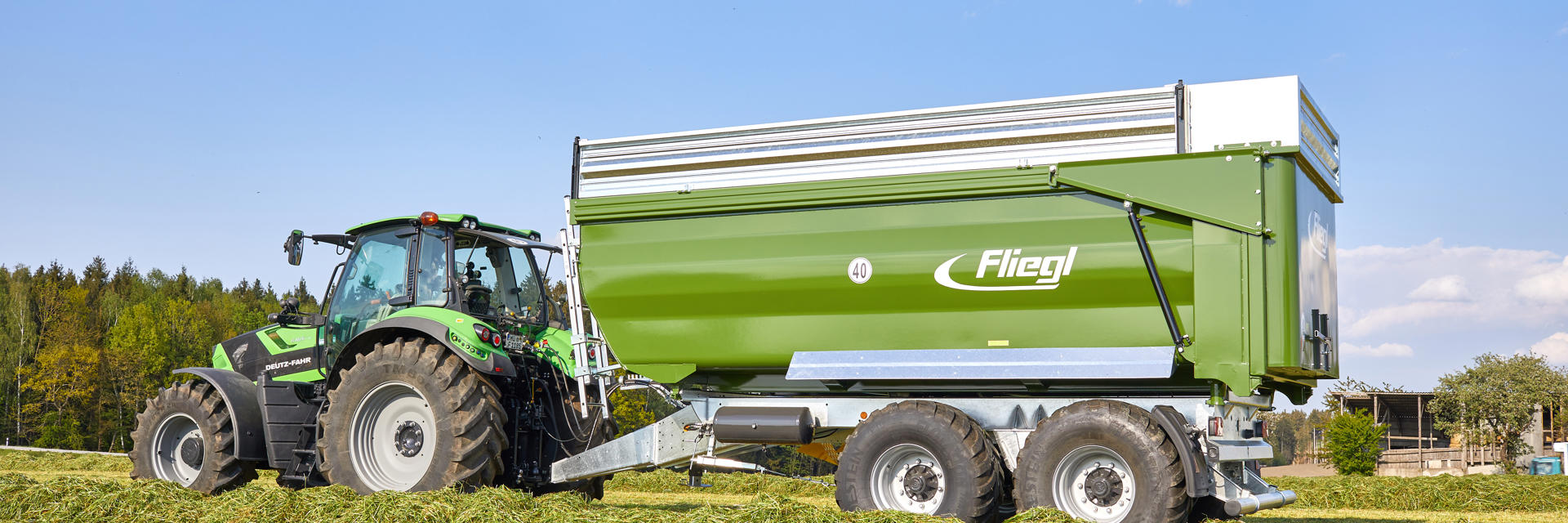

TMK 190 Fox

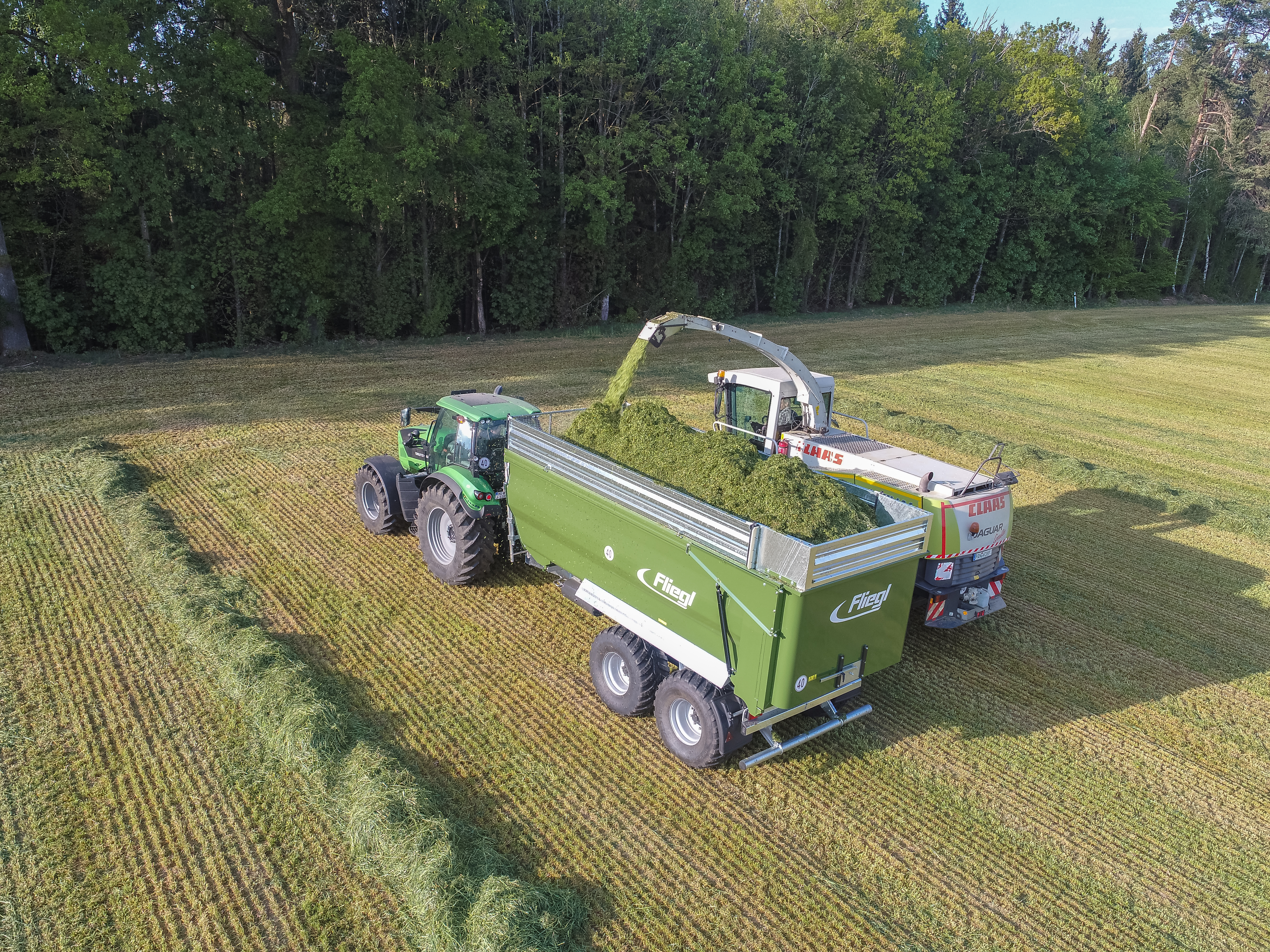

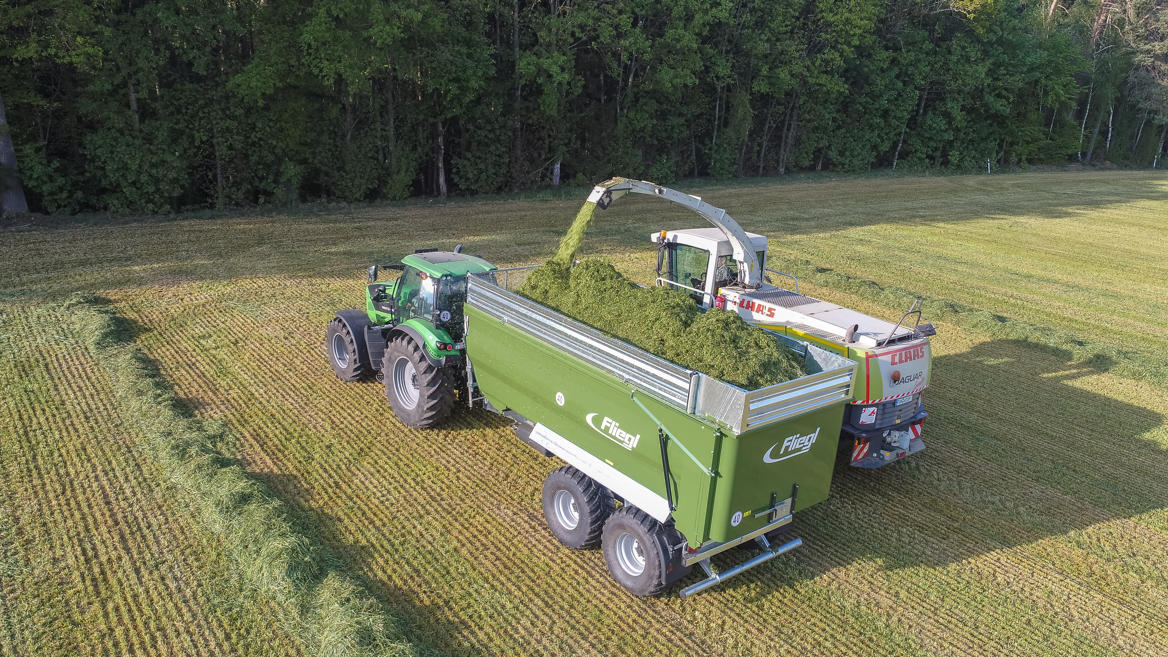

The TMK190 Fox is a robust and affordable dump trailer with a modest 27m3 capacity for silage, and a host of other features for making light work of harvesting and transport needs around the farm.
With a galvanised chassis, hydraulic support jack, 560/50 R22.5 tyres, hydraulic braked axles and tapered steel trough, the TMK190 is sure to tick many boxes.
Key Features
- Tandem chassis
- Permitted total weight 19,000kg, drawbar load 2000kg
- Profi chassis frame, galvanised
- Trough 5950mm (total length with bulkhead bevel and 300mm tailgate) x 2320/2220mm (tapered) x 1500 mm, all-steel trough primed and 2-component coating, dark green, with front inspection window
- Hydraulic large-volume tailgate, 300mm depth with grain slide 400mm x 230mm
- Parabolic suspension, titan assembly
- Rigid drawbar, bottom hitch
- 50mm Ø pivoting tow eye
- Axle version 400 x 120, brake drums BPW
- 2 hydraulic brake axles, both rigid
- Tyres 560/60 R22.5, max. load capacity per wheel 6300kg at 40 km/h
- 40 km/h export version
- Mudguard, underride guard and side marker lights
- Hydraulic support foot

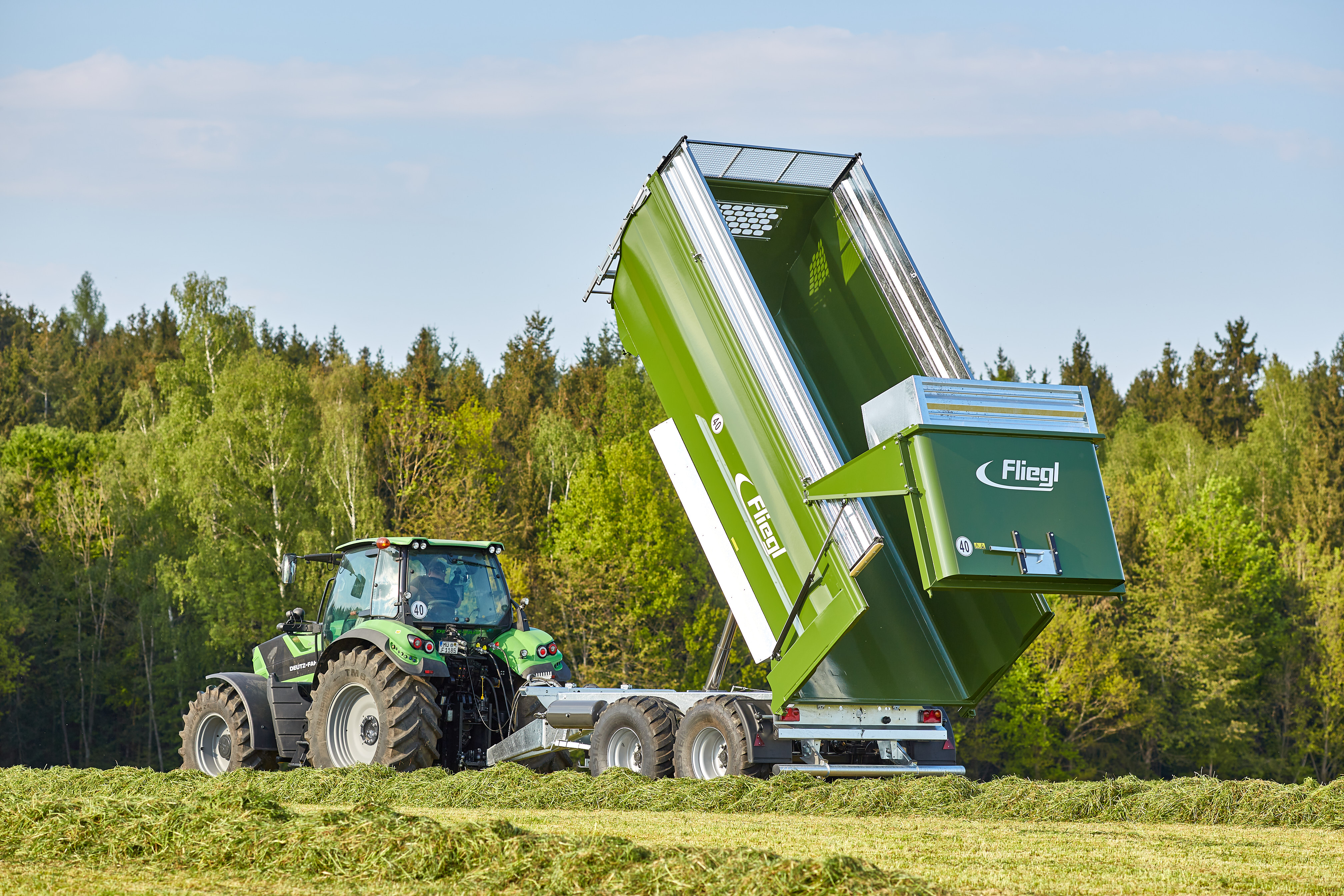

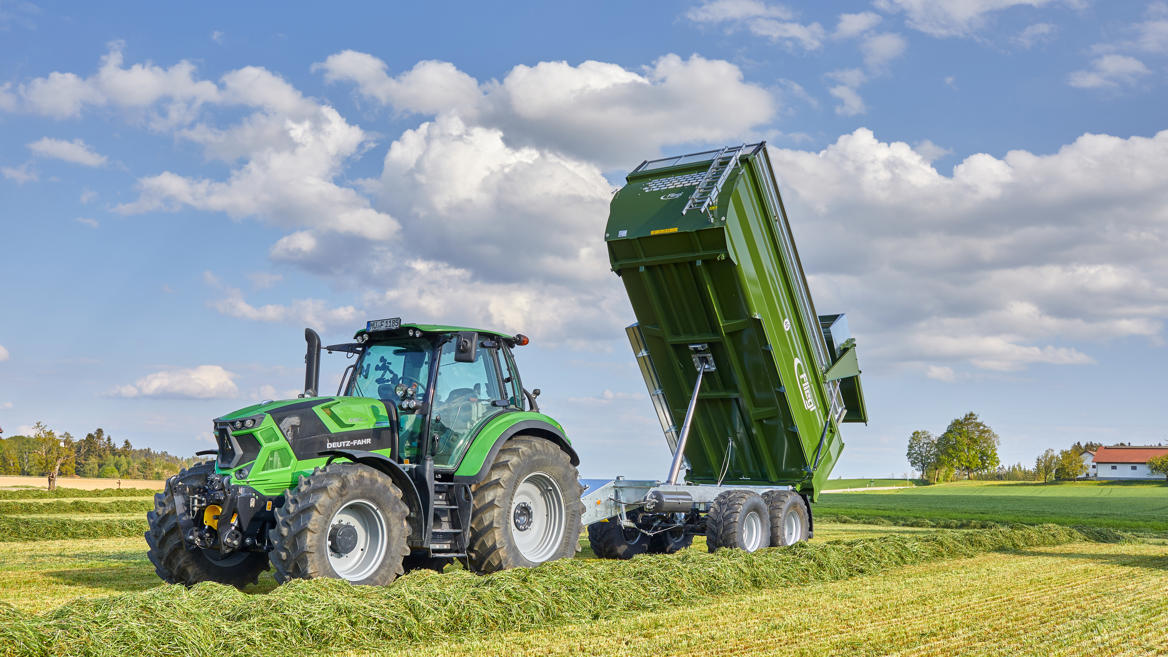

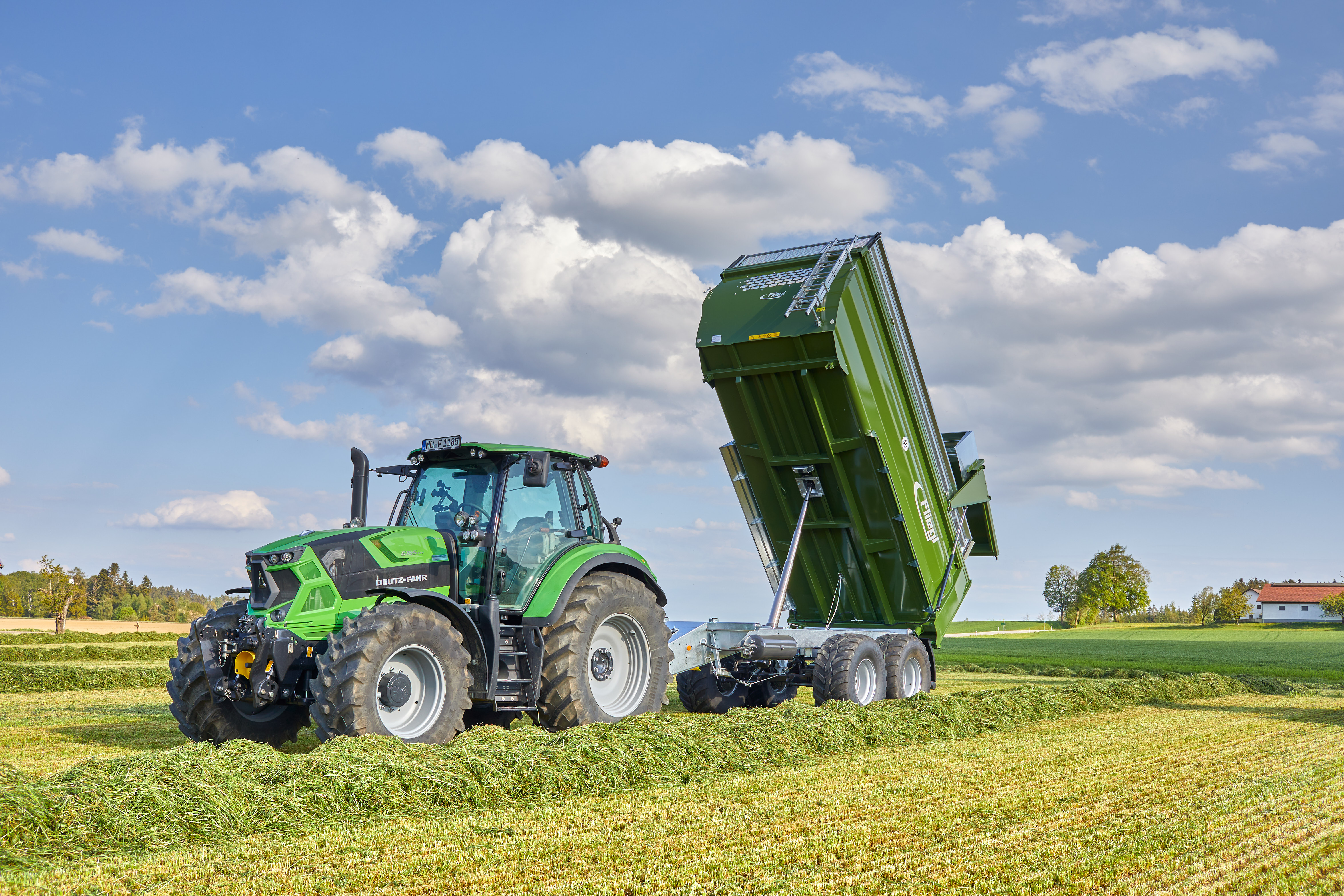

- Tipping cylinder 2150mm with limit switch
- 2 five-chamber lights 12V with 7-pin plug and impact-resistant glass
- Stop valve
- 500mm galvanised steel silage extensions (not grain tight)
-
Standard
- Tandem chassis
- Permissible total weight 19,000kg, drawbar load 2000kg
- Fliegl Profi frame, galvanised
- Drawbar unsprung, bottom hitch
- Titan parabolic suspension assembly
- 50mm Ø pivoting tow eye
- Axle version 400 x 120, brake drums BPW
- 2 hydraulic brake axles, both rigid
- 40km/h version for export
- Hydraulic support foot
- Tipping cylinder 2150mm with limit switch
- Stop valve
Optional
- Ball head K80 (Ø 80 mm)
- 40mm Ø tow eye
Optional For Indent Orders
- 2-circuit compressed air brakes with ALB
-
Standard
- Trough 5950mm (total length with beveled front wall and 300mm tailgate) x 2320/2220mm (Tapered) x 1500mm, all-steel trough primed and 2-component painted dark green with front inspection window
- Hydraulic large rear wall 300mm with grain slider 400mm x 230mm
- 500mm galvanised steel silage extensions (not grain tight)
Optional For Indent Orders
- 500mm body extensions with folding sides (not grain-tight)
- Rolling tarp and landing (possible only without body extensions)
- Speed/Cover rolling net: for load securing, can be operated hydraulically
- Pipe outlet with spout, removable
- Removable discharge chute
- Fall breaker for potatoes
-
Standard
- 2 five-chamber lights 12V with 7-pin plug and impact-resistant glass
- Mudguards
- Underride guard
- Side Markers Lights
Optional For Indent Orders
- Bridge support (secures the bridge during maintenance work)
- Spot lights front, white
- Reversing camera
- Monitoring camera
-
Standard
- Tyres 560/60 R22.5, max. load capacity per wheel 6300kg at 40 km/h
Optional For Indent Orders
- Tyres 650/55-R22.5 max. load per wheel approx. 7070kg at 40 km/h
- Tyres 710/45-R22.5 max. load per wheel approx. 6300kg at 40 km/h
