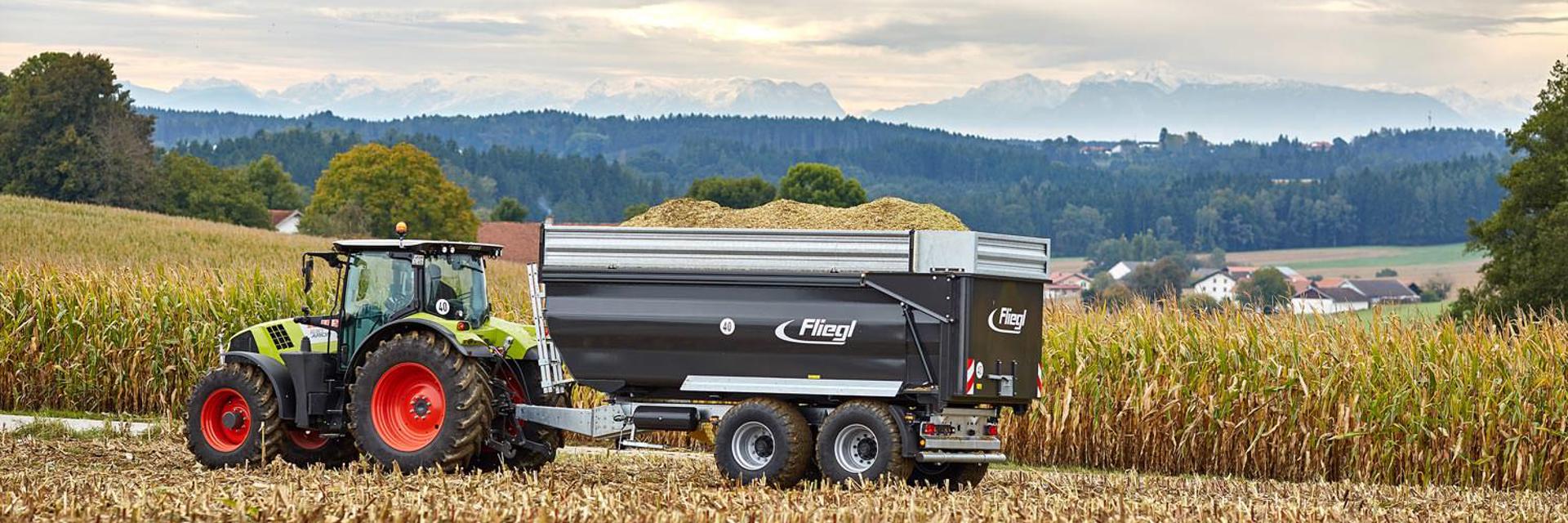

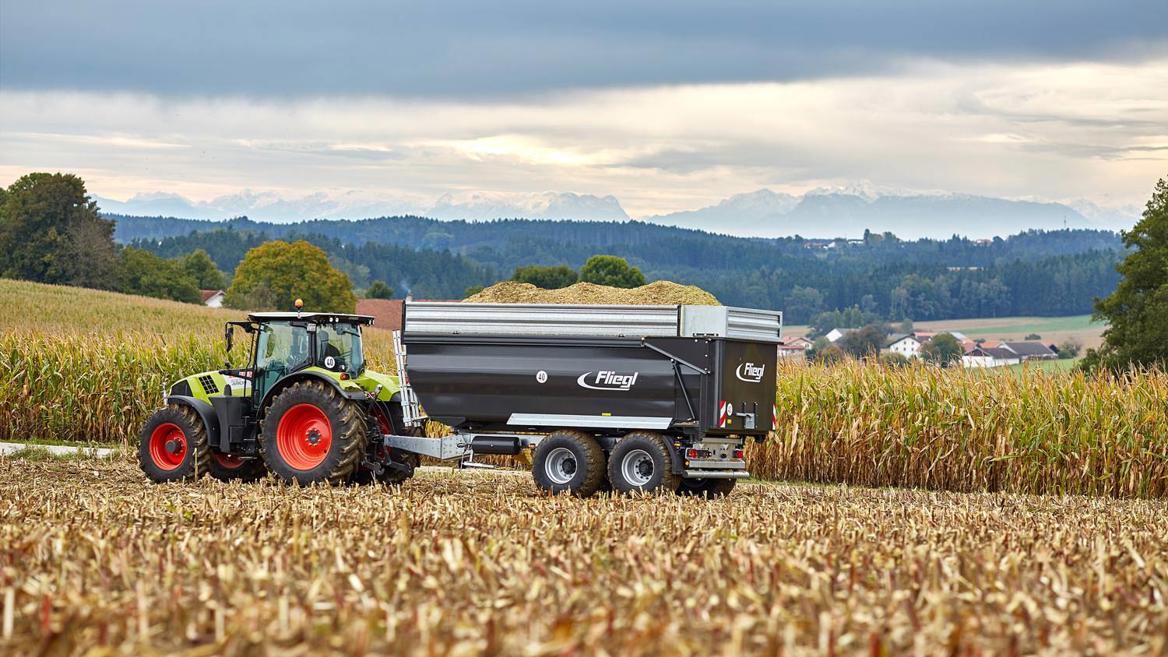

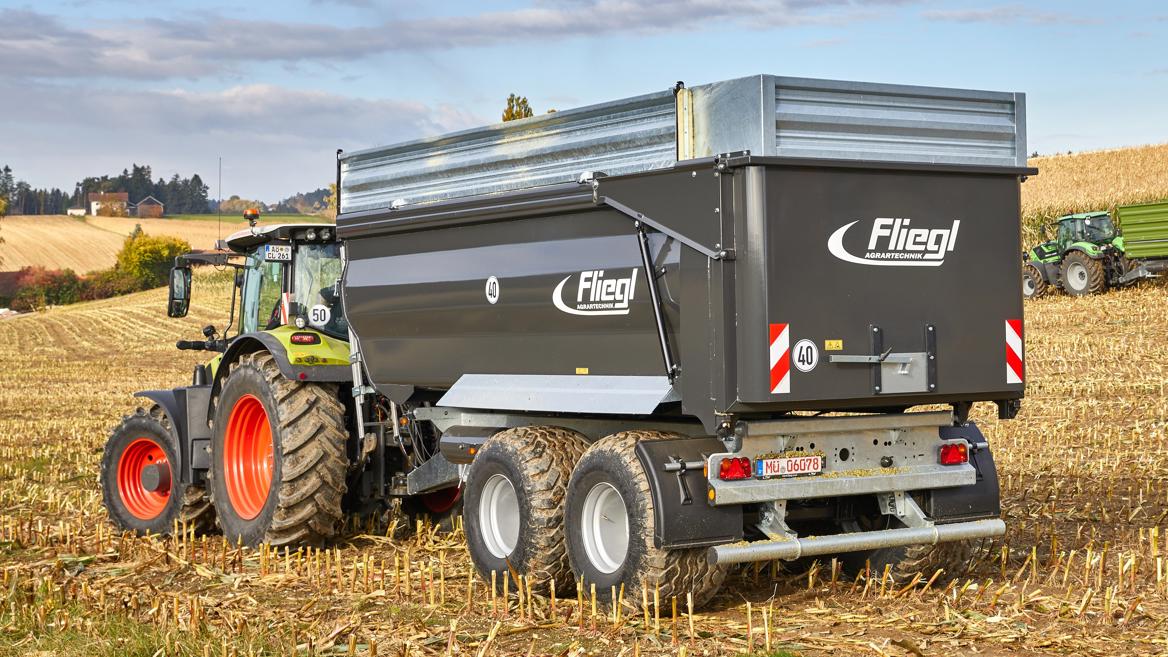

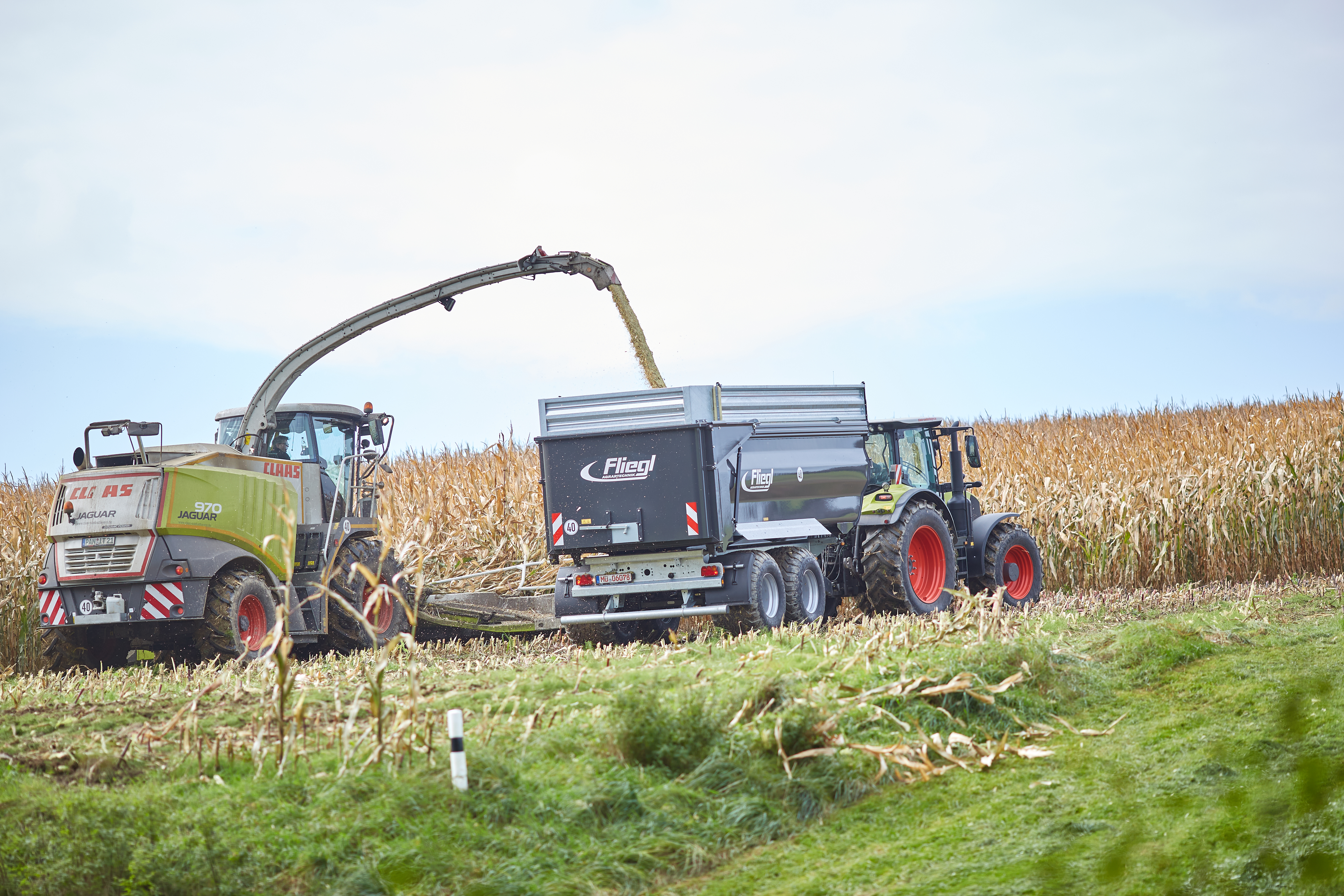

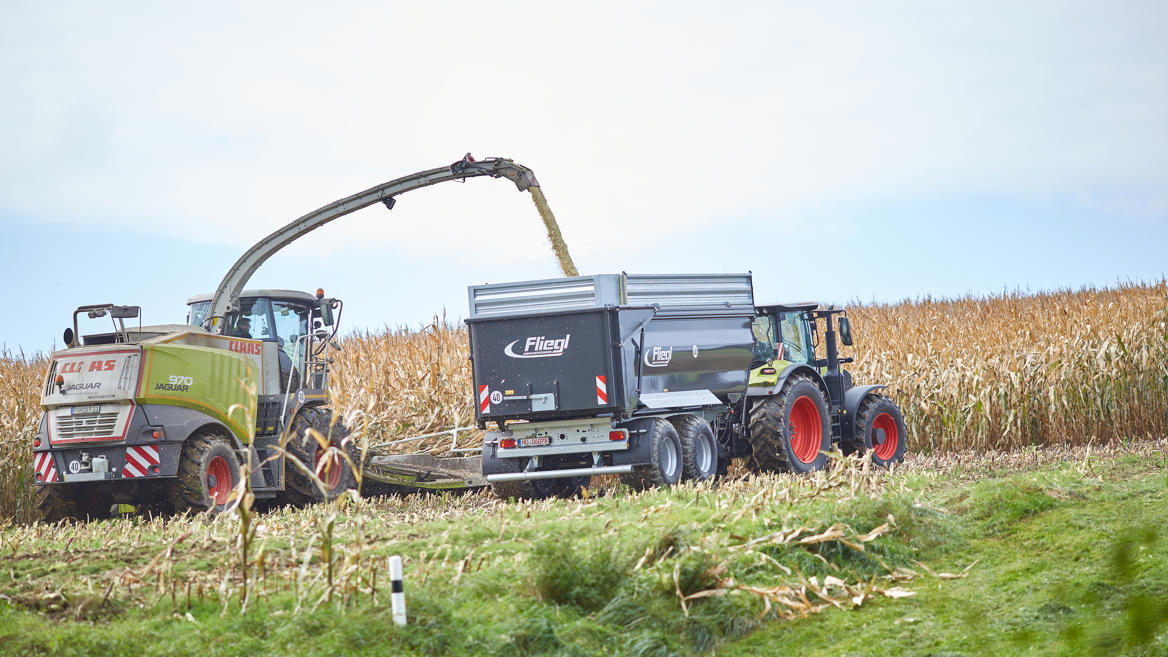

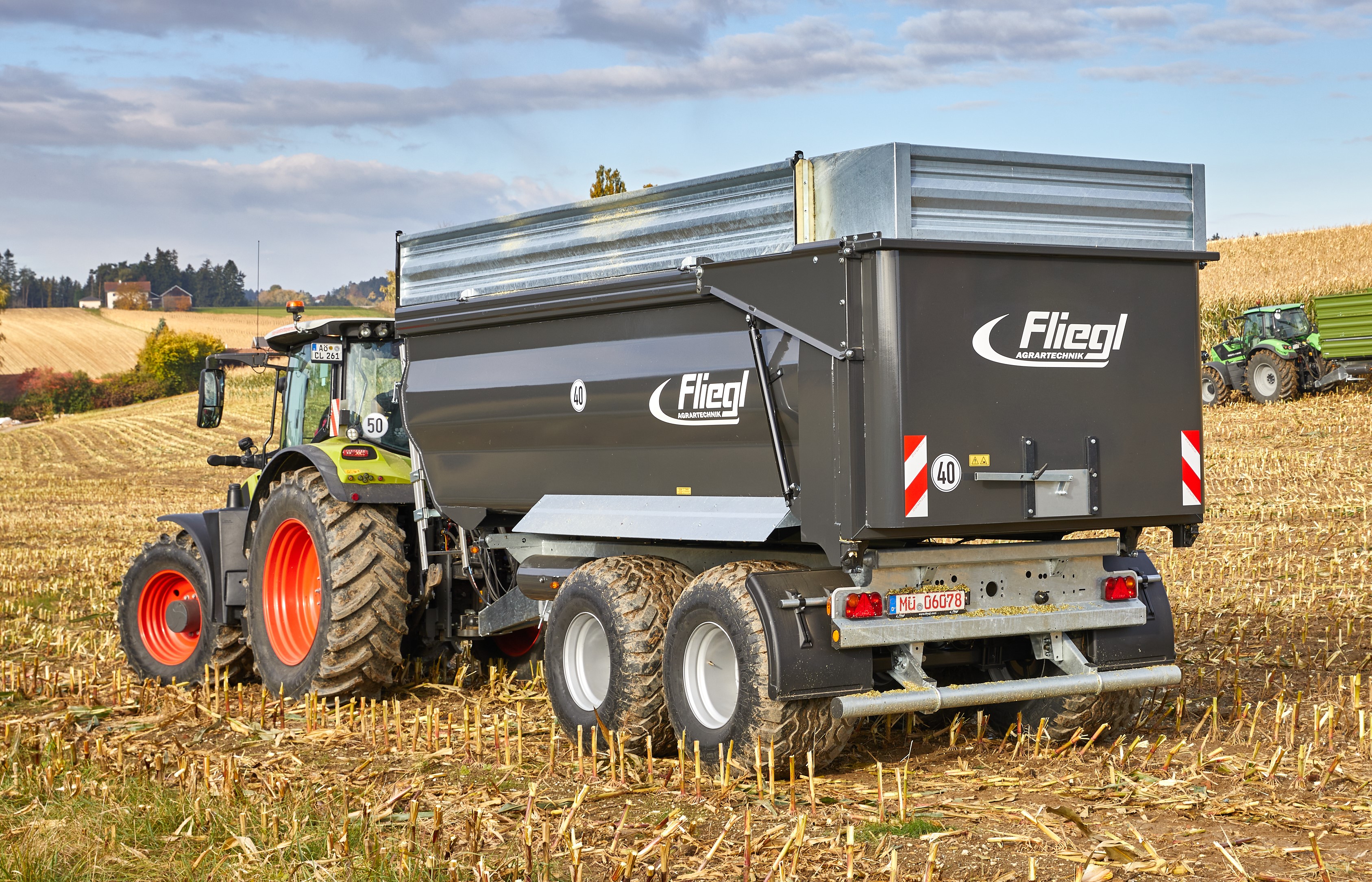

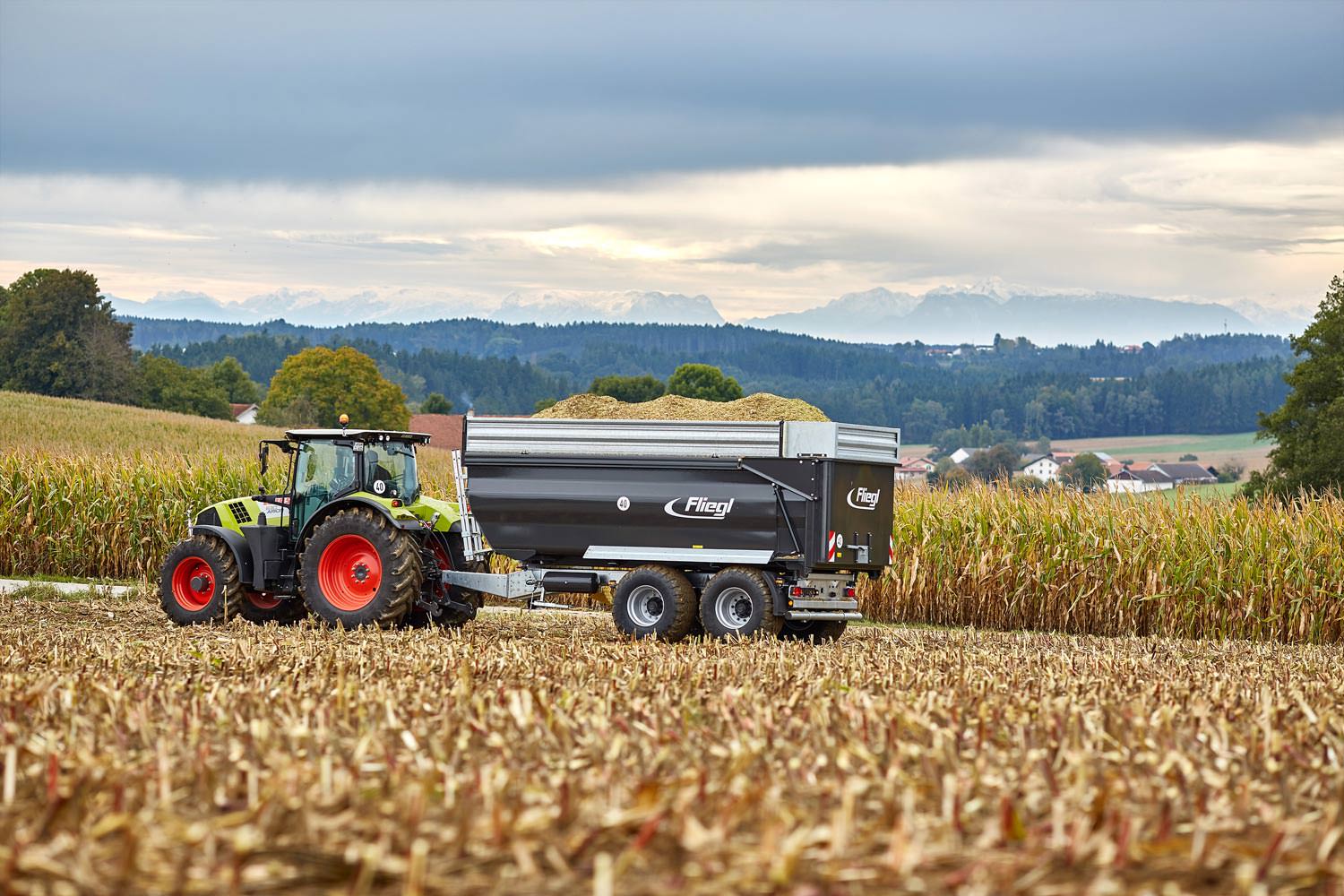

TMK 264 Fox
The TMK264 is a high performance dump trailer with a 29m3 capacity for silage, and features including 650/50 R22.5 tyres, trailed steering rear axle and hydraulic drawbar suspension for maximum towing comfort and maneuverability around the farm.
Further specs beyond the black edition paint colour include a fully galvanised steel chassis, hydraulic braked axles and parabolic leaf-sprung suspension mean the TMK264 is sure to make a statement and deliver on performance.
Key Features
- Tandem chassis
- Permitted total weight 21,000kg, drawbar load 3000kg
- Profi chassis frame, galvanised
- Trough 6400mm (total length with bulkhead bevel and 300mm tailgate) x 2320/2220mm (tapered) x 1500 mm, all-steel trough primed and 2-component coating, black, with front inspection window
- Hydraulic large-volume tailgate, 300mm depth with grain slide 400mm x 230mm
- Parabolic suspension, jumbo gigant assembly
- Hydraulic drawbar suspension, bottom hitch
- 50mm Ø pivoting tow eye
- Axle version 410 x 120, brake drums BPW
- Trailed steering: front axle rigid, rear axle trailed & hydraulically lockable.
- Tyres 650/50 R22.5, max. load capacity per wheel 7070kg at 40 km/h
- 40 km/h export version
- Mudguards, underride guard and side marker lights
- Mechanical folding support stand
- Tipping cylinder 2455mm with limit switch
- 12V lighting
- Stop valve
- 500mm galvanised steel silage extensions (not grain tight)
-
Standard
- Tandem chassis
- Permissible total weight 21,000kg, drawbar load 3000kg
- Fliegl Profi frame, galvanised
- Hydraulic drawbar suspension, bottom hitch
- Jumbo gigant parabolic suspension assembly
- 50mm Ø pivoting tow eye
- Axle version 410 x 120, brake drums BPW
- Trailing axle: front axle rigid, rear axle hydraulically lockable
- 40km/h version for export
- Mechanical folding support foot
- Tipping cylinder 2455mm with limit switch
- Stop valve
Optional
- Ball head K80 (Ø 80 mm)
- 40mm Ø tow eye
Optional For Indent Orders
- 2-circuit compressed air brakes with ALB
-
Standard
- Trough 6400mm (total length with beveled front wall and 300mm tailgate) x 2320/2220mm (Tapered) x 1500mm, all-steel trough primed and 2-component painted black with front inspection window
- Hydraulic large rear wall 300mm with grain slider 400mm x 230mm
- 500mm galvanised steel silage extensions (not grain tight)
Optional For Indent Orders
- 500mm body extensions with folding sides (not grain-tight)
- Rolling tarp and landing (possible only without body extensions)
- Speed/Cover rolling net: for load securing, can be operated hydraulically
- Pipe outlet with spout, removable
- Removable discharge chute
- Fall breaker for potatoes
-
Standard
- 12V LED lighting with 7-pin plug
- Mudguards
- Underride guard
- Side Markers Lights
Optional For Indent Orders
- Bridge support (secures the bridge during maintenance work)
- Spot lights front, white
- Reversing camera
- Monitoring camera
-
Standard
- Tyres 650/50 R22.5, max. load capacity per wheel 7070kg at 40 km/h
Optional For Indent Orders
- Tyres 710/45 R22.5 max. load per wheel approx. 6300kg at 40 km/h
