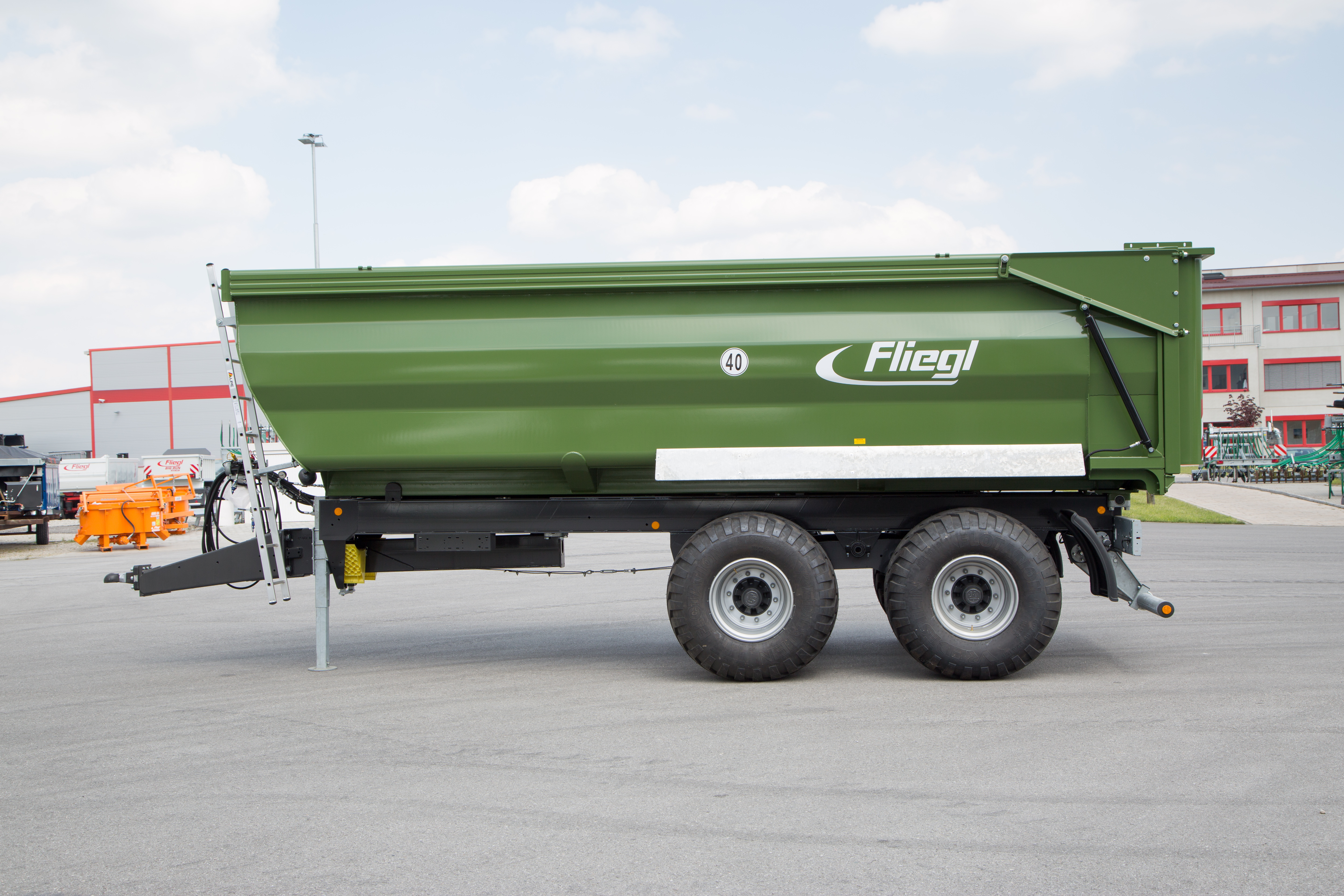

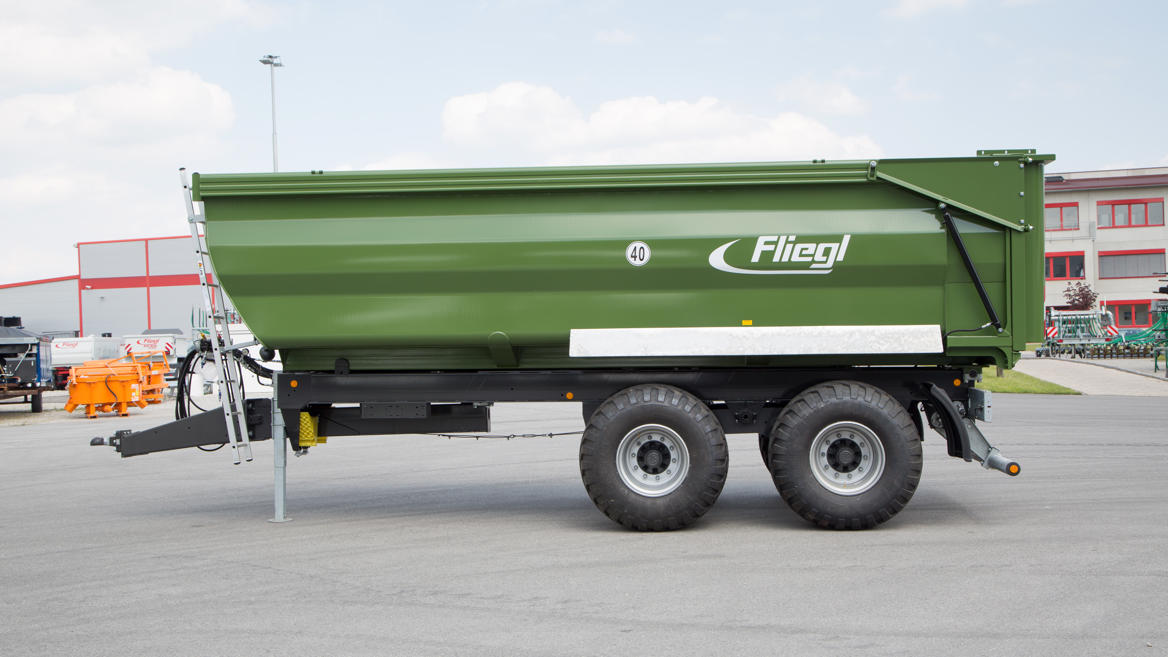

TMK 269 Fox Profi

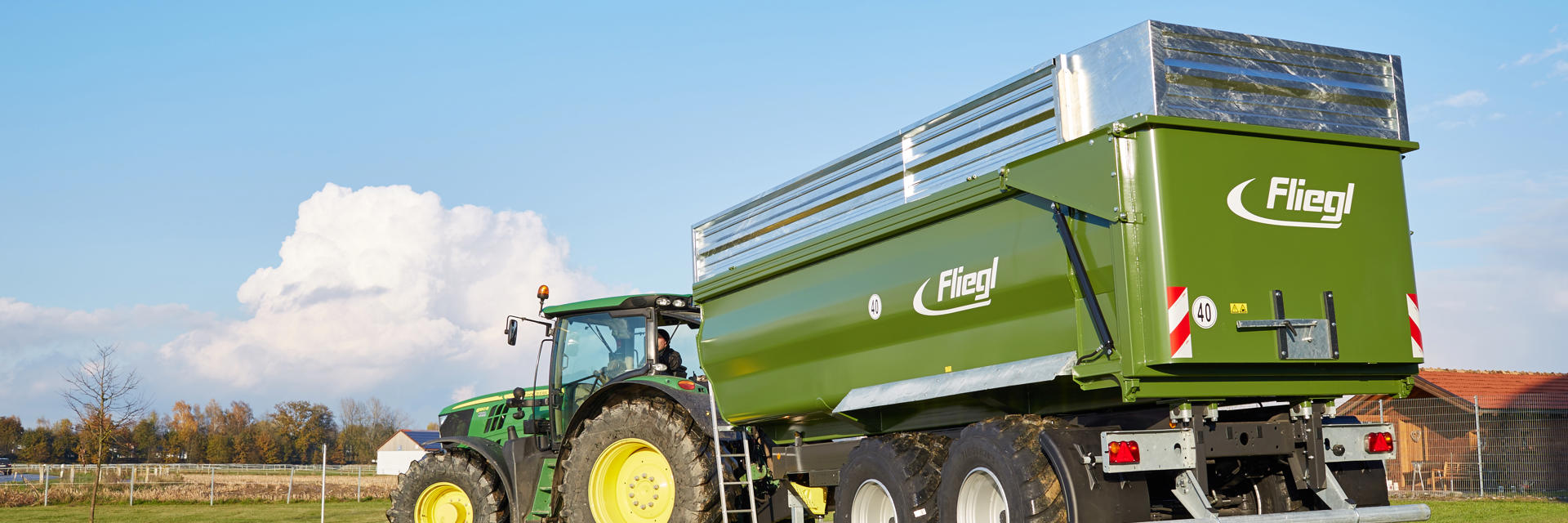

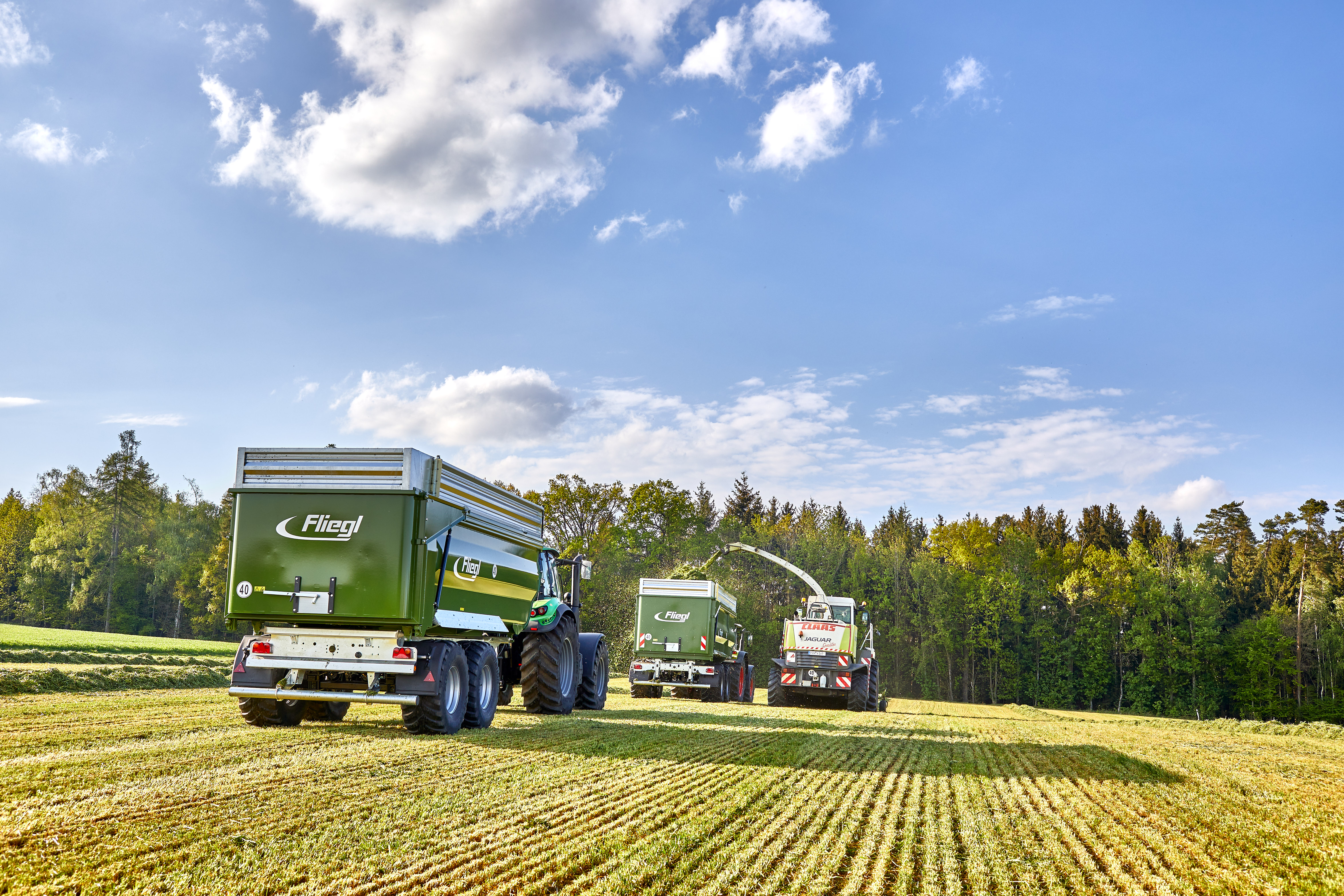

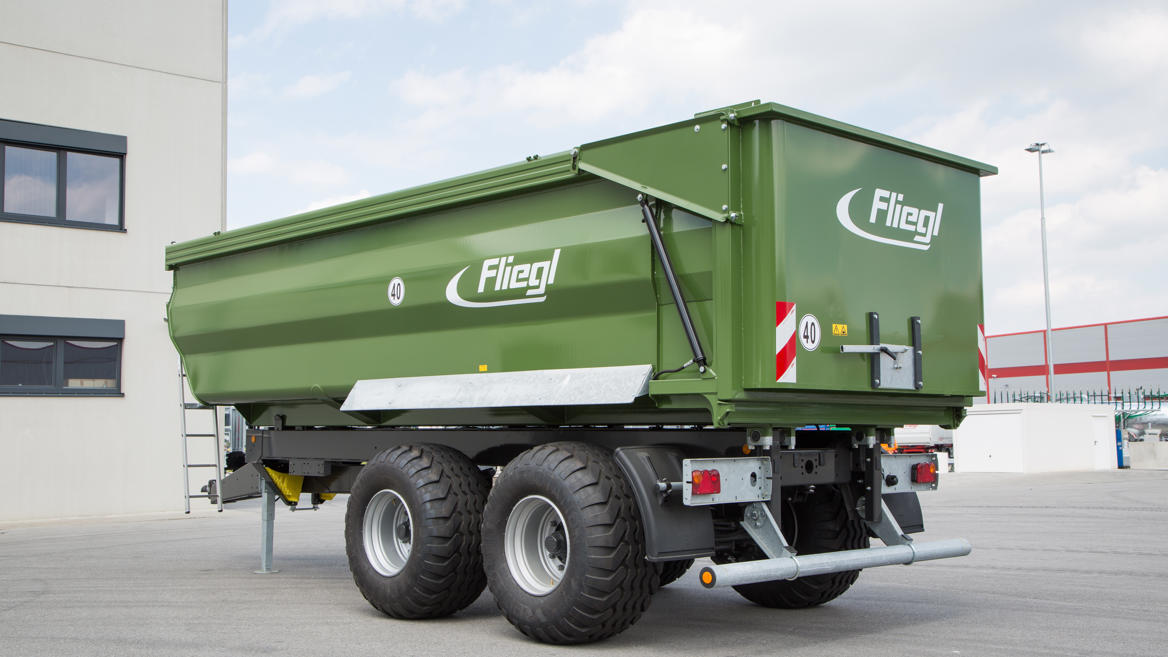

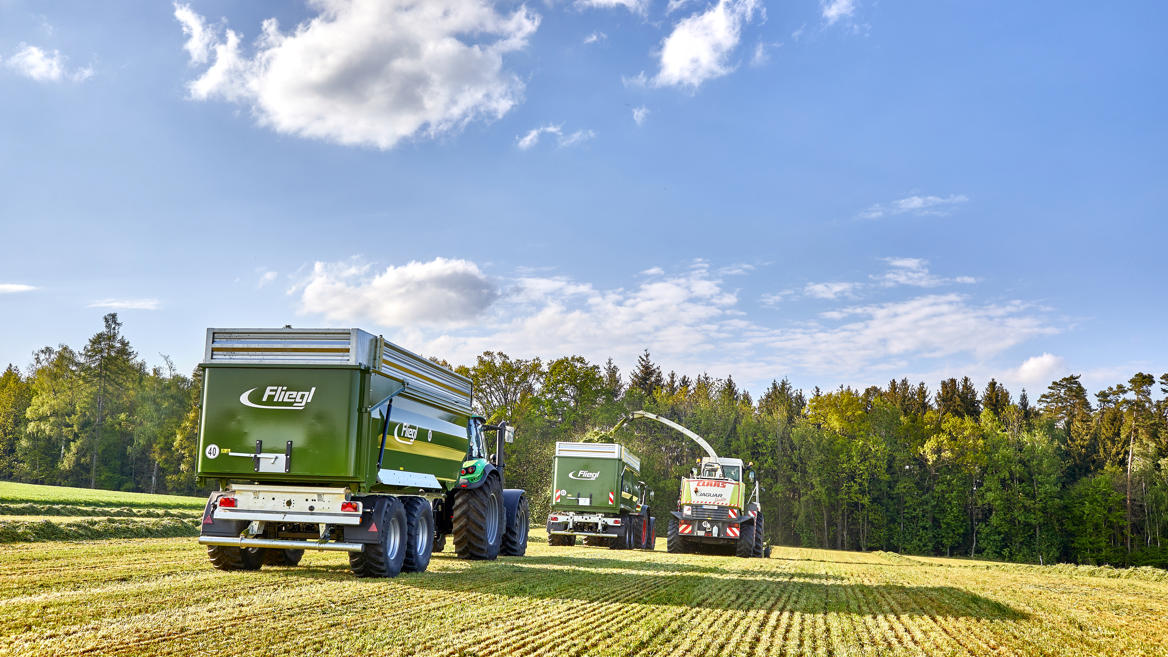

The TMK269 Fox Profi is produced with contractor-level work in mind, offering removable 500mm galvanised body extensions giving a 35m3 capacity for silage.
The galvanised wide-gauge chassis includes Fliegl's own Jumbo Gigant Plus parabolic suspension assembly, an axle-above spring setup enabling a very low center of gravity and lower overall trailer height.
Other standard features include hydraulic braked axles, mudguards, an underride guard and lights.
Key Features
- Tandem chassis
- Permitted total weight 20,000kg, drawbar load 2000kg
- Profi chassis frame, galvanised

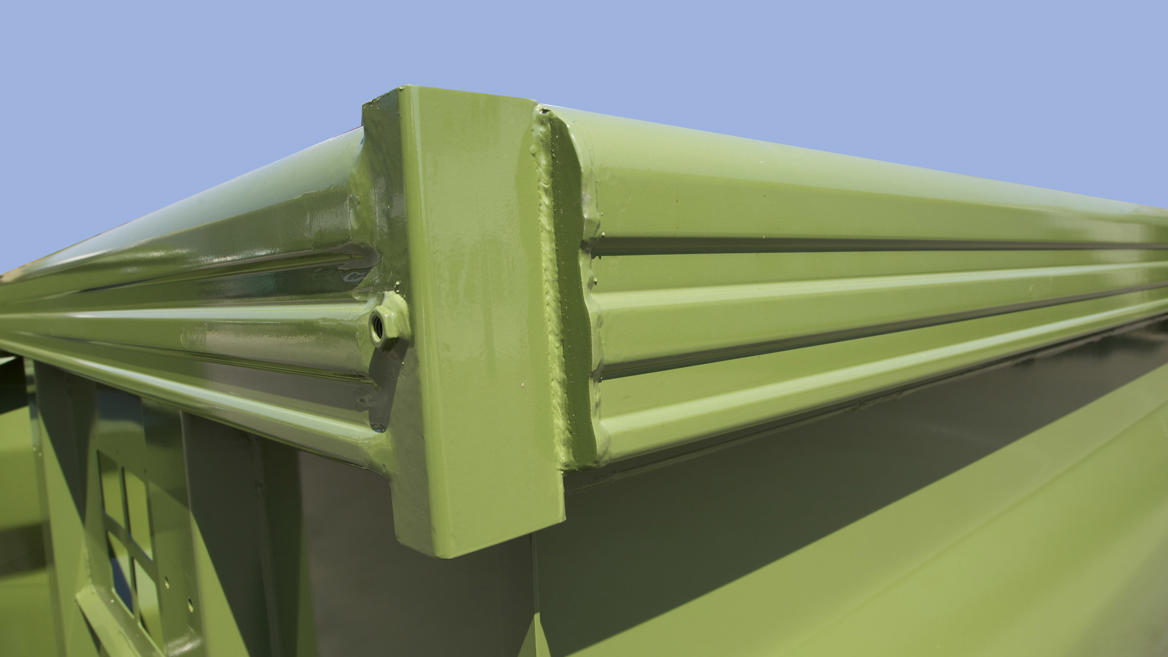

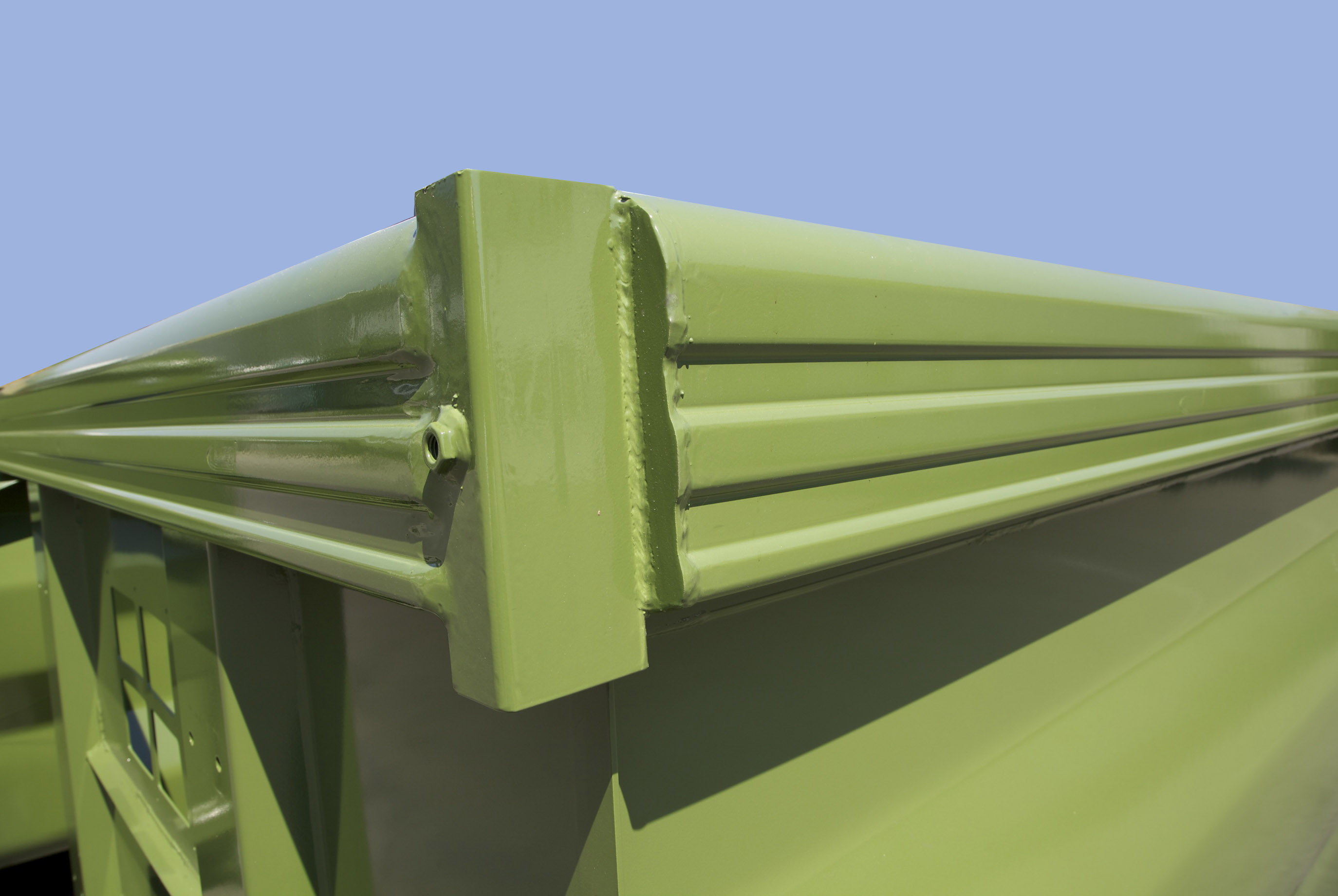

- Trough 6900mm (total length with bulkhead bevel and 300mm tailgate) x 2320/2220mm (tapered) x 1750 mm, all-steel trough primed and 2-component coating, dark green, with front inspection window
- Hydraulic high-capacity rear panel, 300mm depth with grain slide 400mm x 230mm
- Parabolic suspension, Jumbo Gigant Plus assembly
- Hydraulic drawbar suspension
- 50mm Ø pivoting tow eye
- Axle version 410 x 120, brake drums BPW
- 2 hydraulic brake axles, both rigid
- Tyres 560/60 R22.5, max. load capacity per wheel 6300kg at 40 km/h
- 40 km/h export version
- Mudguards, underride guard and side marker lights
- Folding support stand

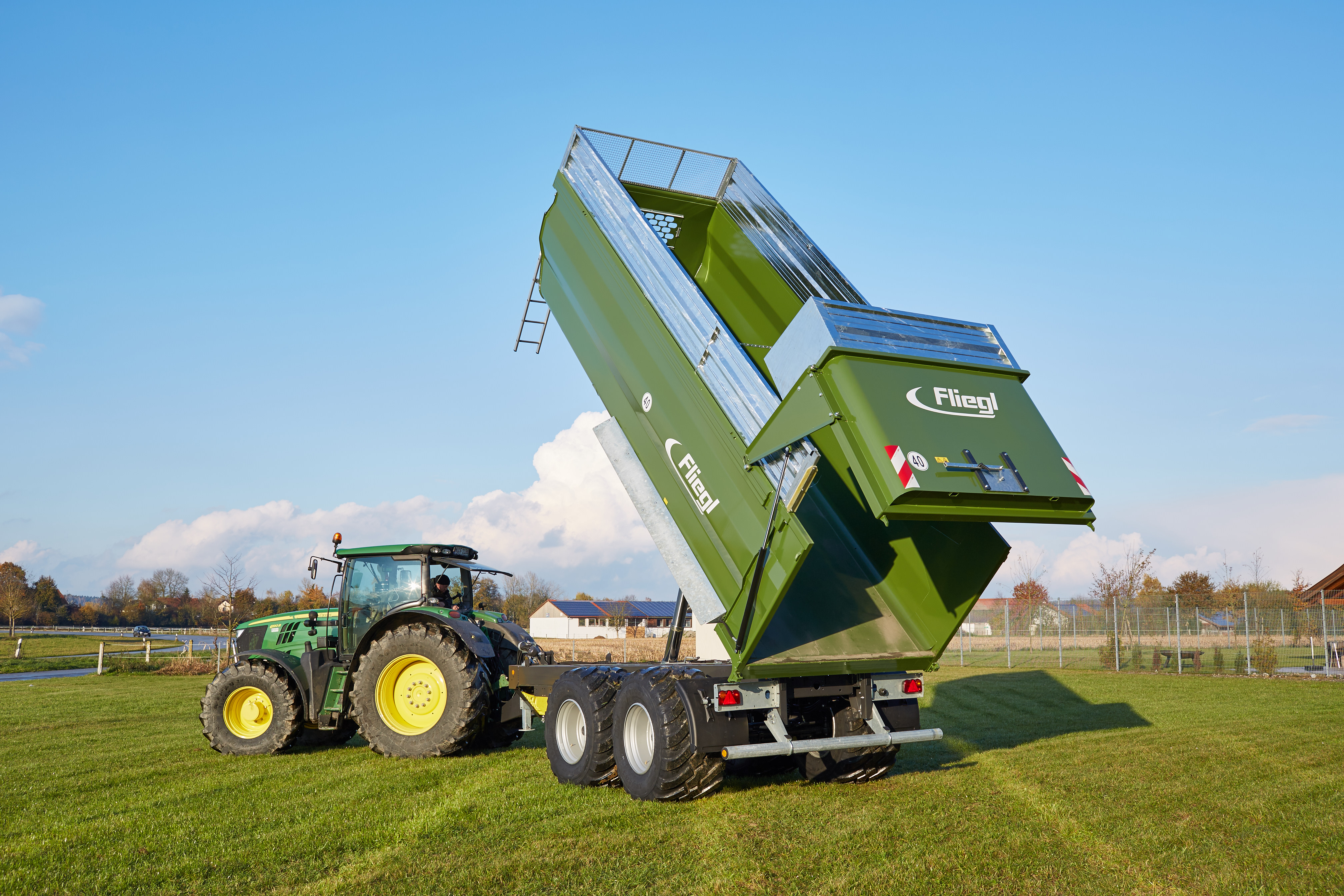

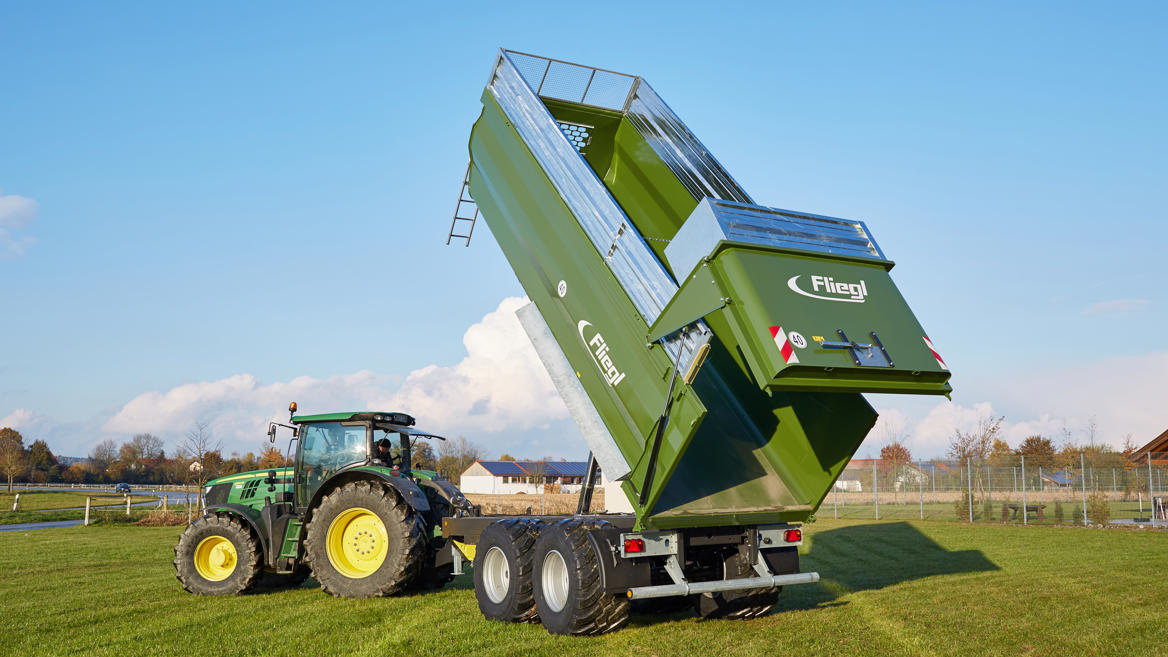

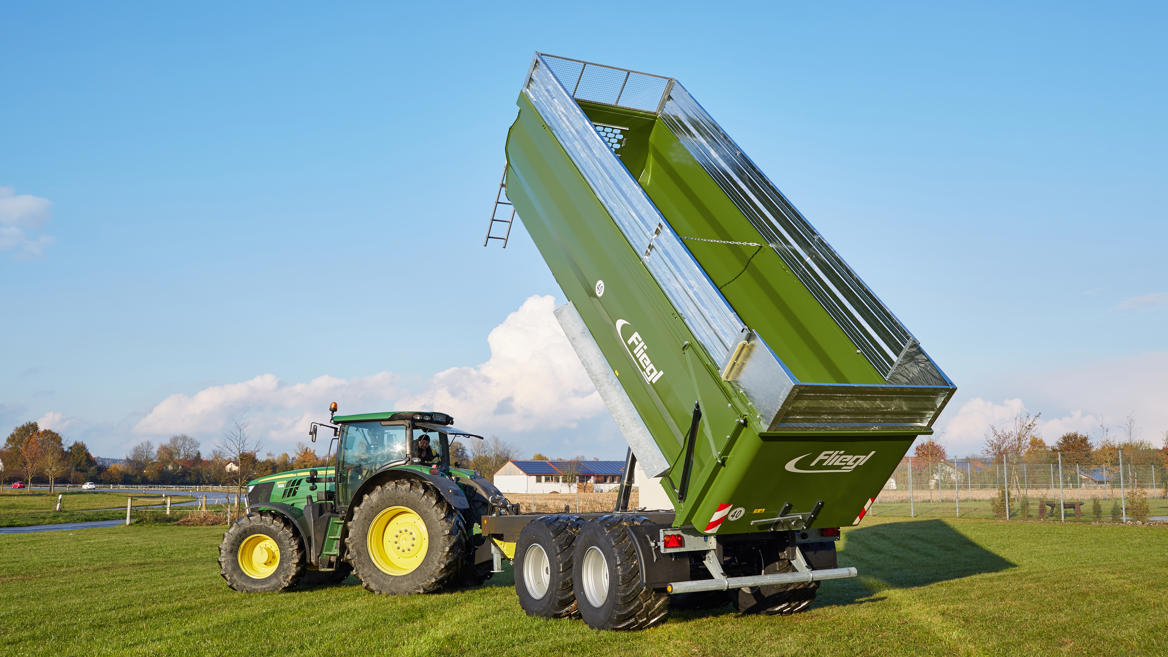

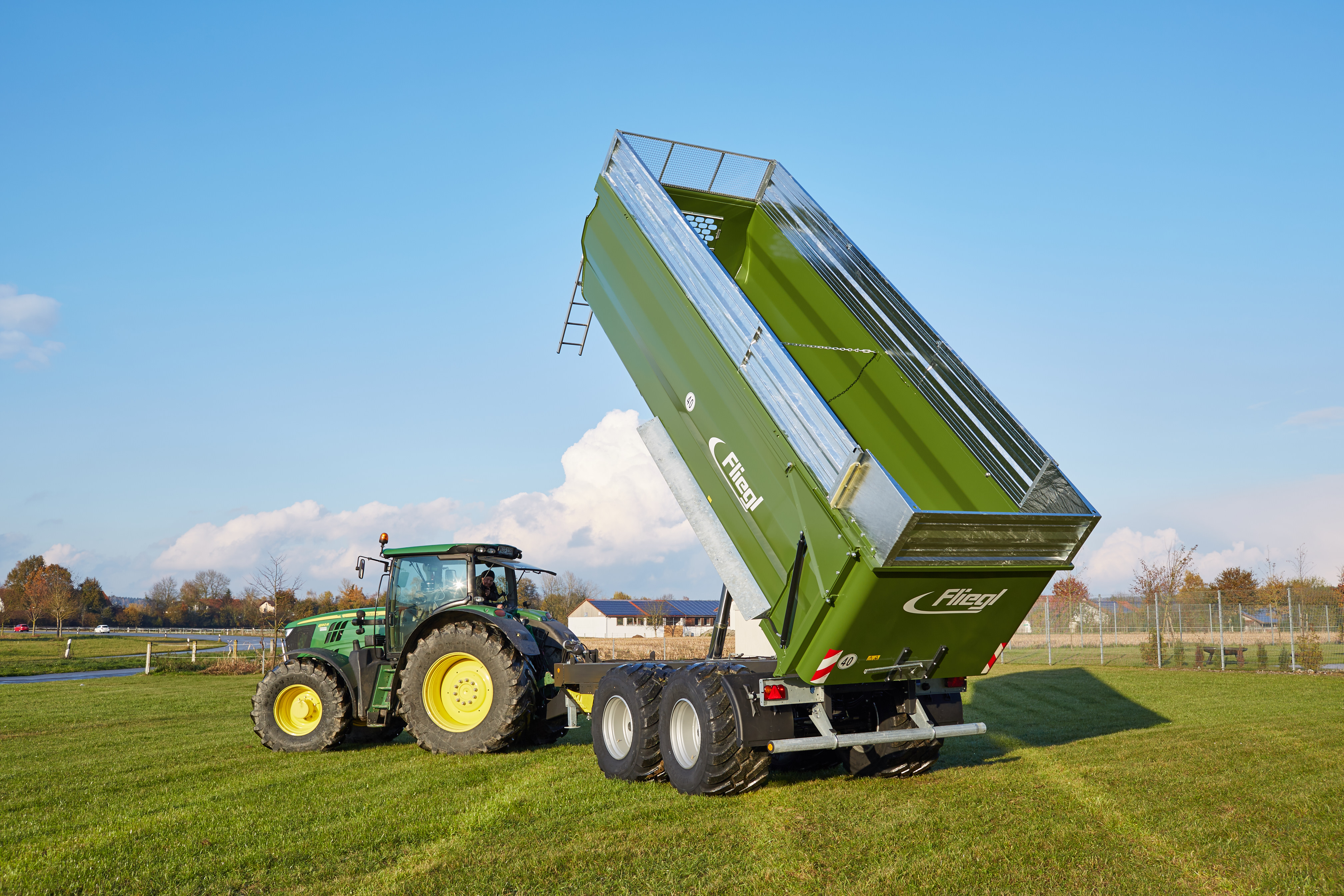

- Tipping cylinder 2535mm with limit switch
- LED lighting 12V with 7-pin connector
- Stop valve
- 500mm galvanised steel silage extensions (not grain tight)
-
Standard
- Permitted total weight 20,000kg, drawbar load 2,000kg
- Profi frame, galvanised
- Parabolic suspension, Jumbo Gigant Plus assembly
- Drawbar with hydraulic suspension, bottom hitch
- 50mm Ø pivoting tow eye
- Axle version 410 x 120, brake drums BPW
- 2 hydraulic brake axles, both rigid
- 40km/h version for export
- Tipping cylinder 2535mm with limit switch
- Stop valve
Optional
- Ball head K80 (Ø 80 mm)
- 40mm Ø tow eye
Optional For Indent Orders
- Permitted total weight 22,000 kg, drawbar load 4000 kg up to 40 km/h, note permitted drawbar load of the tractor (possible only with K80 ball head)
- Axle version 410 x 180, brake drums BPW
- 2 brake axles, front rigid, rear steered, hydraulic locking, up to 60 km/h (1 single-acting control unit required)
- Forced steering - 2 brake axles, front rigid, rear steered, track width 2050 mm or 2150 mm
- 2-circuit compressed air brakes with ALB
- Hydraulic support foot
-
Standard
- Trough 6900mm (total length with bulkhead bevel and 300mm tailgate) x 2320/2220mm (tapered) x 1750 mm, all-steel trough primed with 2-component coating dark green, with front inspection window
- Hydraulic high-capacity rear panel, 300 mm, with grain slide 400mm x 230mm
- 500mm galvanised steel silage extensions (not grain tight)
Optional For Indent Orders
- Trough 6900 mm (total length with bulkhead bevel and 300 mm back wall) x 2320/2220 mm x 1500 mm (tapered), all-steel trough primed with 2-component coating with front inspection window
- 500mm body extensions with folding sides (not grain-tight)
- Tarp frame with rolling tarp and landing (possible only without body extensions)
- Pipe outlet with spout, removable
- Removable discharge chute
- Fall breaker for potatoes
- Speed/Cover rolling net: for load securing, can be operated hydraulically
- Potatoe/beet chute at rear
-
Standard
- LED lighting 12V 7-pin connector
- Mudguards
- Underride guard
- Side Markers Lights
Optional For Indent Orders
- Bridge support (secures the bridge during maintenance work)
- Spot lights front, white
- Reversing camera
- Monitoring camera
-
Standard
- Tyres 560/60 R22.5, max. load capacity per wheel 6300kg at 40 km/h
Optional For Indent Orders
- Tyres 650/55-R26.5 max. load per wheel approx. 5940kg at 65 km/h, 7900kg at 40 km/h
- Tyres 710/50-R26.5 max. load per wheel approx. 6000kg at 65 km/h
